| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL300RCM |
| Additional Information | ENCLOSURE TYPE NEMA 3R/4X/12K |
| Amperage Rating | 400 A |
| Application | High Ampacity Connections |
| Approval | UL |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;HUBBELL[R] |
| Catalog Number | HBL300RCM |
| Commerce Sector | Construction Materials |
| Commodity Code | 51800 |
| Commodity Description | Miscellaneous Wiring Devices |
| Connection | Pressure Terminal Screws |
| Cord Type | Listed SC/PPC Type |
| CountryOfOrigin | CN |
| Current Amperage Rating | 400 A |
| Current Rating | 300 AMPERE |
| DDCATEGORY | 579 |

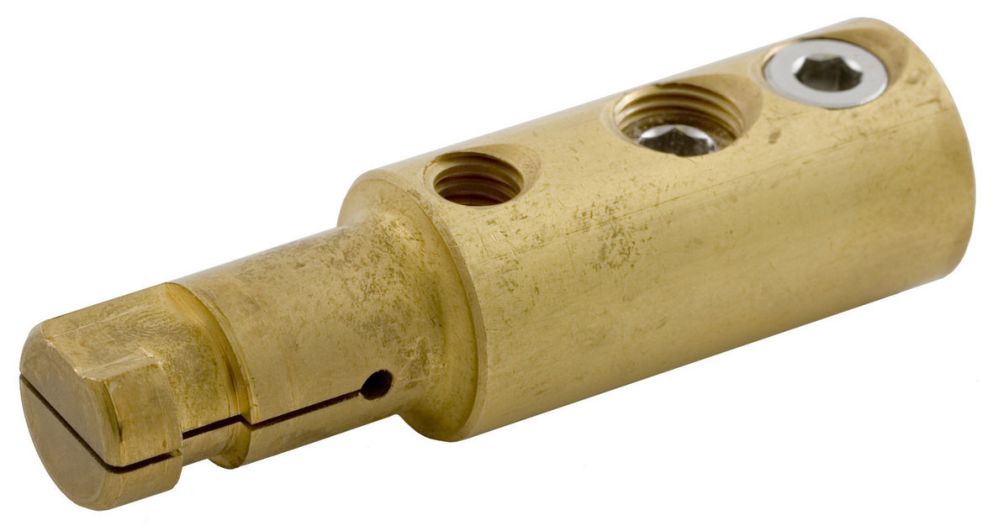

| Description Long | Heavy Duty Products, Single Pole Devices, Industrial Grade, Replacement Parts, Male Contact, For 300A 600V AC/DC, Single Conductor, Double Set Screws, Brass |
| Description Marketing Copy | Hubbell Wiring DeviceKellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. |
| Description Short | Heavy Duty Products, Single Pole Devices, Industrial Grade, Replacement Parts, Male Contact, For 300A 600V AC/DC, Single Conductor, Double Set Screws, Brass |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FV Current Amperage Rating | 400 A |
| FV Voltage Rating Description | 600V AC/DC |
| Families | 579 |
| Family Description | Miscellaneous Wiring Devices |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SINGLE POLE, REPL CONTACT, MALE 300A;300A REPL ML CONT |
| Item Number | 11217 |
| Long Description | REPLACEMENT CONTACT, MALE TYPE; UL APPROVAL; 300 AMPERE CURRENT RATING; HUBBELL[R] BRAND; ENCLOSURE TYPE NEMA 3R/4X/12K; HBL MODEL |
| MSDS Form Number | * |
| Material | Composite |
| Model | HBL |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 1 |
| Number Of Wires | 1 |
| Performance | Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of the device |
| Phase | 1 |
| Product Description | SINGLE POLE, REPL CONTACT, MALE 300A |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, Single Pole Devices, Industrial Grade, Replacement Parts, Male Contact, For 300A 600V AC/DC, Single Conductor, Double Set Screws |
| ProductLine | HUBW |
| Series | Series 16 |
| Size | Standard Sized |
| Special Features | Standard Product |
| Standard | UL 498 And UL1691 |
| Sub Brand | Single Pin |
| Type | Accessory;MALE |
| UNSPSC | 39121402 |
| UPC | 78358511217 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 AC, 250 DC Max V |
| Voltage Rating Description | 600V AC/DC |
| Wattage | 240,000 W |
| Wire Size | #2/0 AWG to #4/0 AWG |
