HUBW HBL30MIFRS

REP SWITCH 30A, FUSED DISCO/MECH INT

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
REP SWITCH 30A, FUSED DISCO/MECH INT

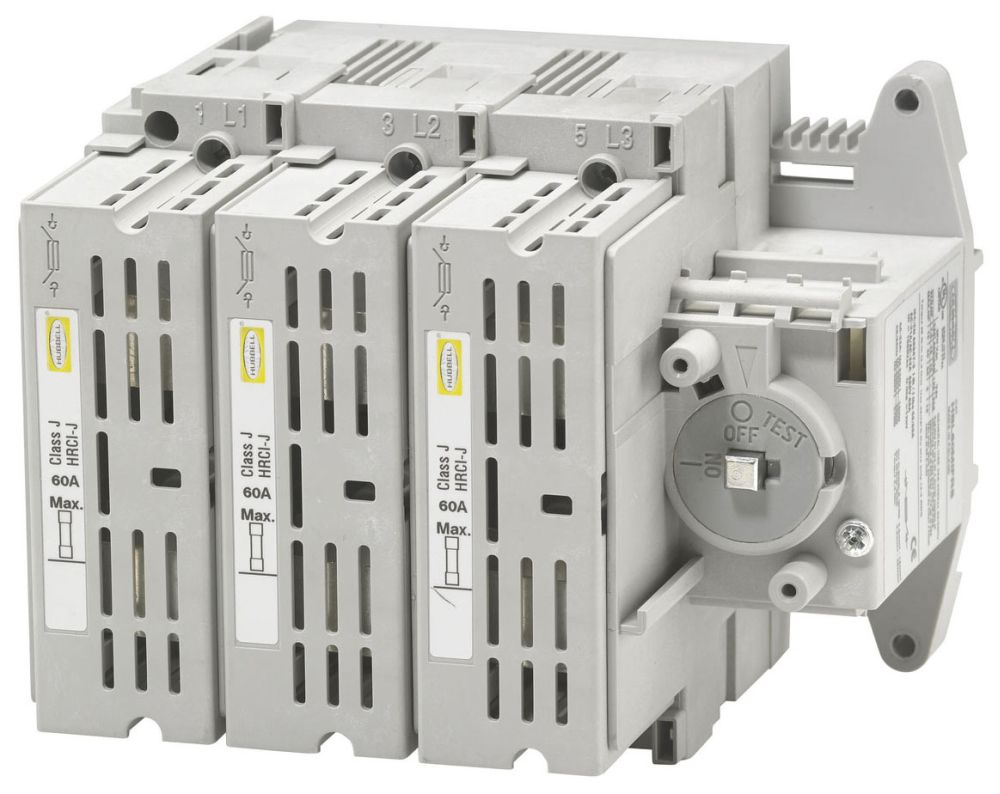

Mouse over image to zoom, click to enlarge

Description:
REP SWITCH 30A, FUSED DISCO/MECH INT

UPC:  78358515537

Part Number: HBL30MIFRS

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $1,667.00 / EA
Your Price:  $656.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL30MIFRS
Amperage Rating 30 A
Base Price 0.0000
CountryOfOrigin PL
Current Amperage Rating 30 A
Current Rating 30 A
DDCATEGORY 572
Description Long Motor Control, Replacement 30A Switch for Fused Disconnect or Mechanical Interlock
Description Marketing Copy "Fused Circuit-Lock Pin and Sleeve Mechanical Interlocks - Hubbell Circuit-Lock Pin and Sleeve mechanical Interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under loadHubbells interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the ""ON"" position. It features a high visibility red handle that can be locked in the OFF position to meet OSHA lockout/tagout regulations. The enclosure door can be locked to prevent unauthorized access. The rugged, corrosion-resistant Type 4X PBT enclosure features adjustable mounting feet for flexible installation, while the receptacles springloaded cover with gasket is dust tight and provides a watertight seal when turned and locked. The patented Plug-Check mechanism detects the presence of the plug. It operates as a clutch to engage the handle with the switch and captures the plug. This action prevents the plug from being removed until the switch is turned OFF."
Description Short Motor Control, Replacement 30A Switch for Fused Disconnect or Mechanical Interlock
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets Motor Control;Replacement 30A Switch for Fused Disconnect or Mechanical Interlock
FV Current Amperage Rating 30 A
Families 572
Family Description General Purpose Switches
InvoiceDescription REP SWITCH 30A, FUSED DISCO/MECH INT;FUSED REP SWITCH
Product Description REP SWITCH 30A, FUSED DISCO/MECH INT
Product Keywords WEBREADY
Product Name Motor Control, Replacement 30A Switch for Fused Disconnect or Mechanical Interlock
ProductLine HUBW
Series Fused
Standards RoHS Compliance Status CM
Type Accessories
UNSPSC 39122205
UPC 78358515537

Resources

CatalogNumber HBL30MIFRS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
