HUBW HBL30MISRS

REP SWITCH 30A,NONFUSED DISCO INSUL MECH

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
REP SWITCH 30A,NONFUSED DISCO INSUL MECH

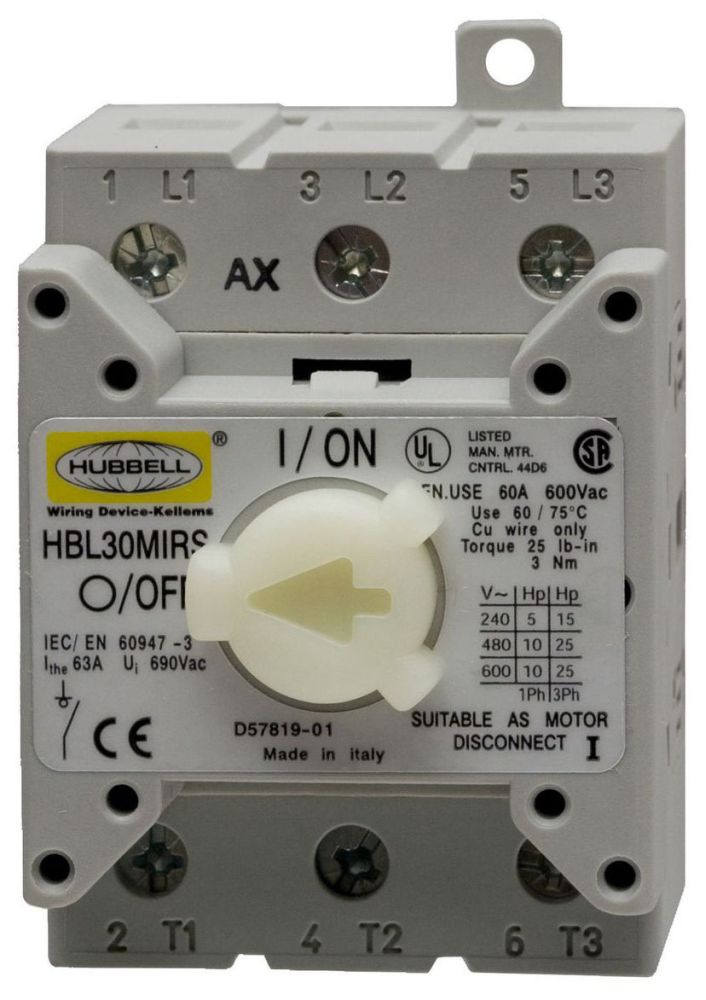

Mouse over image to zoom, click to enlarge

Description:
REP SWITCH 30A,NONFUSED DISCO INSUL MECH

UPC:  78358537268

Part Number: HBL30MISRS

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $951.00 / EA
Your Price:  $397.80 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL30MISRS
Amperage Rating 30 A
Base Price 0.0000
CountryOfOrigin PL
Current Amperage Rating 30 A
DDCATEGORY 572
Description Long Motor Control, Replacement 30A Switch for Non-Fused Disconnect or Mechanical Interlock
Description Marketing Copy Unfused Circuit-Lock Pin and Sleeve Mechanical Interlocks - The National Electrical Code (NEC) requires a separate disconnect means within sight of all motor loads. The NEC requires the disconnecting means in a motor-circuit be listed as Suitable as Motor Disconnect if the motor is rated greater than 2 HP. Hubbells revolutionary Circuit-Lock interlock incorporates the disconnect switch and receptacle in one compact, non-metallic and economical unit. Removing the plug and locking it out provides a visual means of verifying equipment has been disconnected. All Circuit-Lock mechanical interlocks can be locked out as a method of compliance with the OSHA Lockout/Tagout regulation. The switch cannot be turned ON until the plug is completely engaged, and the plug cannot be removed until the switch is turned OFF. At the same time, it eliminates the possibility of making or breaking the circuit under load or making a casual or lazy connection. The non-metallic enclosure can be connected to the metallic conduit and not interfere with the ground continuity. In addition, these horsepower rated units are durable, watertight and easy to install. And they are compatible with IEC 60309-2 plugs. These Circuit-Lock units are available in 20, 30, 60 and 100A models, and in 3, 4 and 5 wire configurations that are designed to the IEC 60309-1 and 60309-2 standards. Hubbells Circuit-Lock Mechanical Interlocks are also available in Reverse Service versions. These units incorporate the disconnect switch and reverse service receptacle (inlet) in one compact, non-metallic and economical unit. These units are available in 30, 60 and 100A models, 4 wire configurations.
Description Short Motor Control, Replacement 30A Switch for Non-Fused Disconnect or Mechanical Interlock
EU RoHS Indicator Contact Manufacturer
FEATURES Bullets Motor Control;Replacement 30A Switch for Non-Fused Disconnect or Mechanical Interlock
FV Current Amperage Rating 30 A
Families 572
Family Description General Purpose Switches
InvoiceDescription REP SWITCH 30A,NONFUSED DISCO INSUL MECH;30A REP SWITCH
Product Description REP SWITCH 30A,NONFUSED DISCO INSUL MECH
Product Keywords WEBREADY
Product Name Motor Control, Replacement 30A Switch for Non-Fused Disconnect or Mechanical Interlock
ProductLine HUBW
Series Unfused
Type Accessories
UNSPSC 39122205
UPC 78358537268

Resources

CatalogNumber HBL30MISRS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
