| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL3430G |
| Amperage Rating | 30 A |
| Application | Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R] |
| Catalog Number | HBL3430G |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | Non-NEMA Locking |
| Connection | Screw Terminal |
| Constructional Feature | Abuse Resistant, Corrosion Resistant |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Ampere |
| DDCATEGORY | 573 |
| Description Long | Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems;Face color coding by voltage facilitates locating and mating of proper devices;High-impact, abuse-resistant nylon face;Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 3 Phase 250 VAC |
| Face Outer Diameter | 1.57 Inch |
| Families | 573 |
| Family Color | Black |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG RCPT, 30A 3PH 250V, 3P4W;LKG RCPT-3P4W30A250V |
| Item Number | 33325 |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE LOCKING TYPE; THERMOSET MATERIAL; BLACK COLOR; NON-NEMA LOCKING CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 250 VAC VOLTAGE RATING; FLUSH MOUNT MOUNTING; 30 AMPERE CURRENT RATING; GROUNDING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Nylon;Thermoset |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL |
| Mounting | Screw Mount;Flush Mount |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4-Wire;4 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG RCPT, 30A 3PH 250V, 3P4W |
| Product Keywords | WEBREADY |

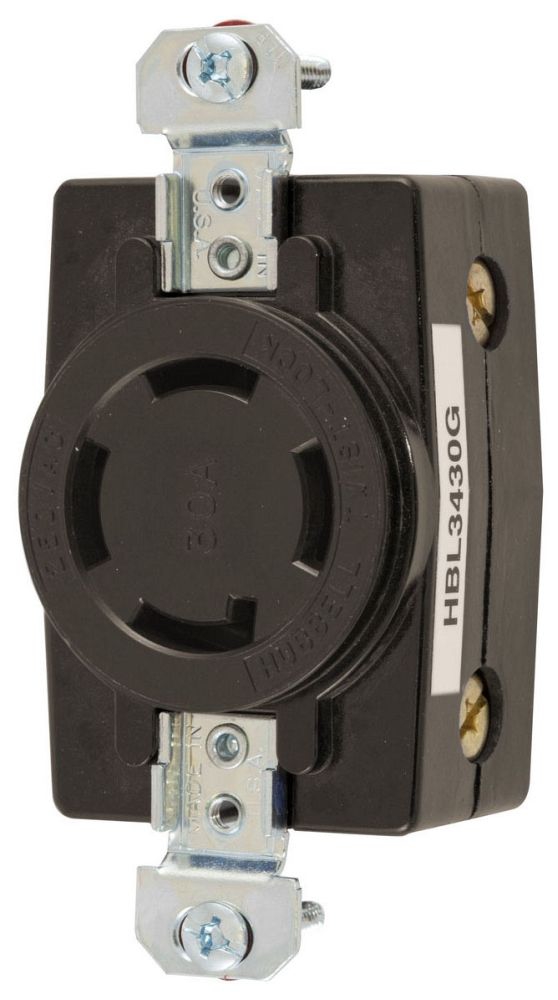

| Product Name | Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black |
| ProductLine | HUBW |
| Size | 3.61 in x 1.71 in x 1.36 in |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Type | Single Flush Receptacle;Single Locking |
| UNSPSC | 39121406 |
| UPC | 78358533325 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase 250 VAC;250 VAC |
| Voltage Rating Description | 3 Phase 250 VAC |
| Wattage | 7,500 W |
| Wire Size | #16 to #8 |
| Wiring | Back |
