| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL3523C |
| Additional Information | Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial |
| Amperage Rating | 20/10 A |
| Application | Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Cable Range | 0.350 - 1.150 in |
| Catalog Number | HBL3523C |
| Color | Black;White;Black/White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #14AWG to #12AWG |
| Configuration | Non-NEMA Locking |
| Connection | Pressure Screw Terminal |
| Constructional Feature | Impact/Chemical Resistant |
| Cord Diameter | 0.350-1.150 in |
| Cord Range | "0.350""-1.150"" (9-29)" |
| Cord Size | 0.35 to 1.15 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 20/10 A |
| Current Rating | 20 A;20 Amp at 250 V, 10 Amp at 600 VAC |
| DDCATEGORY | 574 |

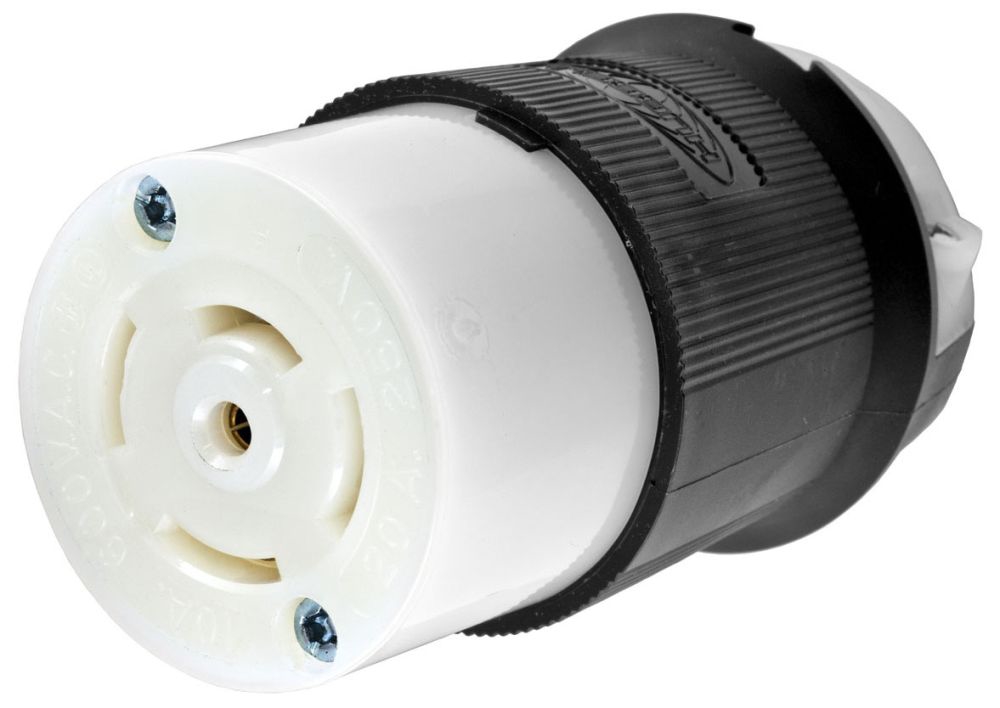

| Description Long | Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 20A 250V DC/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White Nylon. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 20A 250V DC/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Clear, funnel shaped wire entry for ease of termination.;Integral dust shield protects wiring chamber from dust or contaminants.;Ribbed nylon housing provides a secure grip and impact and chemical resistance.;Superior cord grip design protects terminations from excess strain. |
| FV Current Amperage Rating | 20/10 A |
| FV Voltage Rating Description | 250/600 VAC |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LKG CONN, 20A 250V/10A 600V, 4P5W;LKG CONN-5W20A250V |
| Item Number | 03992 |
| Long Description | LOCKING DEVICE CONNECTOR, NYLON MATERIAL; BLACK/WHITE COLOR; NON-NEMA LOCKING CONFIGURATION; 5 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 250/600 VOLT AC VOLTAGE RATING; 20 AMP AT 250 V, 10 AMP AT 600 VAC CURRENT RATING; GROUNDING |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 5 |
| Number Of Poles | 4-Pole;4 |
| Number Of Wires | 5 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Product Description | LKG CONN, 20A 250V/10A 600V, 4P5W |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 20A 250V DC/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal and White |
| ProductLine | HUBW |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358503992 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250/600;250/600 Volt AC |
| Voltage Rating Description | 250/600 VAC |
