| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL360CS1WR |
| Additional Information | AREA OF APPLICATION AGRICULTURE, CHEMICAL PROCESSING, CONSTRUCTION, ENTERTAINMENT, FOOD PROCESSING, FOOD SERVICE, LIGHT MANUFACTURING, MILITARY; ENCLOSURE IP67; ENCLOSURE NEMA 4X; OPERATING TEMPERATURE -40 TO 75 DEG C; PIN MATERIAL BRASS |
| Amperage Rating | 60 A |
| Application | Metallic with Nylon Shroud |
| Approval | UL 50, UL 62, UL 94V-0, UL 1682, UL 1686, CSA C22.2 |
| Brand Name | INSULGRIP[R] |
| Catalog Number | HBL360CS1WR |
| Color | Black;Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Conductor Range | #6 AWG to #4 AWG |
| Connection | Pressure Screw Terminal |
| Constructional Feature | IMPACT RESISTANT, WATER TIGHT |
| CountryOfOrigin | US |
| Current Amperage Rating | 60 A |
| Current Rating | 60 A;60 AMPERE |
| DDCATEGORY | 576 |
| Description Long | Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade Female Connector Body, 60A 600V AC, 2-Pole 3-Wire Grounding Style 1,Terminal Screws |
| Description Marketing Copy | Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. Whats more, Hubbells watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isnt the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices. |
| Description Short | InsulgripFemale Connector Body 60A Style 1 |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Pin chamber confines arcing within the interior chamber;Spring-Loaded, gasketed cover for dust-tight seal;Watertight neoprene sealing glands for reliable seal |
| FV Current Amperage Rating | 60 A |
| FV Voltage Rating Description | 600V AC/250V DC |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 1, SHELL |

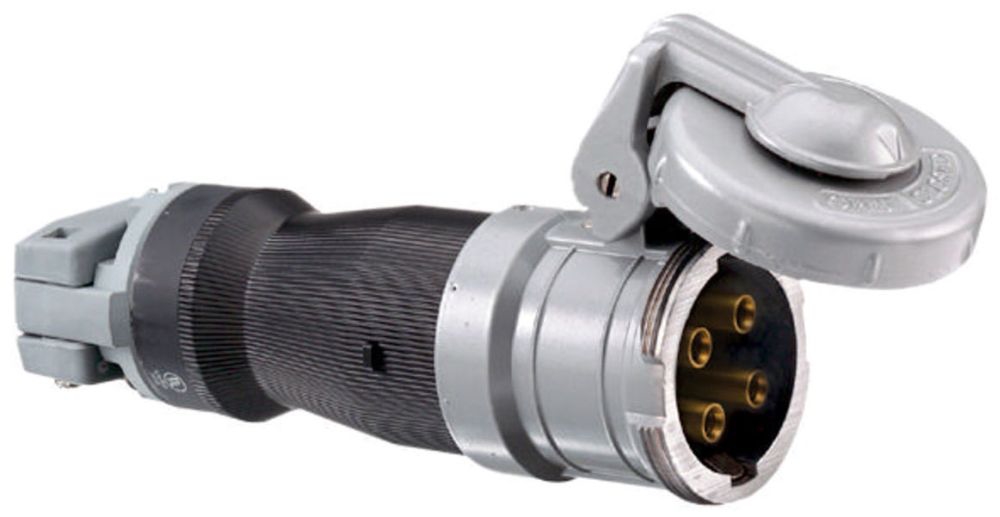

| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | PS, INS, CONN, 2P3W, 60A 600V, S1 REV;WT INSULGRIP CONN |
| Item Number | 01216 |
| Long Description | CONNECTOR, FAN, HEATER, POLARIZED, PUMP, REVERSE SERVICE TYPE; VALOX[R] 357 MATERIAL; 0.5 INCH MIN. CABLE OUTER DIAMETER; 1.45 INCH MAX. CABLE OUTER DIAMETER; 3 WIRE(S); UL 50, UL 62, UL 94V-0, UL 1682, UL 1686, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Composite;VALOX[R] 357 |
| Material Mounting Hardware | Cord Mounted |
| Maximum Cable Outer Diameter | 1.45 INCH |
| Minimum Cable Outer Diameter | 0.5 INCH |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 3-Wire Grounding Style 1 |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75C;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green);Min. -40C w/o impact -25 with impact |
| Product Description | PS, INS, CONN, 2P3W, 60A 600V, S1 REV |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 600V AC, Style 1 |
| ProductLine | HUBW |
| Series | UL 1686 Class 1 Insulgrip |
| Size | Standard |
| Special Features | Watertight |
| Standard | CSA Certified to CSA Spec. C22.2 No. 182.1;UL Listed and CSA Certified Type 4X;UL Standard 1682 |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Watertight Connector;FAN, HEATER, POLARIZED, PUMP, REVERSE SERVICE |
| UNSPSC | 39121421 |
| UPC | 78358501216 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 VAC/250;600 VAC/250 VDC |
| Voltage Rating Description | 600V AC/250V DC |
