| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL4100R9W |
| Additional Information | Applicable Standard IEC 60309-1 IEC 60309-2; Enclosure IP67; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 100 A |
| Application | High Ampacity Watertight Connections |
| Approval | UL 62/94/1682/1686C2, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 6 |
| Catalog Number | HBL4100R9W |
| Color | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Connection | Pressure Screw Terminals |
| Constructional Feature | Impact Resistant, Watertight, Corrosion Resistant, Chemical Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 100 A |
| Current Rating | 100 Ampere |
| DDCATEGORY | 576 |

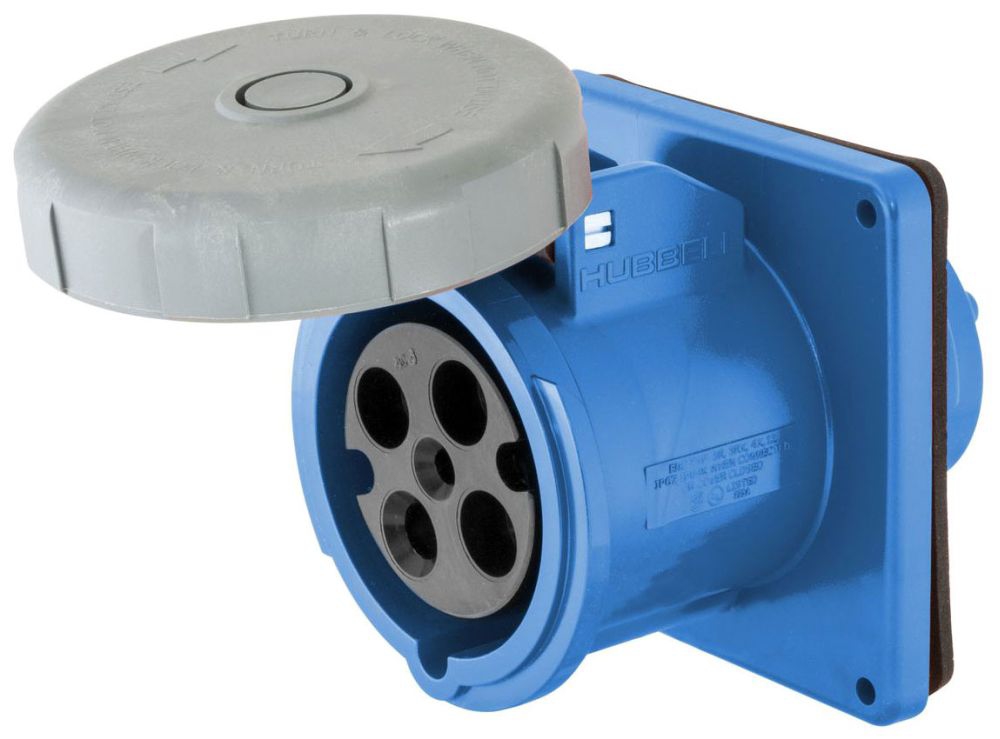

| Description Long | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight |
| Description Short | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Terminal Screws, Blue, Watertight |
| Directory | CIS |
| Door Type | Spring Cover |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Self-closing gasketed cover;Color coded housings for easy identification;Super tough insulated non-metallic housing |
| FV Current Amperage Rating | 100 A |
| FV Voltage Rating Description | 3 Phase 250 VAC |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grade | Industrial |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | RECPT, 3P4W, 100/125A 200-250V,4X/69K;RCPT-3P4W100A250V |
| Item Number | 40411 |
| Item Type | Single Flanged |
| Long Description | PIN AND SLEEVE RECEPTACLE, POLARIZED TYPE; ZYTEL 101 NYLON MATERIAL; 4 WIRE(S); INDUSTRIAL GRADE; UL 62/94/1682/1686C2, CSA C22.2 APPROVAL; 250 V 3-PHASE VOLTAGE RATING; 100 AMPERE CURRENT RATING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Thermoplastic;Zytel 101 Nylon |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75C;Minimum - 40C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions | |
| Phase | 3 |
| Product Description | RECPT, 3P4W, 100/125A 200-250V,4X/69K |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female Receptacle, 100A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Watertight |
| ProductLine | HUBW |
| Size | Standard Sized Product |
| Special Features | Watertight |
| Standard | Listed To Standard UL1682 |
| Sub Brand | IEC 309 Pin and Sleeve Devices |
| Type | Watertight Receptacle;Polarized |
| UNSPSC | 39121406 |
| UPC | 78358540411 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase 250 VAC;250 V 3-Phase |
| Voltage Rating Description | 3 Phase 250 VAC |
| Wattage | 25,000 |
| Wire Size | #3 AWG to #1/0 AWG |
