| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL415BK |
| Additional Information | Overall Dimension 4.30 Inch W x 0.92 Inch D; Contact Material 0.032 Inch Brass; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 15 A |
| Application | Industrial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | 4-PLEX[R] |
| Catalog Number | HBL415BK |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-15R |
| Connection | Screw Terminals |
| CountryOfOrigin | PR |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Ampere |
| DDCATEGORY | 573 |
| Description Long | Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Black, Single Pack. |
| Description Short | Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Black, Single Pack |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Anchor hole and loop feature secures solid wire for fast, easy terminations;Easily accessible break-off tabs for split wiring;Three conductors energize all four outlets;Triple wipe contacts |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Color | Black |
| Family Description | Receptacles & Surge Protectors |
| Grade | Specification |
| Ground Type | Grounding |
| Horsepower Maximum | 0.50 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 4-PLEX RCPT, 15A 125V, 5-15R, BK;RCPT 15A125V NMA5-15R |
| Item Number | 01449 |
| Long Description | QUAD RECEPTACLE, POLYCARBONATE MATERIAL; BLACK COLOR; 5-15R CONFIGURATION; 3 WIRE(S); SPECIFICATION GRADE; UL, CSA APPROVAL; 125 VAC VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 4-PLEX[R] BRAND |
| MSDS Form Number | * |
| Material | Polycarbonate |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Polycarbonate |
| Model | HBL415 |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 1440 |
| Performance | Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |

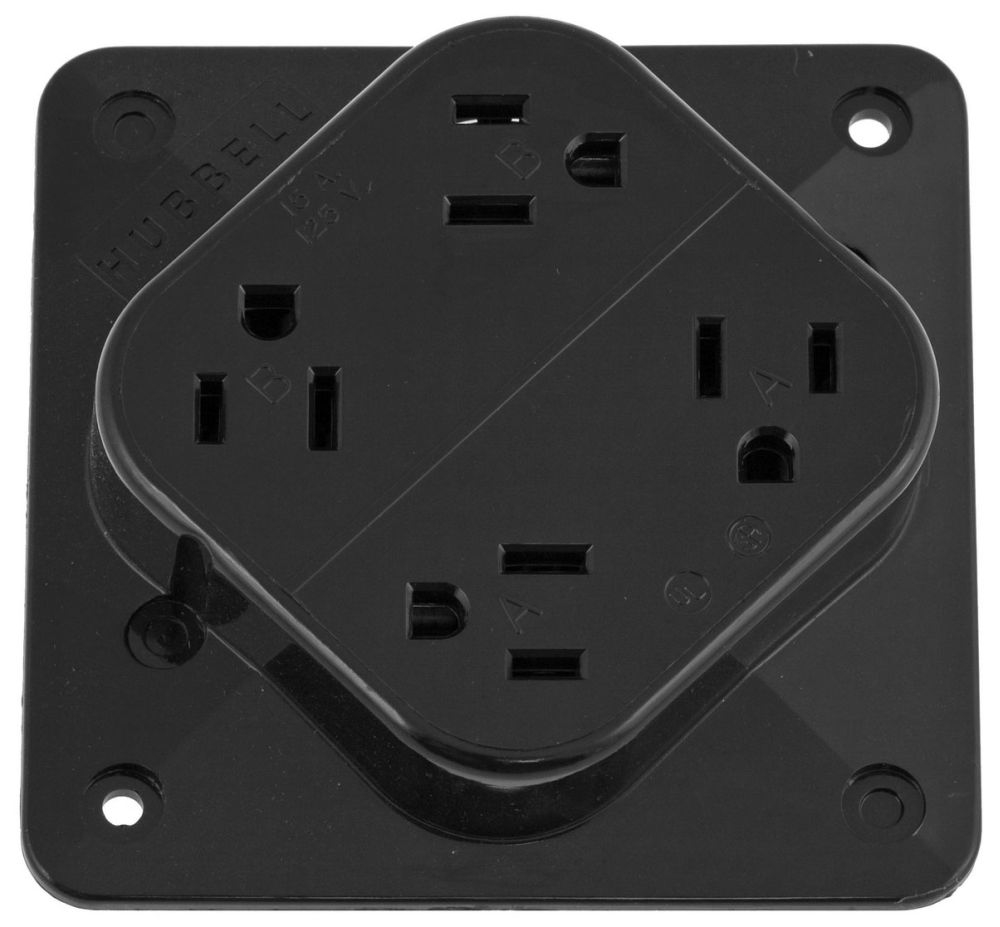

| Product Description | 4-PLEX RCPT, 15A 125V, 5-15R, BK |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Receptacles, 4- Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Black, Single Pack |
| ProductLine | HUBW |
| Series | 4-Outlet Receptacle |
| Size | 4.30 in x 0.92 in x 4.30 in |
| Special Features | 4 Receptacles in one |
| Standard | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA WD-6 Compliant |
| Type | 4-PLEX |
| UNSPSC | 39121406 |
| UPC | 78358501449 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 VAC |
| Voltage Rating Description | 125 V | |
| Wattage | 1875 W |
| Wire Size | #14 to #12 |
