HUBW HBL415I

4-PLEX RCPT, 15A 125V, 5-15R, IV

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
4-PLEX RCPT, 15A 125V, 5-15R, IV

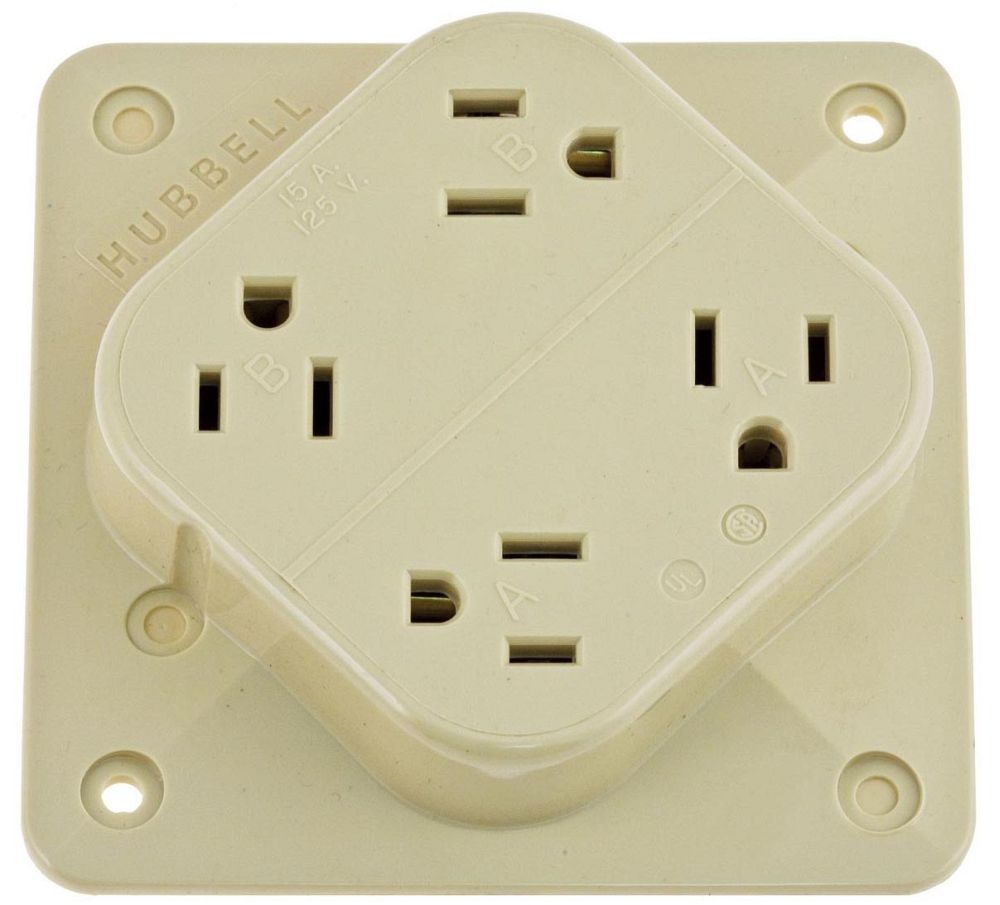

Mouse over image to zoom, click to enlarge

Description:
4-PLEX RCPT, 15A 125V, 5-15R, IV

UPC:  78358501377

Part Number: HBL415I

UNSPSC: 39121406

Status:  UNKNOWN

Retail Price:  $41.80 / EA
Your Price:  $25.67 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBL415I
Additional Information Overall Dimension 4.30 Inch W x 0.92 Inch D; Contact Material 0.032 Inch Brass; Operating Temperature -40 to 75 Deg C
Amperage Rating 15 A
Application Industrial
Approval UL, CSA
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems;4-PLEX[R]
Carton Quantity 5
Catalog Number HBL415I
Color Ivory
Commerce Sector Construction Materials
Commodity Code 51200
Commodity Description Receptacles & Surge Protectors
Configuration 5-15R
Connection Screw Terminals
CountryOfOrigin PR
Current Amperage Rating 15 A
Current Rating 15 A;15 Ampere
DDCATEGORY 573
Dielectric Strength Withstands 2,000V minimum
Directory CIS
EU RoHS Indicator Yes
Environmental Conditions Indoor Dry Unless Protected By Additional Means
FEATURES Bullets Anchor hole and loop feature secures solid wire for fast, easy terminations;Triple wipe contacts;Easily accessible break-off tabs for split wiring;Three conductors energize all four outlets
FV Current Amperage Rating 15 A
FV Voltage Rating Description 125 V
Families 573
Family Description Receptacles & Surge Protectors
Grade Specification
Ground Type Grounding
Horsepower Maximum 0.50
Image Location * Image
Industry ELX
InvoiceDescription 4-PLEX RCPT, 15A 125V, 5-15R, IV;RCPT 15A125V NEMA5-15R
Item Number 01377
Item Type 4-PLEX
Long Description QUAD RECEPTACLE, POLYCARBONATE MATERIAL; IVORY COLOR; 5-15R CONFIGURATION; 3 WIRE(S); SPECIFICATION GRADE; UL, CSA APPROVAL; 125 VAC VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 4-PLEX[R] BRAND
MSDS Form Number *
Material Polycarbonate
Material Mounting Hardware Screw Mounting
Model HBL415
Mounting Screw Mount
NEMA Rating 5-15R
Noun *
Number Of Poles 2
Number Of Wires 3
OEM Brand Name Hubbell Wiring Device-Kellems |
Performance Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Phase 1
Product Description 4-PLEX RCPT, 15A 125V, 5-15R, IV
Product Keywords WEBREADY
Product Name Electrical receptacles
ProductLine HUBW
Series 4-Outlet Receptacle
Size 4.30 in x 0.92 in x 4.30 in
Special Features Triple wipe contacts
Standard Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA WD-6 Compliant
Sub Brand Straight Blade Devices
Type 4-PLEX
UNSPSC 39121406
UPC 78358501377
Vendor Name HUBBELL WIRING DEVICE/KELLEMS
Vendor Number 783585
Vendor Short Name HUBW
Voltage Rating 125 V;125 VAC
Wattage 1,875 W
Wire Size #14 AWG to #12 AWG

Resources

CatalogNumber HBL415I
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
