| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL4200PS1W |
| Additional Information | Enclosure NEMA 3/4/4X; Temperature Rating -25 to 75 Deg C; Sleeve Material Brass |
| Amperage Rating | 200 A |
| Application | Metallic with Nylon Shroud |
| Approval | UL 50/1010/1682/1686, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Insulgrip[R] |
| Catalog Number | HBL4200PS1W |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Connection | Screwed Terminal |
| Constructional Feature | Impact Resistant, Watertight |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 200 A |
| Current Rating | 200 A;200 Ampere |
| DDCATEGORY | 576 |
| Decorative Color | Black |

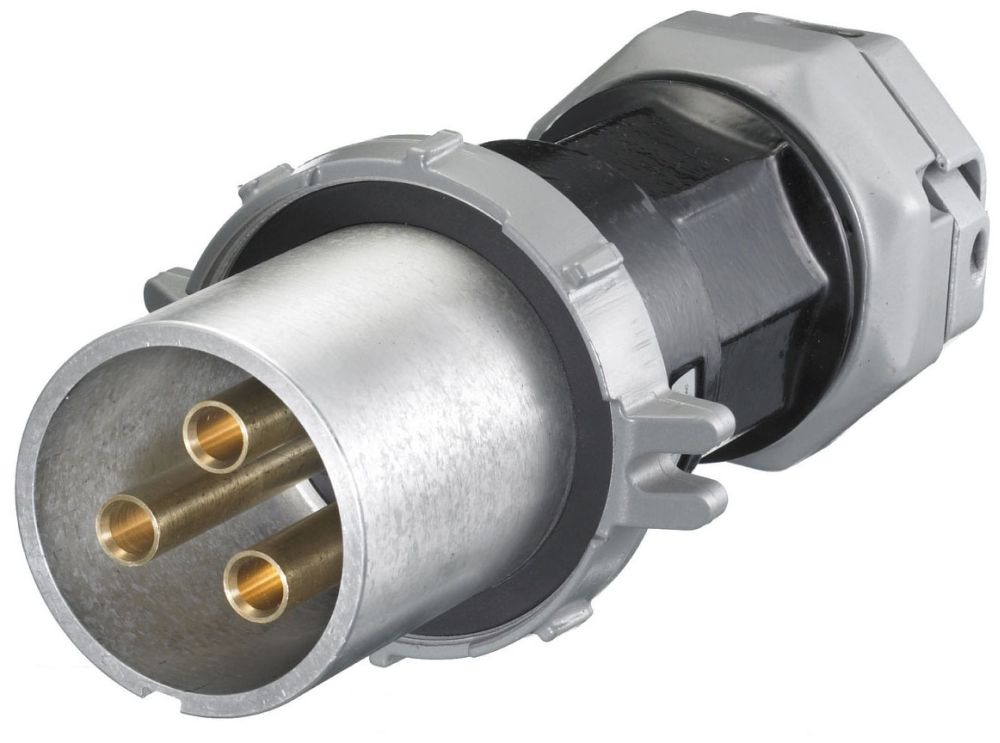

| Description Long | Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Plug, 200A 600V AC, 3-Pole 4- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight |
| Description Marketing Copy | Metallic where you want It, non-metallic where you need it. Different from traditional all-metallic devices, Hubbell Pin and Sleeve wiring devices are designed to provide metallic shrouding where you want it and a non-metallic housing where you need it. Whats more, Hubbells watertight Insulgrip Pin and Sleeve wiring devices are designed with safety first and foremost. We created the line with plant facility maintenance personnel and a safer industrial work environment in mind. To greatly reduce the likelihood of electrical shock, we developed our exclusive nonmetallic watertight system, meaning that with Hubbell on the job, the mix of electricity and water isnt the threat it once was. So, whether the job calls for a welding outlet in a dry location or a motor disconnect in a wet location, step up to Hubbell Pin and Sleeve wiring devices. |
| Description Short | Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Plug, 200A 600V AC, 3-Pole 4- Wire Grounding Style 1, Terminal Screws, Gray and Black, Watertight |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Watertight |
| FEATURES Bullets | All-Brass sleeve contacts provide reliable electrical contact;Catalog number and rating visible while in use;Locking ring provides UL Type 4X watertight, dust-tight seal |
| FV Current Amperage Rating | 200 A |
| FV Voltage Rating Description | 600V AC/250V DC |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 1, Shell |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PS, INS, PLUG, 3P4W, 200A 600V, S1;WT INSULGRIP PLUG |
| Item Number | 01142 |
| Long Description | PIN AND SLEEVE PLUG, POLARIZED TYPE; VALOX 357 ALUMINUM MATERIAL; 1 INCH MIN. CABLE OUTER DIAMETER; 2.5 INCH MAX. CABLE OUTER DIAMETER; 4 WIRE(S); UL 50/1010/1682/1686, CSA C22.2 APPROVAL; 600 VAC/250 VDC VOLTAGE RATING; 200 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Composite;Valox 357 Aluminum |
| Material Mounting Hardware | Cord Mounted |
| Maximum Cable Outer Diameter | 2.5 Inch |
| Minimum Cable Outer Diameter | 1 Inch |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 4-Wire;4 |
| Pallet Quantity | 98 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability (Enclosure) - UL 94V-0 and CSA C22.2 No. 0.17;Environmental - Moisture Resistance - Type 3, 4, 4X per UL 50E and CSA 22.2, No. 94;Environmental - Operating Temperatures - Max. Continuous 75C;Mechanical - Impact Resistance - Per CSA C22.2, No. 182.1, UL 1682;Mechanical - Product Identification - Identification and ratings are permanently fastened to the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with UL 1686(1, 2, 3, Green);Min. -40C w/o impact -25 with impact |
| Product Description | PS, INS, PLUG, 3P4W, 200A 600V, S1 |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Plug, 200A 600V AC, 3-Pole 4- Wire Grounding Style 1 , Watertight |
| ProductLine | HUBW |
| Series | UL 1686 Class 1 Insulgrip |
| Size | Standard Sized |
| Special Features | Watertight |
| Standard | CSA Certified to CSA Spec. C22.2 No. 159;UL Listed and CSA Certified Type 4X;UL Standard 1682,UL 50, and UL 1010 |
| Standards RoHS Compliance Status | CM |
| Type | Watertight Plug;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358501142 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 VAC/250;600 VAC/250 VDC |
| Voltage Rating Description | 600V AC/250V DC |
| Wire Size | #1 AWG to #250MCM |
