| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL420IS |
| Additional Information | Includes Indicating Light; Material Polycarbonate; Operating Temperature -40 to 75 Deg C |
| Amperage Rating | 20 A |
| Application | 4-Plex with LED |
| Approval | UL 498, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems;4-PLEX[R] |
| Carton Quantity | 5 |
| Catalog Number | HBL420IS |
| Class | Normal and Common Mode |
| Color | Ivory |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-20R |
| Connection | Terminal Screws |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Ampere |
| DDCATEGORY | 573 |

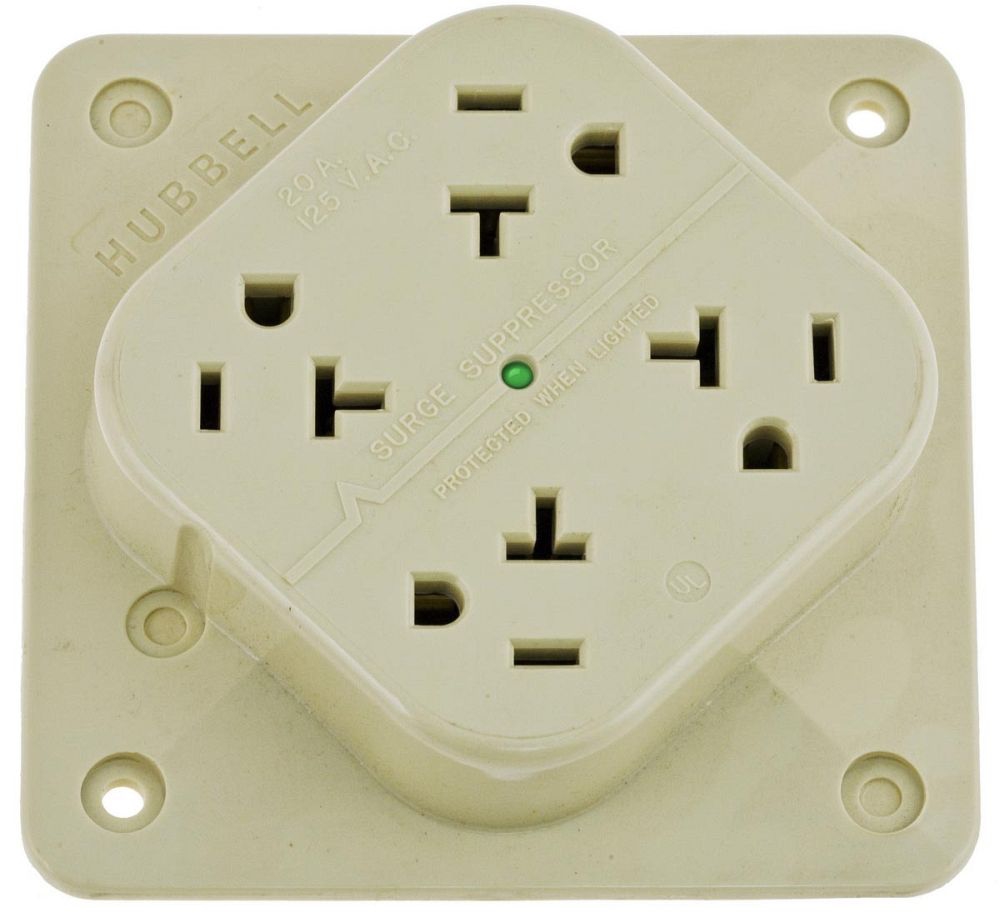

| Description Long | 4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R |
| Directory | CIS |
| EU RoHS Indicator | No |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Surge supression with lights, 80 joules/6500A per mode;Anchor hole and loop feature secures solid wire for fast, easy terminations;Triple wipe contacts;Easily accessible break-off tabs for split wiring;Three conductors energize all four outlets |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Frequency Rating | 60 Hz |
| Ground Type | Grounding |
| Horsepower Maximum | 1.00 |
| Image Location | * Image |
| Indicator S Type | LED Only |
| Industry | ELX |
| InvoiceDescription | 4-PLEX SPD RCPT,20A 125V, 5-20R IV;RCPT 20A125V NMA5-20R |
| Item Number | 01788 |
| Item Type | Surge Protection Receptacles |
| Long Description | SURGE SUPPRESSION RECEPTACLE, TVSS QUAD TYPE; IVORY COLOR; 5-20R CONFIGURATION; 3 WIRE(S); UL 498, CSA APPROVAL; 125 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 4-PLEX[R] BRAND; INCLUDES INDICATING LIGHT; MATERIAL POLYCARBONATE |
| MSDS Form Number | * |
| Material | Polycarbonate |
| Material Mounting Hardware | Mounting Screws |
| Model | HBL420 |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temperature | Maximum continuous 75C and minimum -40C without Impact |
| Outlet | Straight Blade |
| Performance | Electrical: Current Interrupting: Capable of withstanding a fault level of 1000A, per UL498;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification: Ratings are a permanent part of the device;Terminal Accommodation: #12 AWG stranded or solid copper conductor only;Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94 V-2;Operating Temperatures: Maximum continuous 75C;minimum -40C (w/o impact) |
| Phase | 1 |
| Product Description | 4-PLEX SPD RCPT,20A 125V, 5-20R IV |
| Product Keywords | WEBREADY |
| Product Name | Surge Protective Devices, 4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory. | |
| ProductLine | HUBW |
| Response Time | 5 |
| Series | 4-Outlet Receptacle |
| Size | 4.30 in x 0.92 in x 4.30 in |
| Special Features | Standard Product |
| Standard | Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186;NEMA WD-6 Compliant |
| Sub Brand | SpikeShield |
| Type | Surge Protection Receptacles;TVSS Quad |
| Type Of Indicators | LED Only |
| UNSPSC | 39121610 |
| UPC | 78358501788 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V |
