| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL4763 |
| Additional Information | Wire Size 18 to 10 AWG (Solid/stranded Copper); Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 15 A |
| Application | Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Brand Name | Twist-Lock[R] |
| Catalog Number | HBL4763 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L7-15R |
| Connection | Screw Terminal |
| Constructional Feature | Corrosion Resistant |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 573 |

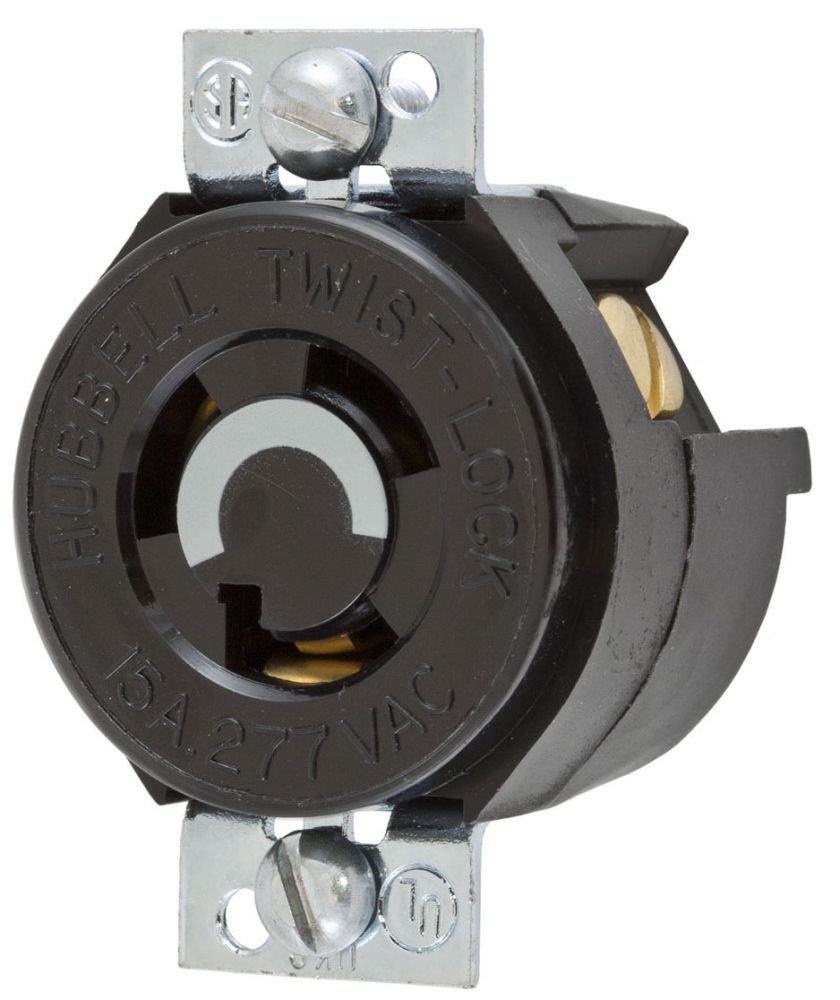

| Description Long | "Twist-Lock Industrial Panel Mount Single Receptacle, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15R, Screw Terminal, 1.75 "" or 1.937"" Mounting" |
| Description Short | "Twist-Lock Industrial Panel Mount Receptacle 15A 1.75 "" or 1.937"" Mounting" |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | All terminals are back and side wired;Brass mounting strap with stainless steel grounding clip;Reinforced thermoplastic construction;Single piece, all brass contacts |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 277 VAC |
| Face Outer Diameter | 1.38 Inch |
| Families | 573 |
| Family Color | Black |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG PANEL RCPT, 15A 277V, L7-15R, BK;LKG RCPT-NEMA L7-15R |
| Item Number | 23691 |
| Long Description | TWIST-LOCK RECEPTACLE, SINGLE TYPE; REINFORCED THERMOPLASTIC POLYESTER (FACE/TOP) MATERIAL; BLACK COLOR; L7-15R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 277 VOLT AC VOLTAGE RATING; PANEL MOUNTING; 15 AMP CURRENT RATING; GROUNDING; 2 POLE(S) |
| MSDS Form Number | * |
| Material | Reinforced Thermoplastic Polyester (Face/Top) |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic |
| Mounting | Screw Mount;Panel |
| NEMA Rating | L7-15R |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG PANEL RCPT, 15A 277V, L7-15R, BK |
| Product Keywords | WEBREADY |
| Product Name | "Locking Devices, Twist-Lock, Industrial, Panel Mount Receptacle, 15A 277V AC, L7-15R, Screw Terminal, 1.75 "" or 1.937"" Mounting" |
| ProductLine | HUBW |
| Size | 1.75 in x 1.42 in x 1.27 in |
| Special Features | Panel Mount |
| Standard | Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498 |
| Standards RoHS Compliance Status | CM |
| Type | Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358523691 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 277 VAC;277 Volt AC |
| Voltage Rating Description | 277 VAC |
| Wattage | 4,155 W |
| Wire Size | #18 to #10 |
| Wiring | Back, Side |
