| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL4792 |
| Additional Information | Material Reinforced Thermoplastic Polyester (Face/Base); Ground Type Grounding; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 15 A |
| Application | Heavy Duty |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS | |
| Brand Name | Hubbell Wiring Device-Kellems |
| Catalog Number | HBL4792 |
| Color | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 51600 |
| Commodity Description | Combination Devices |
| Connection | Screw Terminal |
| CountryOfOrigin | PR |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A |
| DDCATEGORY | 573 |

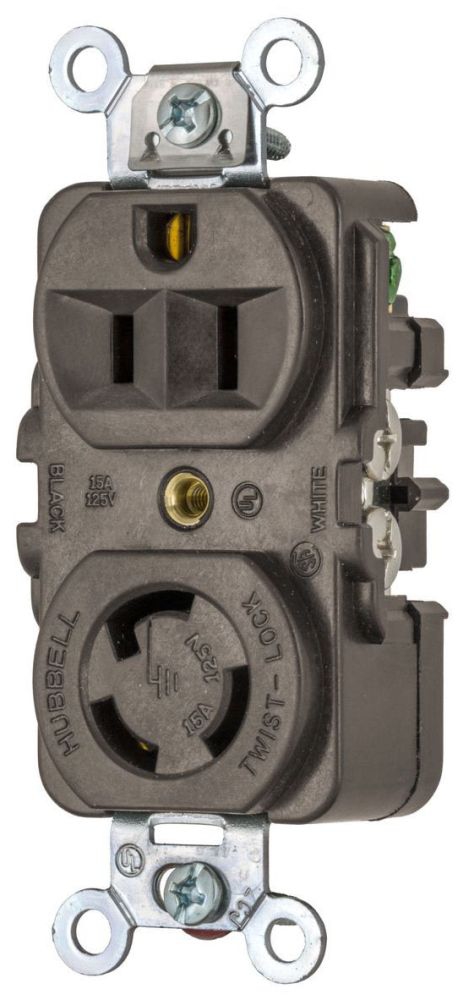

| Description Long | Twist-Lock Industrial Combination Face Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R and L5-15R, Screw Terminal, One Feed One Return |
| Description Short | Twist-Lock Industrial Combination Face Duplex Receptacle 15A, 1-Feed 1-Return |
| Device 1 | 125 V 15 Ampere 2-Pole 3-Wire Straight Blade, 5-15R |
| Device 2 | 125 V 15 Ampere 2-Pole 3-Wire Locking, L5-15R |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FV Current Amperage Rating | 15 A |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Horsepower Maximum | 0.5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG COMB DUP RCPT NEMA 5&L5-15R, 1H1N;GRD RCPT-NMA 5&L5-15R |
| Item Number | 23699 |
| Item Type | Combination Duplex Receptacles |
| Long Description | COMBINATION DUPLEX RECEPTACLE, BROWN COLOR; UL 498, CSA C22.2 APPROVAL; BACK, SIDE WIRING; 125 V 15 AMPERE 2-POLE 3-WIRE STRAIGHT BLADE, 5-15R DEVICE 1; 125 V 15 AMPERE 2-POLE 3-WIRE LOCKING, L5-15R DEVICE 2 |
| MSDS Form Number | * |
| Material | Thermoplastic |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R, L5-15R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2 or better;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | LKG COMB DUP RCPT NEMA 5&L5-15R, 1H1N |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | HUBW |
| Series | Special Combination Receptacle |
| Size | 3.28 in x 1.5 in x 0.88 in |
| Special Features | Standard |
| Standard | Certified to CSA, C22.2, No. 42 File 285;UL Listed to UL498 File E2186 |
| Sub Brand | Straight Blade Devices |
| Type | Duplex Receptacle |
| UNSPSC | 39121406 |
| UPC | 78358523699 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Wattage | 1,875 W |
| Wire Size | #14 AWG to #10 AWG |
| Wiring | Back, Side |
