| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5251I |
| Additional Information | Power Rating 0.5 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596, NEMA WD-6 |
| Amperage Rating | 15 A |
| Application | Heavy Duty |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;HBL[R] |
| Carton Quantity | 10 |
| Catalog Number | HBL5251I |
| Color | Ivory |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-15R |
| Connection | Side Wired Only |
| Constructional Feature | Impact Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 575 |

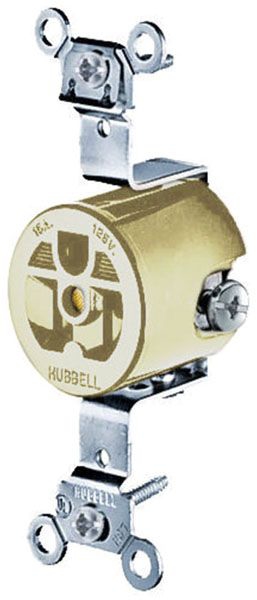

| Description Long | Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack. |
| Description Short | Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Slender/compact design;Triple wipe contacts |
| Families | 575 |
| Family Description | Wall Plates & Covers |
| Grade | Extra Heavy Duty Industrial, Slender/Compact |
| Ground Type | Grounding |
| Horsepower Maximum | 0.5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SGL RCPT, COMM/IND GRD,15A 125V 5-15R,IV;SGL RCPT NEMA5-15R |
| Item Number | 01412 |
| Item Type | Single |
| Long Description | SINGLE RECEPTACLE COVER, SINGLE TYPE; PBT MATERIAL; IVORY COLOR; 5-15R CONFIGURATION; 3 WIRE(S); EXTRA HEAVY DUTY INDUSTRIAL, SLENDER/COMPACT GRADE; UL 498, CSA C22.2 APPROVAL; 125 VOLT VOLTAGE RATING; 15 AMP CURRENT RATING; GROUNDING; 2 POLE(S) |
| MSDS Form Number | * |
| Material | Thermoplastic;PBT |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL5251 |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | SGL RCPT, COMM/IND GRD,15A 125V 5-15R,IV |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Ivory, Single Pack |
| ProductLine | HUBW |
| Size | 3.28 in x 1.39 in x 1.13 in |
| Special Features | Self Grounding |
| Standard | Certified to CSA 22.2, No. 42;Fed. Spec. WC596;NEMA WD-6 Compliant;UL Listed, File E2186 |
| Sub Brand | Straight Blade Devices |
| Type | Single Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358501412 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 Volt |
| Voltage Rating Description | 125 V |
| Wattage | 1,875 W |
| Wire Size | #14 AWG to #10 AWG |
| Wiring | Side |
