| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5252 |
| Additional Information | Power Rating 0.5 HP; Material Brass (Contact/Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-0; Applicable Standard Federal Specification WC-596G, NEMA WD-6 |
| Amperage Rating | 15 A |
| Application | Extra Heavy Duty Compact |
| Approval | UL 498, CSA C22.2 |
| Brand Name | HBL [R] |
| Catalog Number | HBL5252 |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Brown |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-15R |
| Connection | Back and Side Wired |
| Constructional Feature | Impact Resistant |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 573 |
| Description Long | Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack. |
| Description Short | Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Brass Mounting Strap;Slender/compact design;Triple wipe contacts |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Color | Brown |
| Family Description | Receptacles & Surge Protectors |
| Grade | Extra Heavy Duty Industrial, Slender/Compact |
| Ground Type | Grounding |
| Horsepower Maximum | 0.5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DUP RCPT, IND GRD, 15A 125V, 5-15R, BR;DPLX RCPT NEMA5-15R |
| Item Number | 43484 |
| Long Description | STRAIGHT BLADE DUPLEX RECEPTACLE, DUPLEX TYPE; NYLON (FACE), REINFORCED THERMOPLASTIC POLYESTER (BASE) MATERIAL; BROWN COLOR; 5-15R CONFIGURATION; 3 WIRE(S); EXTRA HEAVY DUTY INDUSTRIAL, SLENDER/COMPACT GRADE; UL 498, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Nylon (Face), Reinforced Thermoplastic Polyester (Base) |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic/Composite |
| Model | HBL5252 |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 3600 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | DUP RCPT, IND GRD, 15A 125V, 5-15R, BR |
| Product Keywords | WEBREADY |

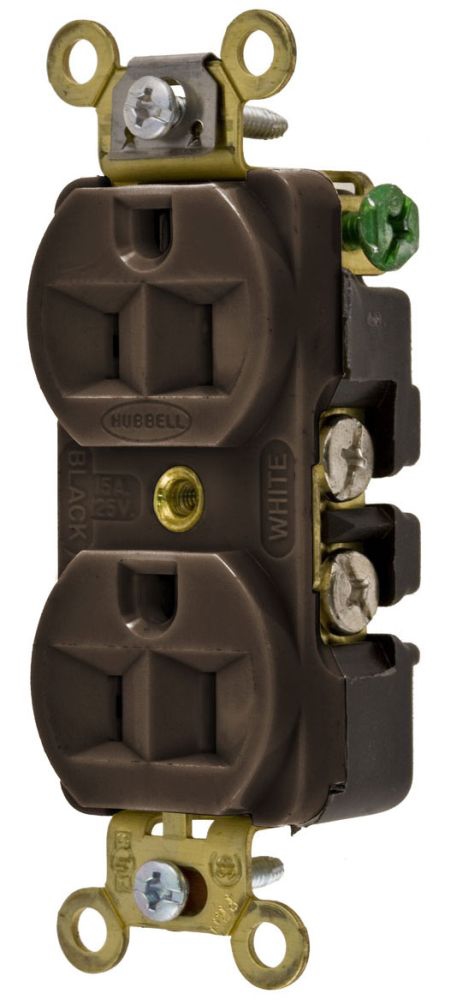

| Product Name | Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack |
| ProductLine | HUBW |
| Related Links List | "Modify Receptacle" |
| Series | Heavy Duty |
| Size | 3.28 in x 1.33 in x 1.05 in | |
| Special Features | Compact design and Self Grounding |
| Standard | Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C596G;NEMA WD-6 Compliant;UL Listed to UL498 File No. E2186 |
| Type | Standard Duplex;Duplex |
| UNSPSC | 39121406 |
| UPC | 78358543484 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 VAC;125 Volt |
| Wattage | 1875 W |
| Wire Size | #14 to #10 |
| Wiring | Back, Side |
