| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5266CAT |
| Additional Information | Blade Material 0.06 Inch Brass; Enclosure IP20; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial Grade |
| Approval | UL 498, CSA C22.2, FSUL |
| Base Price | 0.0000 |
| Brand Name | Insulgrip[R] |
| Catalog Number | HBL5266CAT |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Transparent |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | 5-15P |
| Connection | Screwed Terminal |
| Cord Size | 0.325 to 0.655 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Ampere |
| DDCATEGORY | 574 |
| Decorative Color | Clear |

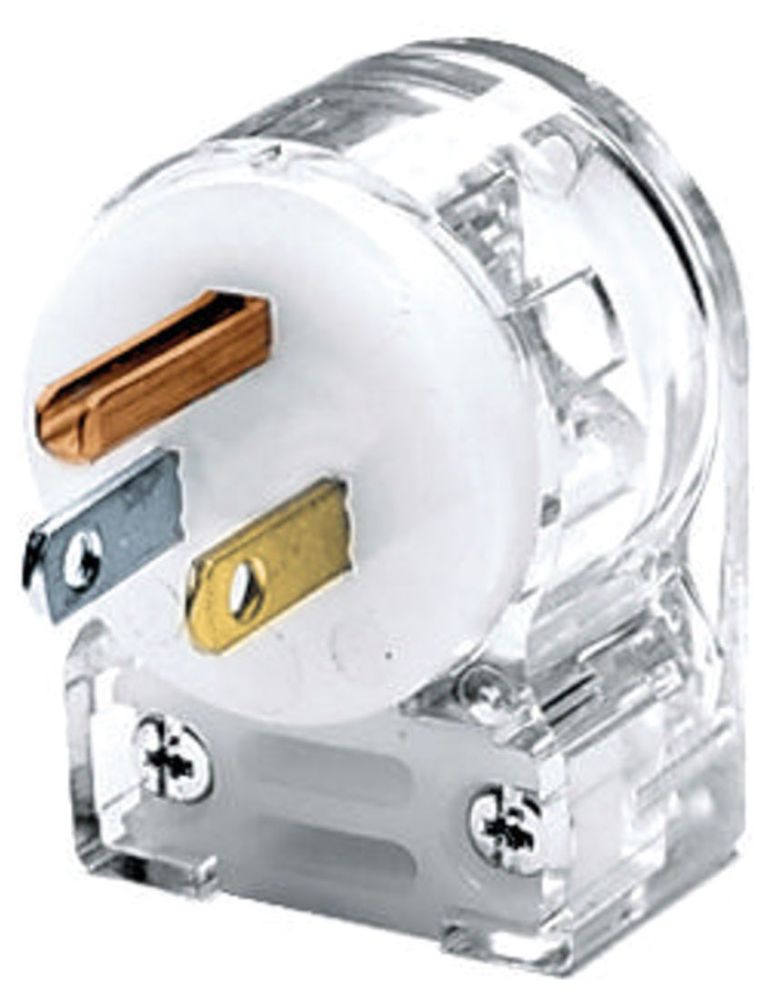

| Description Long | Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Clear, Single Pack. |
| Description Short | Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Clear, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Angled low profile housing;Individual wiring terminals completely enclosed;Powerful, offsetting cord grips clamp on individual conductors;Transparent for easy visual inspection of termination |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 0.50 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PLUG ANGLE, 15A 125V, 5-15P, CLR;ANG PLUG-NEMA5-15P |
| Item Number | 17310 |
| Long Description | STRAIGHT BLADE PLUG, ANGLED, POLARIZED TYPE; NYLON MATERIAL; TRANSPARENT COLOR; 5-15P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2, FSUL APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 0.325 TO 0.655 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Polycarbonate;Nylon |
| Mounting | Cord |
| NEMA Rating | 5-15P |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | PLUG ANGLE, 15A 125V, 5-15P, CLR |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Clear, Single Pack. |
| ProductLine | HUBW |
| Series | Insulgrip |
| Size | Standard Sized Product |
| Special Features | Angled, 4-Position |
| Standard | CSA Certified to C22.2 No. 42 File 280;NEMA WD-6 Compliant;UL Listed to UL498 File E1706 |
| Standards RoHS Compliance Status | CM |
| Type | Plug;Angled, Polarized |
| UNSPSC | 39121402 |
| UPC | 78358517310 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125;125 V |
| Voltage Rating Description | 125 V |
| Wattage | 1875 W |
| Wire Size | #18 AWG to #10 AWG |
