| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL52CM69V |
| Additional Information | Enclosure IP20 |
| Amperage Rating | 15 A |
| Application | Marine Grade |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Valise[R] |
| Catalog Number | HBL52CM69V |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #14 AWG to #12 AWG |
| Configuration | 5-15R |
| Connection | Screw Terminals |
| Cord Size | 0.22 to 0.66 Inch |
| CountryOfOrigin | PR |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Ampere |
| DDCATEGORY | 574 |

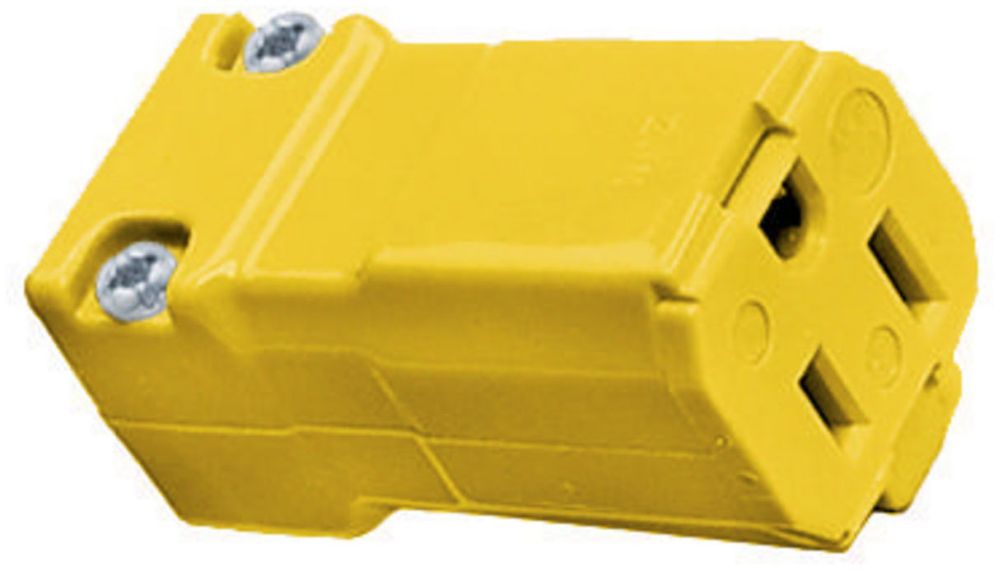

| Description Long | Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 15A 125V, 5-15R, Yellow, Single Pack |
| Description Short | Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding , 15A 125V, 5-15R, Yellow, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Powerful cord grips;Removable cord inserts;Unique patented clamp type terminals |
| FV Current Amperage Rating | 15 A |
| FV Item Type | Valise |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Grade | Marine |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | MARINE VAL CONN, 15A 125V, 5-15R, YL;GRD CONN-NEMA 5-15R |
| Item Number | 80829 |
| Long Description | STRAIGHT BLADE CONNECTOR, POLARIZED TYPE; NYLON MATERIAL; YELLOW COLOR; 5-15R CONFIGURATION; 3 WIRE(S); MARINE GRADE; UL, CSA APPROVAL; 125 VAC VOLTAGE RATING; 15 AMPERE CURRENT RATING; GROUNDING; 2 POLE(S); 0.22 TO 0.66 INCH CORD SIZE; VALISE[R] BRAND |
| MSDS Form Number | * |
| Material | Composite;Nylon |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3 |
| Performance | Electrical - Dielectric Voltage - Withstands 2,000V minimum;Electrical - Max. Working Voltage - 125V or 250V as rated;Electrical - Temperature Rise - Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75C;Mechanical - Product Identification - Molded Rating on Device Face;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA (Brass, White, Green);minimum -40C (w/o impact) |
| Product Description | MARINE VAL CONN, 15A 125V, 5-15R, YL |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Female Connector Body, Corrosion Resistant, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R |
| ProductLine | HUBW |
| Size | Standard |
| Special Features | Corrosion Resistant |
| Standard | UL Listed |
| Standards RoHS Compliance Status | CM |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Valise;Polarized |
| UNSPSC | 39121421 |
| UPC | 78358580829 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125;125 VAC |
