| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL530C6W |
| Application | High Ampacity Watertight Connections |
| Base Price | 0.0000 |
| Color | Red |
| CountryOfOrigin | US |
| DDCATEGORY | 574 |

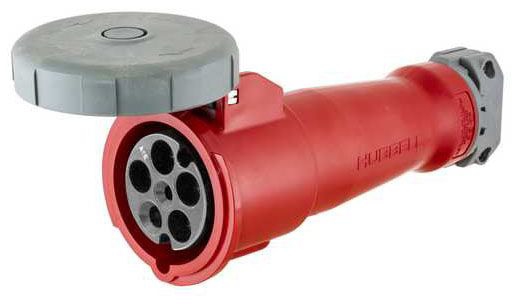

| Description Long | 220/380-240/415 V, 4-Pole 5-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k;Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector, 30/32 A, 200/346-240/415 V |
| Description Marketing Copy | Watertight Devices - Hubbells IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbells horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting line of sight disconnecting means. |
| Description Short | Heavy Duty Products, IEC Pin and Sleeve |
| Dielectric Strength | Withstands 3000V Minimum in |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Color coded housings by voltage for easy identification;Corrosion-resistant self-closing gasketed cover;Insulated Non-Metallic housing |
| FV Current Amperage Rating Description | 30/32 A |
| FV Voltage Rating Description | 200/346-240/415 V V;220/380-240/415 V V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Insulation | Insulated Body |
| InvoiceDescription | PS,CONN,4P5W,30/32A 200-415V, 4X/69K;4P 5W 32A CONN |
| Material | Thermoplastic |
| Material Mounting Hardware | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Number Of Conductors | 5-Wire Grounding |
| Number Of Poles | 4-Pole |
| Number Of Wires | 5-Wire |
| Pallet Quantity | 280 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability -V-0;Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75C;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions;Minimum - 40C w/o impact |
| Phase | Multi Phase |
| Product Description | PS,CONN,4P5W,30/32A 200-415V, 4X/69K |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, IEC Pin and Sleeve |
| ProductLine | HUBW |
| Series | HBL Heavy Duty |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed to UL1682 |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Watertight Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358557458 |
| Voltage Rating | 200/346-240/415 V;220/380-240/415 V |
| Voltage Rating Description | 200/346-240/415 V V;220/380-240/415 V V |
| Wire Size | #12 AWG to #10 AWG |
