| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL530C7W |
| Additional Information | Enclosure IP67; Temperature Rating -40 to 75 Deg C; Application Agriculture, Chemical Processing, Construction, Entertainment, Food Processing, Food Service, Light Manufacturing, Military |
| Amperage Rating | 30 A |
| Application | High Ampacity Connections |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS | |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Catalog Number | HBL530C7W |
| Color | Red |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Conductor Range | #12 AWG to #8 AWG |
| Connection | Pressure Screw Terminal |
| Constructional Feature | Watertight |
| CountryOfOrigin | PR |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Ampere |
| DDCATEGORY | 576 |

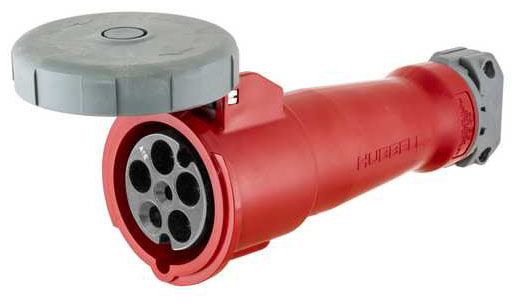

| Description Long | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight |
| Description Short | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Red, Watertight |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Insulated Non-Metallic housing;Color coded housings by voltage for easy identification;Corrosion-resistant self-closing gasketed cover |
| FV Voltage Rating Description | 3 Phase Y 277/480 VAC |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | PS, IEC, CONN, 4P5W, 30A 277/480V,4X/69K;CONN-4P5W277/480V |
| Item Number | 40544 |
| Item Type | Standard |
| Long Description | CONNECTOR, FAN, HEATER, POLARIZED, PUMP TYPE; ZYTEL ST801 NYLON MATERIAL; 0.6 INCH MIN. CABLE OUTER DIAMETER; 1.45 INCH MAX. CABLE OUTER DIAMETER; 5 WIRE(S); UL, CSA APPROVAL; 277/480 VAC STAR 3-PHASE VOLTAGE RATING; 30 AMPERE CURRENT RATING; 4 POLE(S) |
| MSDS Form Number | * |
| Material | Composite;Zytel ST801 Nylon |
| Material Mounting Hardware | Cord Mounted |
| Maximum Cable Outer Diameter | 1.45 Inch |
| Minimum Cable Outer Diameter | 0.6 Inch |
| Model | HBL |
| Mounting | Cord Mounted |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 5-Wire Grounding |
| Number Of Poles | 4 |
| Number Of Wires | 5 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75C;Minimum - 40C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Product Description | PS, IEC, CONN, 4P5W, 30A 277/480V,4X/69K |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Wye 277/480V AC, Watertight |
| ProductLine | HUBW |
| Series | HBL Heavy Duty |
| Size | Standard |
| Special Features | Watertight |
| Standard | CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033 |
| Sub Brand | Pin and Sleeve |
| Temperature Rating | Maximum Continuous: 75 C; Minimum Continuous: -40 C w/o impact, -25 with impact. |
| Type | Watertight Connector Body;Fan, Heater, Polarized, Pump |
| UNSPSC | 39121421 |
| UPC | 78358540544 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase Y 277/480 VAC;277/480 VAC Star 3-Phase |
| Voltage Rating Description | 3 Phase Y 277/480 VAC |
