| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5362C2BLKTR |
| Amperage Rating | 20 A |
| Application | Extra Heavy Duty Specification Grade |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 10 |
| Catalog Number | HBL5362C2BLKTR |
| Color | Black |
| CountryOfOrigin | US |
| Current Amperage Rating | 20 A |
| DDCATEGORY | 573 |

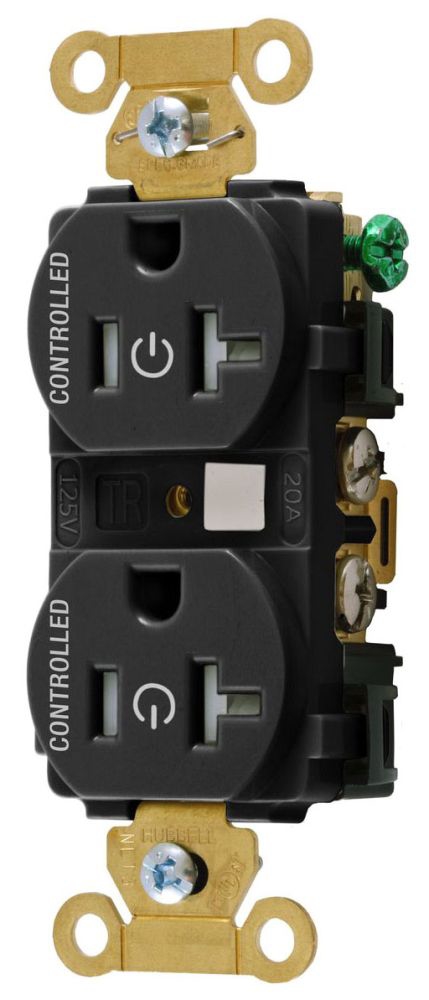

| Description Long | Straight Blade Devices,Extra Heavy Duty Standard Duplex Receptacles for Controlled Applications , Two Controlled faces,20A, 125V, 2 Pole, 3 Wire Grounding,Black |
| Description Short | Straight Blade Devices,Extra Heavy Duty Standard Duplex Receptacles for Controlled Applications , Two Controlled faces,20A, 125V, 2 Pole, 3 Wire Grounding,Black |
| Dielectric Strength | Withstands 2,000V minimum |
| EU RoHS Indicator | Contact Manufacturer |
| FEATURES Bullets | "Permanently marked with universal power symbol and the word ""CONTROLLED"" to visually identify receptacles used in automatic energy management systems;Patented TR design eliminates plug-in difficulty and TR complaints;Markings can be read regardless of mounting orientation;Complies with NEC Section 406.3, ASHRAE 90.1, and California Title 24 requirements;Complements Hubbell's Load:Logic control system or other available energy management system" |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| InvoiceDescription | 2/2 CONTROLLED IND 20A 125V, TR DUP, BK;20A 125V RCP |
| NEMA Rating | 5-20R |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification- Ratings are a permanent part of the device;Mechanical: Terminal Accommodation- #12-10 AWG stranded or solid copper wire only.;Mechanical: Terminal Identification- Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75C;minimum -40C (w/o impact) |
| Product Description | 2/2 CONTROLLED IND 20A 125V, TR DUP, BK |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Extra Heavy Duty Standard Duplex Receptacles for Controlled Applications, Two Controlled faces, 20A, 125V, |
| ProductLine | HUBW |
| Series | Controlled |
| Standard | UL Listed to UL498 File No. E2186Certified to CSA, C22.2, No. 42 File 285Fed. Spec. W-C-596NEMA WD-6 Compliant |
| Type | Tamper-Resistant |
| UNSPSC | 39121406 |
| UPC | 78358558392 |
| Voltage Rating | 125 V |
| Voltage Rating Description | 125 V |
| Wire Size | #12 AWG to #10 AWG |
