| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5469VY |
| Additional Information | Overall Dimension 2.38 Inch Length x 1.25 Inch Width x 0.88 Inch Height; Operating Temperature -40 to 75 Deg C; Enclosure Rating IP20; Applicable Standard NEMA WD 1 |
| Amperage Rating | 20 A |
| Application | Industrial/Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Valise[R] |
| Catalog Number | HBL5469VY |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #14 AWG to #12 AWG |
| Configuration | 6-20R |
| Connection | Screw Terminals |
| Constructional Feature | Crush/Impact Resistant |
| Cord Range | "0.220""-0.660"" (5.6-16.8)" |
| Cord Size | 0.22 to 0.66 Inch |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 574 |

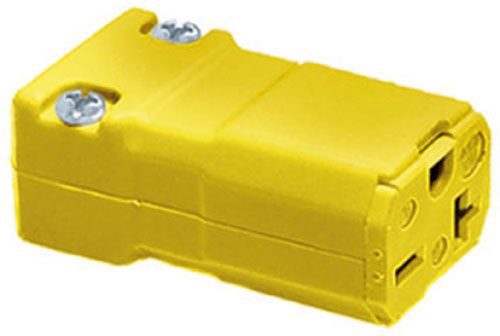

| Description Long | Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20R, Yellow, Single Pack. |
| Description Short | Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20R, Yellow, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Assembly screws are captive and will not fall out while wiring;Hinged one piece body design for easy assembly;Powerful, offsetting cord grips clamp on individual conductors |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 20 A |
| FV Voltage Rating Description | 250 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Grade | Industrial, Commercial |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | VALISE CONN, 20A 250V, 6-20R, VY;GRD CONN NEMA6-20R |
| Item Number | 01319 |
| Long Description | STRAIGHT BLADE CONNECTOR, NYLON MATERIAL; YELLOW COLOR; 6-20R CONFIGURATION; 3 WIRE(S); INDUSTRIAL, COMMERCIAL GRADE; UL 498, CSA C22.2 APPROVAL; 250 VOLT VOLTAGE RATING; 20 AMP CURRENT RATING; GROUNDING; 2 POLE(S); CRUSH/IMPACT RESISTANT |
| MSDS Form Number | * |
| Material | Nylon |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | 6-20R |
| Noun | * |
| Number Of Conductors | 3-Wire Grounding |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Product Description | VALISE CONN, 20A 250V, 6-20R, VY |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Female Connector Body, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20R |
| ProductLine | HUBW |
| Series | Valise |
| Size | 2.38 in x 1.25 in x 0.88 in |
| Special Features | Standard Product |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA WD-6 Compliant;UL Listed to UL498 File E1706 |
| Standards RoHS Compliance Status | CM |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -40 F |
| Type | Connector Body |
| UNSPSC | 39121421 |
| UPC | 78358501319 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250;250 Volt |
| Voltage Rating Description | 250 V | |
