| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL560MIF9W |
| Amperage Rating | 60 A |
| Application | High Ampacity Connections |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBL560MIF9W |
| Commerce Sector | Construction Materials |
| Commodity Code | 51800 |
| Commodity Description | Miscellaneous Wiring Devices |
| Connection | Pressure Screw Terminals |
| Constructional Feature | Watertight, Dust Tight |
| CountryOfOrigin | US |
| Current Amperage Rating | 60 A |
| Current Rating | 60 A;60 Ampere |
| DDCATEGORY | 579 |

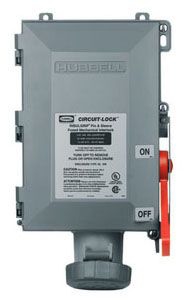

| Description Long | Heavy Duty IEC Pin and Sleeve Industrial Grade Female Fused Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding |
| Description Marketing Copy | "Fused Circuit-Lock Pin and Sleeve Mechanical Interlocks - Hubbell Circuit-Lock Pin and Sleeve mechanical Interlocks are a revolutionary design that incorporates a disconnect switch and pin and sleeve receptacle in a compact non-metallic unit. These devices offer maximum safety by preventing users from mating or breaking a circuit under loadHubbells interlock mechanism detects the presence of a plug and prevents it from being removed when the switch is in the ""ON"" position. It features a high visibility red handle that can be locked in the OFF position to meet OSHA lockout/tagout regulations. The enclosure door can be locked to prevent unauthorized access. The rugged, corrosion-resistant Type 4X PBT enclosure features adjustable mounting feet for flexible installation, while the receptacles springloaded cover with gasket is dust tight and provides a watertight seal when turned and locked. The patented Plug-Check mechanism detects the presence of the plug. It operates as a clutch to engage the handle with the switch and captures the plug. This action prevents the plug from being removed until the switch is turned OFF." |
| Description Short | IEC Pin and Sleeve Female, Fused Mechanically Interlocked Receptacle 60A |
| Directory | CIS |
| EU RoHS Indicator | No |
| Enclosure | IP67, NEMA 4X/12 |
| Environmental Conditions | Watertight |
| FEATURES Bullets | Plug-Check mechanism to detect the presence of plug;Removable door for ease of wiring and installation;Replaceable spring-loaded receptacle liftcover with gasket |
| FV Current Amperage Rating | 60 A |
| FV Voltage Rating Description | 3 Phase Y 120/208 VAC |
| Families | 579 |
| Family Color | Blue |
| Family Description | Miscellaneous Wiring Devices |
| Fuse Provision | Fusible |
| Hub Type | 1-1/4 Inch NPT |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PS, IEC, MECHINT, 4P5W,60A 120/208V,FUSE;4P5W 60A MCH INRLK |
| Item Number | 52099 |
| Long Description | PIN AND SLEEVE MECHANICAL INTERLOCK, MECHANICALLY INTERLOCKED TYPE; VALOX MATERIAL; 5 WIRE(S); 120/208 V STAR 3 PHASE VOLTAGE RATING; IP67, NEMA 4X/12 ENCLOSURE; 60 AMPERE CURRENT RATING; 4 POLE(S); WATERTIGHT, DUST TIGHT; 1-1/4 INCH NPT HUB TYPE |
| MSDS Form Number | * |
| Material | Valox |
| Material Mounting Hardware | Screw Mounting |
| Material Quality | Thermoplastic |
| Mounting | Screw Mount |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 4-Pole;4 |
| Number Of Wires | 5-Wire;5 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current and voltage;Electrical - Dielectric Voltage - Withstands 3,000V AC Min;Electrical - Max Working Voltage - 600V AC;Environmental - Flammability - UL94-5VA and V-0 Classification;Environmental - Ingress Protection - IP66 Suitability;Environmental - Operating Temperatures - Max. Continuous +75C;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - External adjustment feet;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions;Min. Continuous -40C |
| Phase | 3 |
| Product Description | PS, IEC, MECHINT, 4P5W,60A 120/208V,FUSE |
| Product Keywords | WEBREADY |
| Product Name | Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Fused Mechanically Interlocked Receptacle, 60A 3-Phase Wye 120/208V AC |
| ProductLine | HUBW |
| Series | Fused |
| Size | Standard Sized Product |
| Special Features | Watertight |
| Standard | CSA Certified;UL Listed for US and Canada |
| Type | Mechanical Interlock;Mechanically Interlocked |
| UNSPSC | 39121406 |
| UPC | 78358552099 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase Y 120/208 VAC;120/208 V Star 3 Phase |
| Voltage Rating Description | 3 Phase Y 120/208 VAC |
| Wattage | 12480 W |
| Wire Size | #8 to #2 |
