| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL5865VY |
| Additional Information | Blade Material 0.06 Inch Brass; Enclosure IP20; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Valise[R] |
| Catalog Number | HBL5865VY |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | 1-15P |
| Connection | Screwed Terminal |
| Cord Size | 0.218 to 0.385 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Ampere |
| DDCATEGORY | 574 |

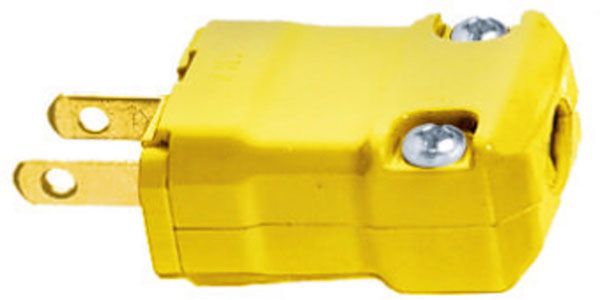

| Description Long | Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P, Yellow, Single Pack. |
| Description Short | Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P, Yellow, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Hinged one piece body design for easy assembly;Non-polarized blades;Powerful cord grips prevent conductor slippage and strain;Two captive multiple drive assembly screws |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 574 |
| Family Color | Yellow |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Non-Grounding |
| Horsepower Maximum | 0.5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | VALISE PLUG, 15A 125V, 1-15P, YL,N-POLAR;YEL PLUG NEMA1-15P |
| Item Number | 01306 |
| Long Description | STRAIGHT BLADE PLUG, NON-POLARIZED, STRAIGHT TYPE; NYLON MATERIAL; YELLOW COLOR; 1-15P CONFIGURATION; 2 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125 V VOLTAGE RATING; 15 AMPERE CURRENT RATING; NON-GROUNDING; 2 POLE(S); 0.218 TO 0.385 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Composite;Nylon |
| Mounting | Cord |
| NEMA Rating | 1-15P |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 2-Wire;2 |
| Pallet Quantity | 6000 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Product Identification - Molded Rating on Device Face;Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | VALISE PLUG, 15A 125V, 1-15P, YL,N-POLAR |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P, Single Pack |
| ProductLine | HUBW |
| Series | Valise |
| Size | 1.68 in x 1.25 in x 0.88 in |
| Special Features | Non Polarized |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA WD-6 Compliant;UL Listed to UL498 File E1706 |
| Standards RoHS Compliance Status | CM |
| Type | Plug;Non-Polarized, Straight |
| UNSPSC | 39121402 |
| UPC | 78358501306 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125;125 V |
| Voltage Rating Description | 125 V | |
| Wattage | 1 W |
| Wire Size | #18 AWG to #14 AWG |
