| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL60CM83A |
| Additional Information | Enclosure Material PBT; Applicable Standard UL 94V-0 |
| Application | Industrial/Commercial |
| Approval | UL 514C/50E, CSA C22.2, ANSI |
| Base Price | 0.0000 |
| Cable Entry | Through Hub |
| Capacity | 30 Cubic Inch |
| Catalog Number | HBL60CM83A |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51800 |
| Commodity Description | Miscellaneous Wiring Devices |
| Construction | Molded |
| CountryOfOrigin | US |
| Cubic Capacity | 22 Cubic Inch |
| DDCATEGORY | 579 |

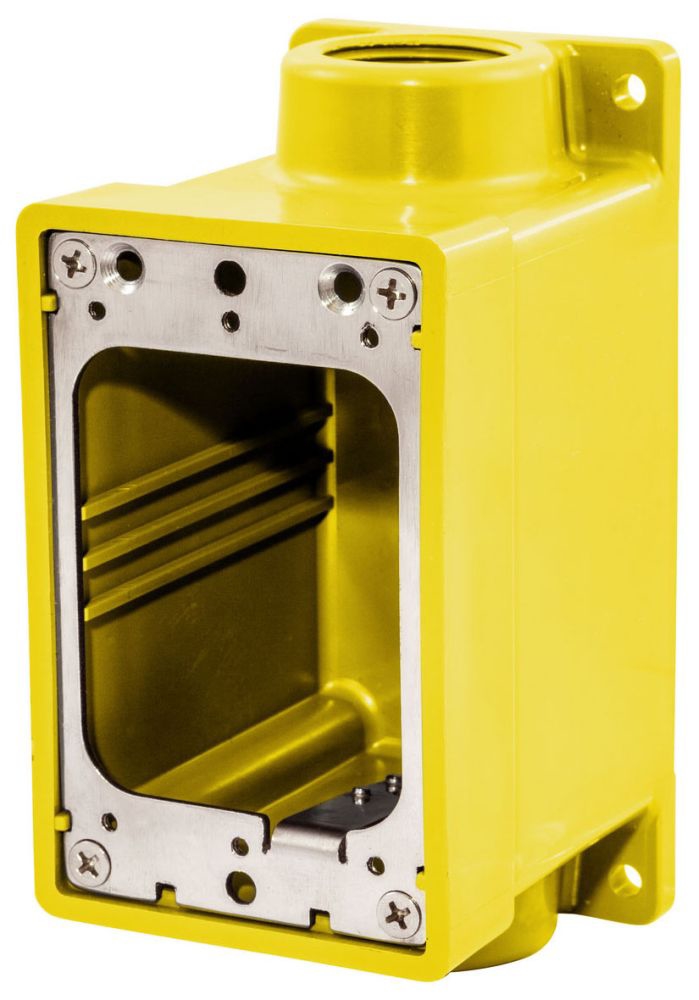

| Description Long | "Watertight Series, FD Box, 3/4"" NPT,Yellow" |
| Description Marketing Copy | Hubbell's fully UL Listed surface mount box is engineered with features that allow easy, code compliant installation of all types of devices from 15A to 50A. These features include a metallic ground bonding bracket, threaded conduit hubs and external mounting supports. Together with an industry first 55 degree angle adapter, the combination of devices is the only code compliant 45 cu.in. solution for 50A 4 wire installations. The angle adapter can also be installed separately for panel applications. |
| Description Short | "Watertight Series, FD Box, 3/4"" NPT,Yellow" |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| FEATURES Bullets | "3/4"" NPT;FD Box;Watertight Series;Yellow" |
| Families | 579 |
| Family Description | Miscellaneous Wiring Devices |
| Hub Size | 3/4 Inch Threaded |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "WATERTIGHT FD BOX, 3/4"", YELLOW";3/4 WT FD BOX |
| Item Number | 52877 |
| Knockouts | "3/4"" NPT Hub" |
| Long Description | WATERTIGHT DEVICE BOX, HIGH IMPACT THERMOPLASTIC MATERIAL; YELLOW COLOR; 3/4 INCH THREADED HUB SIZE; 2 HUB(S); UL 514C/50E, CSA C22.2, ANSI APPROVAL; 30 CUBIC INCH CAPACITY; ENCLOSURE MATERIAL PBT; APPLICABLE STANDARD UL 94V-0 |
| MSDS Form Number | * |
| Material | Non-Metallic;High Impact Thermoplastic |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Hubs | 2 |
| Number Of Outlet | Accepts 1-Device |
| Pallet Quantity | 560 |
| Product Description | "WATERTIGHT FD BOX, 3/4"", YELLOW" |
| Product Keywords | WEBREADY |
| Product Name | "Watertight Series, FD Box, 3/4"" NPT, Yellow" |
| ProductLine | HUBW |
| Size | Standard Product |
| Special Features | Standard Product |
| Standard | UL514 |
| Standards RoHS Compliance Status | CM |
| Temperature Range | Maximum 75 Degrees C to -40 Degrees C without Impact |
| Type | Boxes |
| UNSPSC | 39121332 |
| UPC | 78358552877 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
