| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL60W47D |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | HBL60W47D |
| Color | Yellow |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 5-15R |
| Connection | Terminal Screws |
| CountryOfOrigin | US |
| Cover Type | Impact Resistant Polybutylene Terephthalate |
| Current Amperage Rating | 15 A |
| Current Rating | 15 Amp |
| DDCATEGORY | 573 |

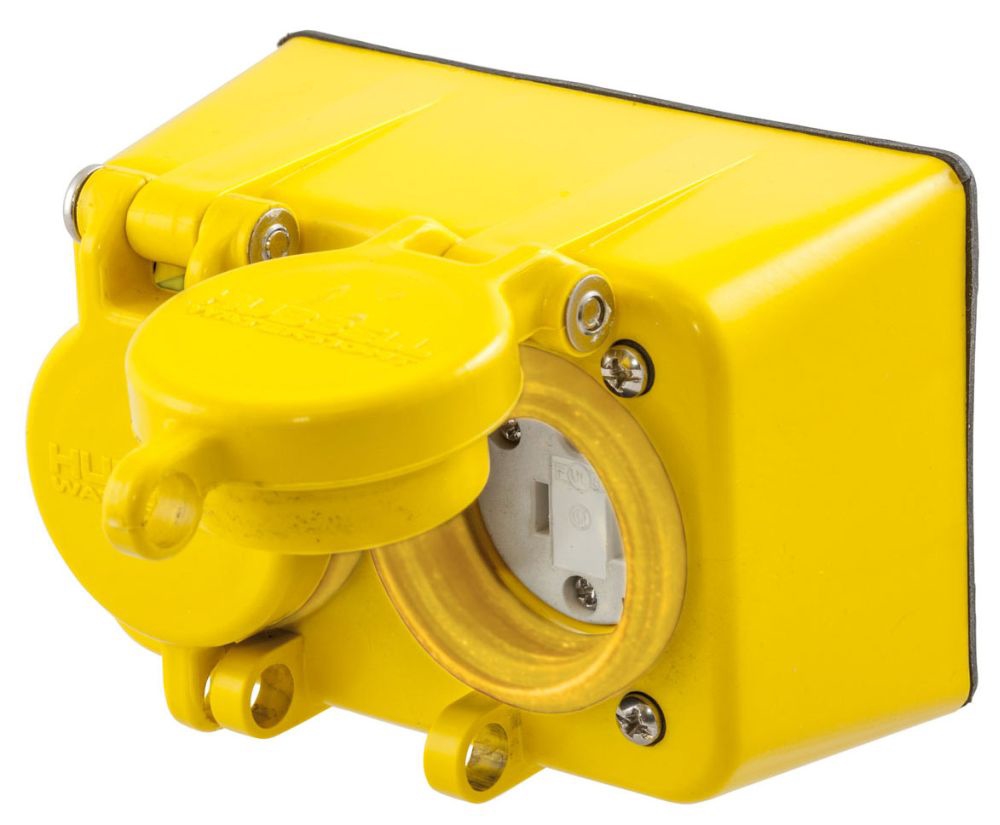

| Description Long | Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow |
| Description Marketing Copy | Hubbell Watertight receptacles with lift covers provide an impact resistant UL Type 4X seal combined with corrosion resistant metallic components. These universal covers can house any NEMA listed straight blade receptacles as well as any NEMA listed Twist-Lock receptacles. The Watertight receptacles can either be mounted to FD/FS boxes (see page C-9) or panel mounted to a flat surface. Combined, this makes a diversified product with the high quality needed in industrial, wet and wash down applications. |
| Description Short | Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Impact resistant PBT lid, cover plate, and receptacle body;Stainless steel hardware and corrosion-resistant connection points;Thermoplastic elastomer seal |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125 V |
| Families | 573 |
| Family Color | Yellow |
| Family Description | Receptacles & Surge Protectors |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | WATERTIGHT 15A/125V, 5-15 DUPLX REC;15A 125V WT RCPT |
| Item Number | 52870 |
| Long Description | RECEPTACLE, DUPLEX TYPE; NYLON CASING MATERIAL; YELLOW COLOR; 5-15R CONFIGURATION; 3 WIRE(S); UL, CSA APPROVAL; 125 VOLT VOLTAGE RATING; 15 AMP CURRENT RATING; IMPACT RESISTANT POLYBUTYLENE TEREPHTHALATE COVER TYPE; 2 POLE(S) |
| MSDS Form Number | * |
| Material | Composite;Nylon Casing |
| Mounting | Screw Mount |
| NEMA Rating | 5-15R |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 840 |
| Phase | 1 |
| Product Description | WATERTIGHT 15A/125V, 5-15 DUPLX REC |
| Product Keywords | WEBREADY |
| Product Name | Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow |
| ProductLine | HUBW |
| Series | Watertight Devices |
| Size | Standard Sized Product |
| Special Features | Standard Product |
| Standard | UL498 |
| Type | Receptacle;Duplex |
| UNSPSC | 39121406 |
| UPC | 78358552870 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 Volt |
| Voltage Rating Description | 125 V |
| Wattage | 1875 W |
| Wire Size | #14 to #12 |
