| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL7410B |
| Additional Information | Wire Size 16 to 8 AWG; Contact Material Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C; Application Industrial |
| Amperage Rating | 20 A |
| Application | Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2, Fed.Spec W-C-596 |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS | |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock[R] |
| Catalog Number | HBL7410B |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | Non-NEMA Locking |
| Connection | Screw Terminals |
| Constructional Feature | Abuse/Impact/Corrosion/Moisture Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 20 A |
| Current Rating | 20 A;20 Amp |
| DDCATEGORY | 573 |

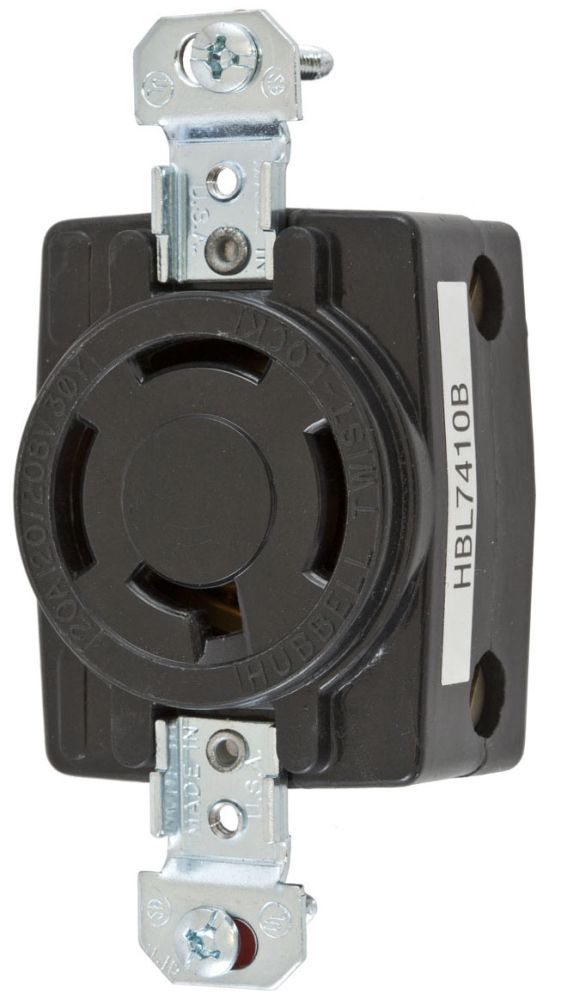

| Description Long | Locking Devices, Twist-Lock, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Back wired, Black thermoset. |
| Description Short | Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Black |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | High-impact, abuse-resistant nylon face;Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection;Face color coding by voltage facilitates locating and mating of proper devices;All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
| FV Current Amperage Rating | 20 A |
| Face Outer Diameter | 1.57 Inch |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Non-Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG RCPT, 4P4W, 20A 120/208V, BK;LKG RCP-4P4W20A208V |
| Item Number | 33352 |
| Item Type | 20A Single Flush Receptacle |
| Long Description | LOCKING RECEPTACLE, SINGLE TYPE; NYLON (FACE), RTP (BASE) MATERIAL; BLACK COLOR; NON-NEMA LOCKING CONFIGURATION; 4 WIRE(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 APPROVAL; 120/208 VOLT AC STAR 3-PHASE VOLTAGE RATING; FLUSH MOUNT MOUNTING |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Face), RTP (Base) |
| Material Mounting Hardware | Screw Mounting |
| Model | HBL |
| Mounting | Screw Mount;Flush Mount |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 3 |
| Product Description | LKG RCPT, 4P4W, 20A 120/208V, BK |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Flush Receptacle, 20A 3-Phase Wye 120/208V AC, 4-Pole 4-Wire Non- Grounding, Non-NEMA, Screw Terminal, Black |
| ProductLine | HUBW |
| Size | 3.61 in x 1.71 in x 1.28 in |
| Special Features | Standard |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358533352 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 3 Phase WYE 120/208 VAC;120/208 Volt AC Star 3-Phase |
| Voltage Rating Description | 3 Phase WYE 120/208 VAC |
| Wattage | 4,160 W |
| Wire Size | #16 AWG to #8 AWG |
| Wiring | Back, Side |
