| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL7485 |
| Additional Information | Wire Size 18 to 14 AWG (Stranded Copper); Enclosure Rating IP20; Blade Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 15 A |
| Application | Industrial/Commercial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Twist-Lock[R] |
| Cable Range | 0.300 - 0.430 in |
| Catalog Number | HBL7485 |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | ML-3P |
| Connection | Screwed Terminal |
| Constructional Feature | Abuse/Heat Resistant |
| Cord Diameter | 0.300-0.430 in |
| Cord Range | "0.281""-0.421""(7.1-10.7)" |
| Cord Size | 0.281 to 0.421 Inch |
| Cord Type | All Listed Portables |
| CountryOfOrigin | US |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

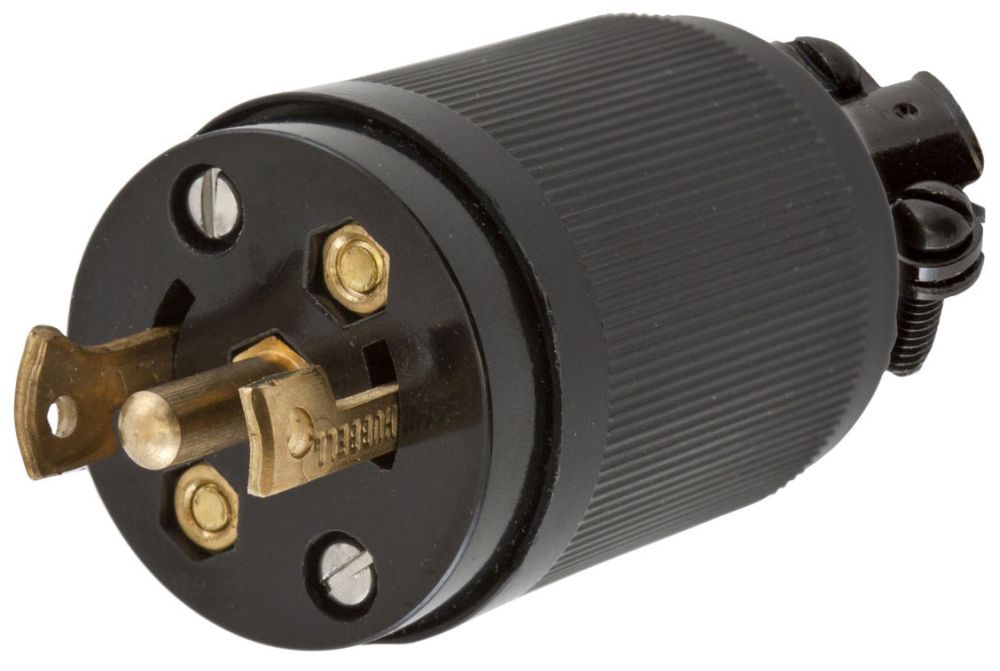

| Description Long | Locking Devices, Midget Twist-Lock, Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black. |
| Description Short | Locking Devices, Midget Twist-Lock, Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black. |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Abuse resistant nylon housing;Angled body design for low profile in tight spaces;Phenolic body for high heat resistance;Totally insulated body adds extra measure of safety |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) | |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 125/250 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Non-Grounding |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG PLUG, MIDGET, 15A 125/250V, ML-3P;LKG CONN-NEMA ML-3R |
| Item Number | 23741 |
| Long Description | LOCKING PLUG, POLARIZED TYPE; NYLON BODY, PHENOLIC BASE MATERIAL; BLACK COLOR; ML-3P CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125/250 VOLT AC VOLTAGE RATING; 15 AMP CURRENT RATING; NON-GROUNDING; 3 POLE(S); ABUSE/HEAT RESISTANT |
| MSDS Form Number | * |
| Material | Nylon;Nylon Body, Phenolic Base |
| Material Mounting Hardware | Cord Mounted |
| Mounting | Cord |
| NEMA Rating | ML-3P |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 6000 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accomodation - #18 AWG - #14 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG PLUG, MIDGET, 15A 125/250V, ML-3P |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Midget Twist-Lock, Industrial, Male Plug, 15A 125/250V AC, 3-Pole 3-Wire Non Grounding, NEMA ML-3P, Screw Terminal, Black. |
| ProductLine | HUBW |
| Size | 1.17 in x 1.17 in x 2.45 in |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Listed to UL 498 |
| Type | Plugs;Polarized |
| UNSPSC | 39121402 |
| UPC | 78358523741 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250;125/250 Volt AC |
| Voltage Rating Description | 125/250 V |
| Wattage | 3 W |
| Wire Size | #18 AWG to #14 AWG |
