| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL7513C |
| Additional Information | Power Rating 3 (2) HP; Blade Material 0.06 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 50 A |
| Application | Industrial/Commercial |
| Approval | UL 498, Federal Specification UL, CSA |
| Base Price | 0.0000 |
| Catalog Number | HBL7513C |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Black, White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | 10-50P |
| Connection | Screwed Terminal |
| Cord Range | "0.625""-1.218""" |
| Cord Size | 0.625 to 1.218 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 50 A |
| Current Rating | 50 A;50 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

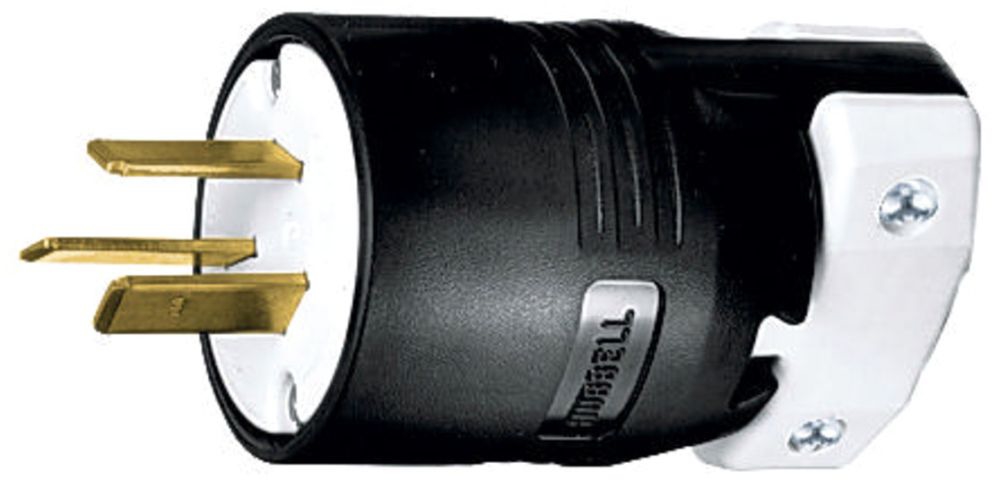

| Description Long | Straight Blade Devices, Male Plug, Heavy Duty, Industrial/CommercialGrade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50P , Black, Single Pack. |
| Description Short | Straight Blade Devices, Male Plug, Heavy Duty, Industrial/CommercialGrade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50P , Black, Single Pack |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | Catalog number, ratings and certifications molded in face;Gripping ribs provide secure gripping area;Supertough nylon housing |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 50 A |
| FV Voltage Rating Description | 125/250 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Non-Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PLUG, 3P3W, 50A 125/250V, 10-50P;PLUG NEMA10-50P |
| Item Number | 01510 |
| Long Description | STRAIGHT BLADE PLUG, STRAIGHT TYPE; NYLON MATERIAL; BLACK, WHITE COLOR; 10-50P CONFIGURATION; 3 WIRE(S); UL 498, FEDERAL SPECIFICATION UL, CSA APPROVAL; 125/250 VOLT VOLTAGE RATING; 50 AMP CURRENT RATING; NON-GROUNDING; 3 POLE(S) |
| MSDS Form Number | * |
| Material | Nylon |
| Mounting | Cord |
| NEMA Rating | 10-50P |
| Noun | * |
| Number Of Poles | 3-Pole;3 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 720 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | PLUG, 3P3W, 50A 125/250V, 10-50P |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Male Plug, Heavy Duty, Industrial/CommercialGrade, Straight, 3-Pole 3-Wire Non Grounding, 50A 125/250V, 10-50P, Single Pack |
| ProductLine | HUBW |
| Series | Extra Heavy Duty |
| Size | 4.13 in x 2.88 in x 2.88 in |
| Special Features | Straight |
| Standard | CSA Certified;UL Listed File E1706 |
| Type | Plug;Straight |
| UNSPSC | 39121402 |
| UPC | 78358501510 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250;125/250 Volt |
| Voltage Rating Description | 125/250 V | |
| Wattage | 12500 W |
| Wire Size | #12 AWG to #4 AWG |
