| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL7555G |
| Additional Information | Enclosure IP20; Temperature Rating -40 to 60 Deg C |
| Amperage Rating | 10/15 A |
| Application | Heavy Duty Industrial |
| Approval | UL 94/498, CSA C22.2 |
| Brand Name | Twist-Lock[R], Insulgrip[R] |
| Cable Range | 0.296 - 0.625 in |
| Catalog Number | HBL7555G |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Conductor Range | #14AWG to #12AWG |
| Configuration | Non-NEMA Locking |
| Connection | Pressure Screw Terminal |
| Constructional Feature | Impact Resistant, Chemical Resistant |
| Cord Diameter | 0.296-0.625 in |
| Cord Range | "0.296""-0.625"" " |
| Cord Size | 0.296 to 0.625 Inch |
| CountryOfOrigin | US |
| Current Amperage Rating | 10/15 A |
| Current Rating | 10 A;15 Ampere at 125 V, 10 Ampere at 250 VAC |
| DDCATEGORY | 574 |

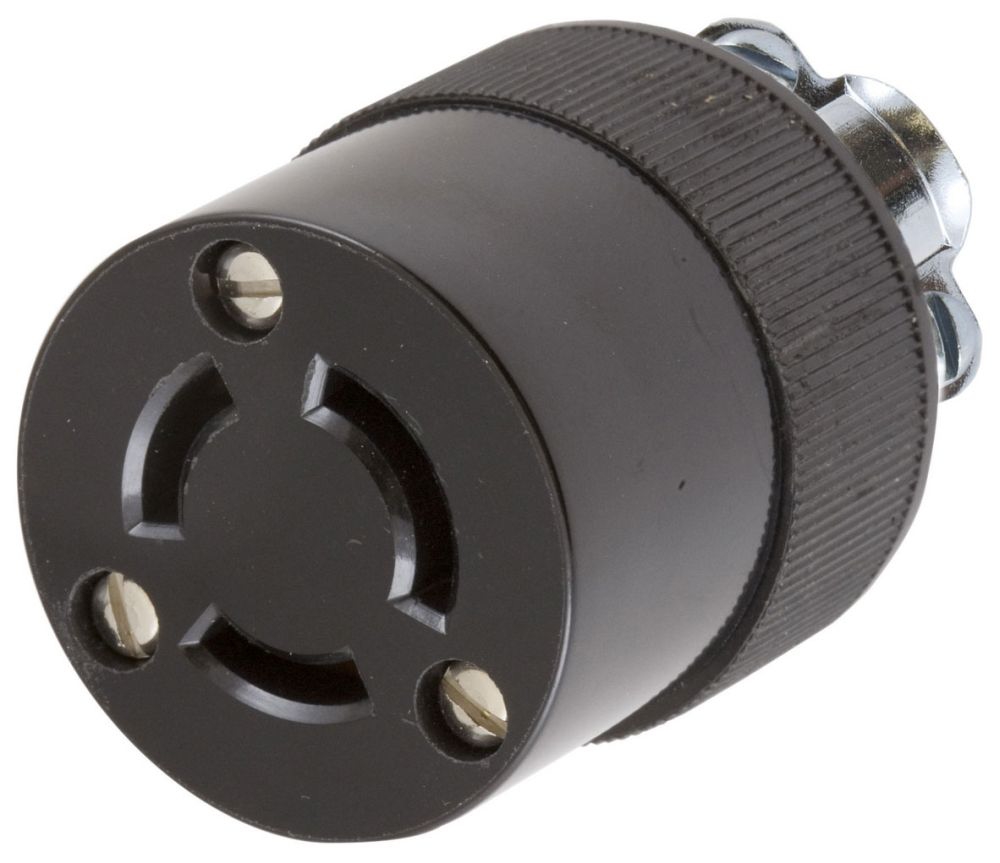

| Description Long | Locking Devices, Twist-Lock, Industrial, Female Insulgrip Connector Body, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non- NEMA, Screw Terminal, Black Phenolic |
| Description Short | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non- NEMA, Screw Terminal, Black and White |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Individually molded face for each blade configuration keeps debris out of plug interior;Ribbed nylon housing is impact and chemical resistant;Roomy wiring chamber provides ample space for wiring |
| FV Current Amperage Rating | 10/15 A |
| FV Voltage Rating Description | 250/125 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Image Location | * Image |
| Industry | ELX |
| Insulation | Insulated Body |
| InvoiceDescription | LKG CONN, 2P3W, 10A 250V/15A125V;GRD CONN-3P3W10A250V |
| Item Number | 23763 |
| Long Description | LOCKING CONNECTOR, POLARIZED TYPE; PHENOLIC MATERIAL; BLACK COLOR; NON-NEMA LOCKING CONFIGURATION; 3 WIRE(S); UL 94/498, CSA C22.2 APPROVAL; 250 VAC/ 125 V VOLTAGE RATING; 15 AMPERE AT 125 V, 10 AMPERE AT 250 VAC CURRENT RATING; GROUNDING; 2 POLE(S) |
| MSDS Form Number | * |
| Material | Phenolic |
| Material Mounting Hardware | Cord Mounted |
| Model | HBL |
| Mounting | Cord |
| NEMA Rating | Non-NEMA |
| Noun | * |
| Number Of Conductors | 3 |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75C Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Product Description | LKG CONN, 2P3W, 10A 250V/15A125V |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Industrial, Female Connector Body, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non- NEMA, Screw Terminal and White |
| ProductLine | HUBW |
| Size | 1.53 in x 1.53 in x 2.78 in |
| Special Features | Standard Product |
| Standard | UL498 |
| Temperature Rating Maximum | 167 F |
| Temperature Rating Minimum | -13 F |
| Type | Connector Body;Polarized |
| UNSPSC | 39121421 |
| UPC | 78358523763 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250/125;250 VAC/ 125 V |
| Voltage Rating Description | 250/125 V |
HUBW HBL7555G
