| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL7883D |
| Additional Information | Toggle Type Standard; Wiring Style Back; Material Thermoset; Temperature Rating -40 to 75 Deg C |
| Application | Motor Starting w/o Overload Protection;Industrial |
| Approval | UL 508, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBL7883D |
| Commerce Sector | Construction Materials |
| Commodity Code | 31720 |
| Commodity Description | Non-Fusible Disconnect Safety Switches |
| Conductor Size | 4 AWG |
| Connection | Pressure Screw Terminals |
| CountryOfOrigin | US |
| Current Amperage Rating | 85 A |
| Current Rating | 85;85;85 Amp |
| DDCATEGORY | 1719 |
| Description Long | Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 80A 600V AC, Back and Side Wired |
| Description Short | Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 80A 600V AC, Back and Side Wired |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Enclosure Type | None |
| FEATURES Bullets | Front and back wiring with steel screws and copper terminals;Recessed wiring wells for finger safe environments;Thermoset body withstands high temperatures |
| FV Current Amperage Rating | 85 A |
| FV Voltage Rating Description | 600 VAC |
| Families | 1719 |
| Family Description | Non-Fusible Disconnect Safety Switches |
| Handle Type | Toggle |
| Horsepower Maximum | 40 |

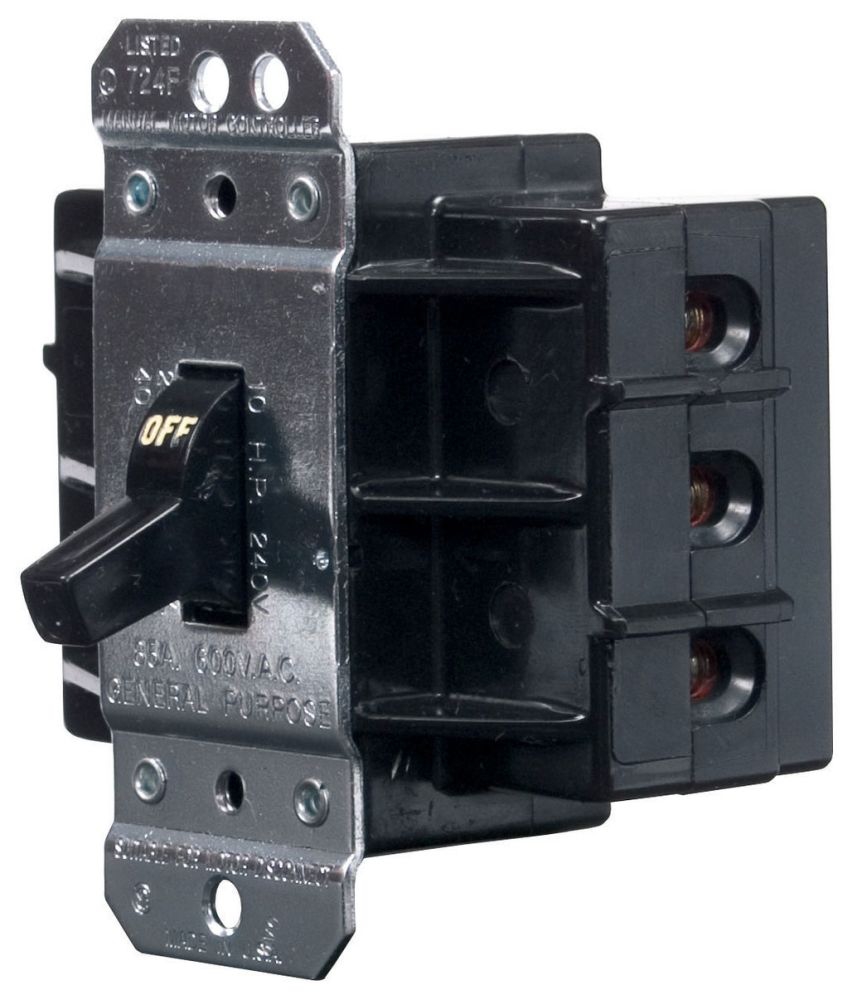

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DISCONNECT 85A 600V 3P;85A 600V DISC SW |
| Item Number | 20293 |
| Long Description | DISCONNECT SWITCH, FUSIBLE TYPE; 3.56 INCH WIDTH X 2.83 INCH DEPTH X 3.78 INCH HEIGHT SIZE; TOGGLE HANDLE TYPE; 3 PHASE(S); UL 508, CSA C22.2 APPROVAL; INDUSTRIAL APPLICATION; 240/480/600 VOLT AC VOLTAGE RATING; 85 AMP CURRENT RATING |
| MSDS Form Number | * |
| Material | Stainless Steel |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| Noun | * |
| Number Of Phases | 3 |
| Number Of Poles | 3 |
| Pallet Quantity | 1300 |
| Performance | Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75C,Min. -40C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only |
| Power Rating | 51000 W;10 HP at 240 Volt AC 3-Phase, 25 HP at 480 Volt AC 3-Phase, 40 HP at 600 Volt AC 3-Phase |
| Product Description | DISCONNECT 85A 600V 3P |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Industrial Grade, Manual Motor Controllers, Motor Disconnects, Three Pole, 80A 600V AC, Back and Side Wired |
| ProductLine | HUBW |
| Series | Standard Toggle |
| Size | Standard Sized Product;3.56 Inch Width x 2.83 Inch Depth x 3.78 Inch Height |
| Special Features | Standard Product |
| Standard | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Temperature Rating | Minimum Continuous -40 Deg C without Impact |
| Terminals | Terminal Screws |
| Termination Type | Screw |
| Type | Fusible |
| Type Of Motor Starter | Back Wire |
| UNSPSC | 39121521 |
| UPC | 78358520293 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 VAC;240/480/600 Volt AC |
| Voltage Rating Description | 600 VAC |
