| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL9331 |
| Additional Information | Power Rating 2 HP; Blade Material 0.06 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 30 A |
| Application | Industrial/Commercial |
| Approval | UL 498, Federal Specification UL, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | HBL9331 |
| Certified Listed | TAA Compliant (All status valid till December 2024) |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51300 |
| Commodity Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Configuration | 6-30P |
| Connection | Screwed Terminal |
| Cord Size | 0.625 to 1.187 Inch |
| Cord Type | All Portable |
| CountryOfOrigin | US |
| Current Amperage Rating | 30 A |
| Current Rating | 30 A;30 Amp |
| DDCATEGORY | 574 |
| Decorative Color | Black |

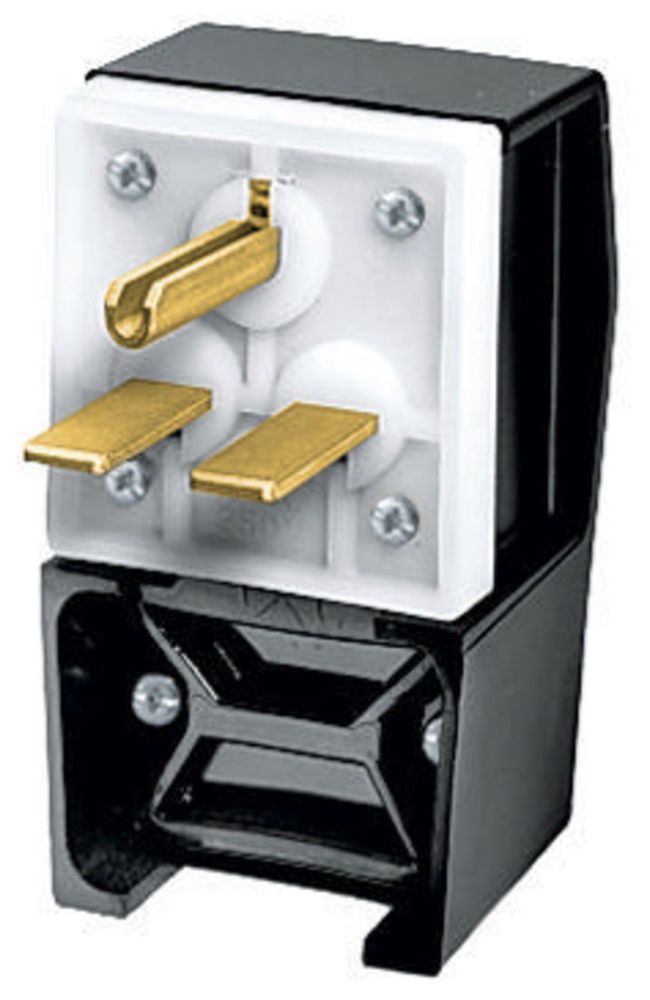

| Description Long | Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 250V, 6-30P, Black, Single Pack. |
| Description Short | Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 250V, 6-30P, Black, Single Pack. |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| FEATURES Bullets | 4-Position;Heavy Duty;Nylon |
| FV BuyAmericanCompliant | Yes |
| FV Certified Listed | TAA Compliant (All status valid till December 2024) |
| FV Current Amperage Rating | 30 A |
| FV Voltage Rating Description | 250 V |
| Families | 574 |
| Family Description | Plugs,Conn,Inlets,Outlets,Lampholdr |
| Ground Type | Grounding |
| Horsepower Maximum | 2 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PLUG, ANG, 2P3W, 30A 250V, 6-30P, BK;ANG PLUG NEMA6-30P |
| Item Number | 01524 |
| Long Description | STRAIGHT BLADE PLUG, STRAIGHT TYPE; NYLON MATERIAL; BLACK COLOR; 6-30P CONFIGURATION; 3 WIRE(S); UL 498, FEDERAL SPECIFICATION UL, CSA C22.2 APPROVAL; 250 VOLT VOLTAGE RATING; 30 AMP CURRENT RATING; GROUNDING; 2 POLE(S); 0.625 TO 1.187 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Thermoplastic;Nylon |
| Mounting | Cord |
| NEMA Rating | 6-30P |
| Noun | * |
| Number Of Poles | 2-Pole;2 |
| Number Of Wires | 3-Wire;3 |
| Pallet Quantity | 1360 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#4 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | PLUG, ANG, 2P3W, 30A 250V, 6-30P, BK |
| Product Keywords | WEBREADY |
| Product Name | Straight Blade Devices, Male Plug, Nylon, 4-Position, Heavy Duty, Industrial/Commercial Grade, Angled, 2-Pole 3-Wire Grounding, 30A 250V, 6-30P. |
| ProductLine | HUBW |
| Series | Extra Heavy Duty |
| Size | 4.34 in x 2.75 in x 1.88 in |
| Special Features | Angled, 4-Position |
| Standard | UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280 |
| Type | Plug;Straight |
| UNSPSC | 39121402 |
| UPC | 78358501524 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 250;250 Volt |
| Voltage Rating Description | 250 V |
| Wattage | 7 W |
| Wire Size | #12 AWG to #4 AWG |
