| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBL9450A |
| Additional Information | Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C |
| Amperage Rating | 50 A |
| Application | Heavy Duty |
| Approval | UL 498, CSA |
| Base Price | 0.0000 |
| Brand ID | WIRING DEVICE-KELLEMS |
| Brand Name | Hubbell Wiring Device-Kellems |
| Carton Quantity | 5 | |
| Catalog Number | HBL9450A |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | 14-50R |
| Connection | Back and Side Wired Screw Terminals |
| CountryOfOrigin | US |
| Current Amperage Rating | 50 A |
| Current Rating | 50 A;50 Amp |
| DDCATEGORY | 573 |

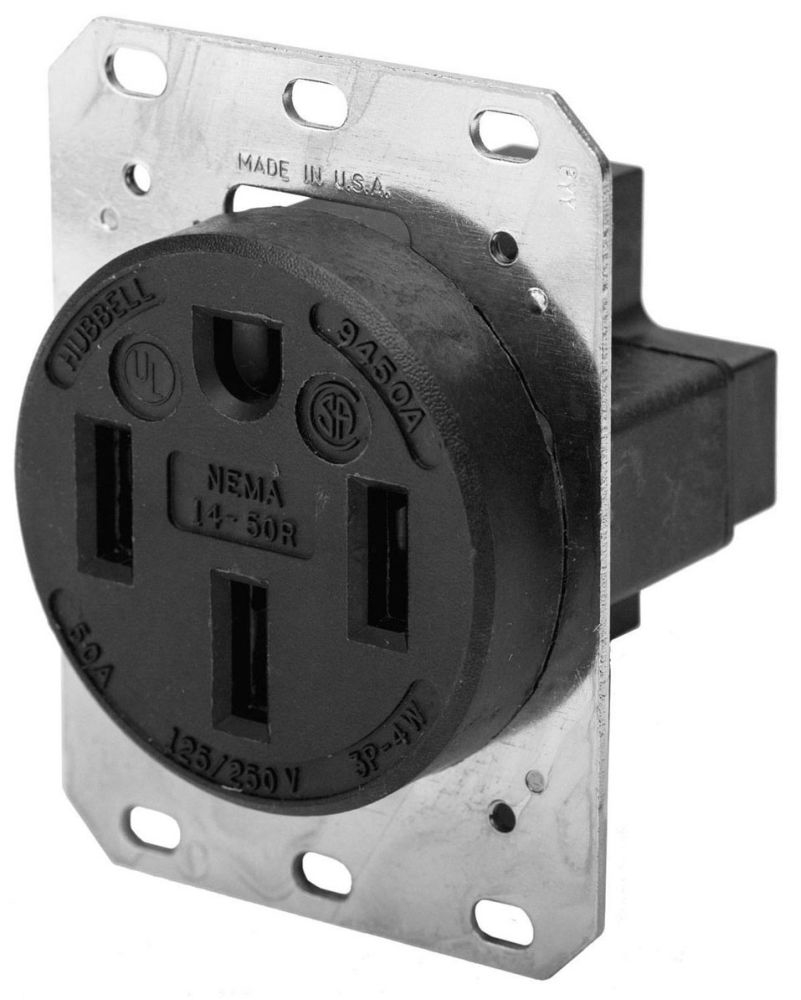

| Description Long | Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50R, Black, Single Pack. |
| Description Short | Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50R, Black, Single Pack. |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Catalog number, ratings and certifications molded in face;Sequenced contacts assure protection;One piece design power and ground contacts |
| Face Outer Diameter | 2.44 Inch |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Grounding |
| Horsepower Maximum | 3 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | RCPT, 3P4W, 50A 125/250V, 14-50R;GRD RCPT NEMA14-50R |
| Item Number | 01531 |
| Item Type | Single |
| Long Description | STRAIGHT BLADE RECEPTACLE, SINGLE TYPE; REINFORCED THERMOPLASTIC POLYESTER MATERIAL; BLACK COLOR; 14-50R CONFIGURATION; 4 WIRE(S); UL 498, CSA APPROVAL; 125/250 VOLT VOLTAGE RATING; 50 AMP CURRENT RATING; GROUNDING; 3 POLE(S); 1.81 INCH MOUNTING DEPTH |
| MSDS Form Number | * |
| Material | Thermoplastic;Reinforced Thermoplastic Polyester |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount |
| Mounting Depth | 1.81 Inch |
| NEMA Rating | 14-50R |
| Noun | * |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75C, minimum -40C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Phase | 1 |
| Product Description | RCPT, 3P4W, 50A 125/250V, 14-50R |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | HUBW |
| Size | 3.28 in x 2.75 in x 2.44 in |
| Special Features | Standard |
| Standard | CSA Certified;NEMA WD-6 Compliant;UL Listed File E2186 |
| Sub Brand | Straight Blade Devices |
| Type | Receptacle;Single |
| UNSPSC | 39121406 |
| UPC | 78358501531 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125/250;125 V V;125/250 Volt |
| Voltage Rating Description | 125/250 V |
| Wattage | 12,500 W |
| Wire Size | #12 AWG to #4 AWG |
