HUBW HBLDS10SSPJ

DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS

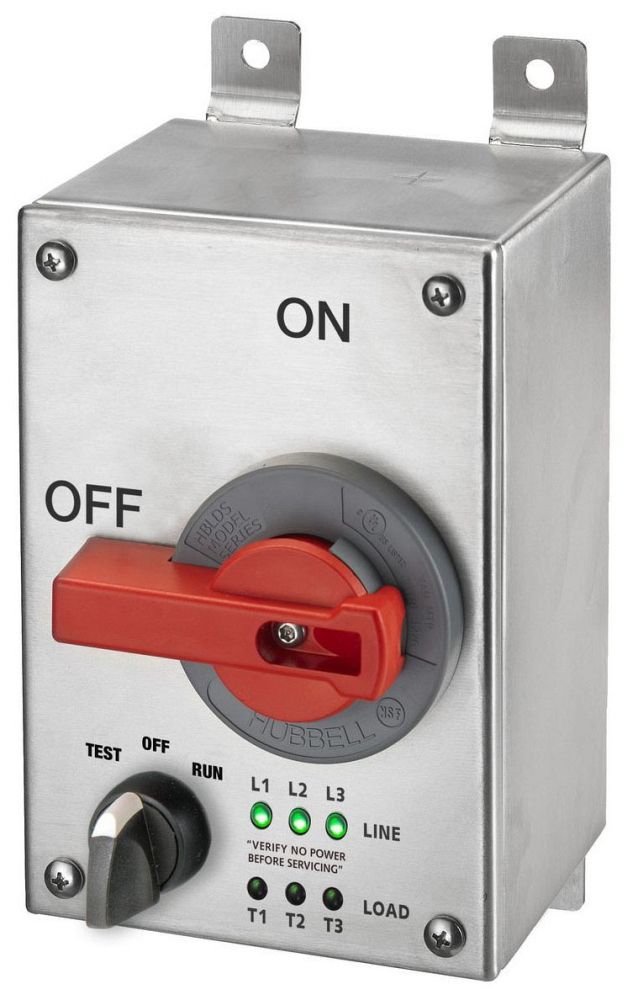

DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG

Mouse over image to zoom, click to enlarge

Description:
DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG

UPC:  78358564029

Part Number: HBLDS10SSPJ

UNSPSC: 39122233

Status:  UNKNOWN

Retail Price:  $1,959.00 / EA
Your Price:  $1,198.67 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS10SSPJ
Action Snap
Actuator Lever
Amperage Rating 100 A
Application LED indicators / Jog Switch / Labelless
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Catalog Number HBLDS10SSPJ
Connection Terminal Screws
Contact Configuration Two Position
Contact Rating 100A
CountryOfOrigin PL
Current Amperage Rating 100 A
DDCATEGORY 1722
Description Long DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG
Description Marketing Copy NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect? and meet these code requirements.
Description Short DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG
EU RoHS Indicator Contact Manufacturer
Enclosure Stainless Steel
FV Current Amperage Rating 100 A
Families 1722
Family Description Non-Fusible Rotary Safety Switches
InvoiceDescription DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG;100A DIS-SW
Material Stainless Steel
Mounting Mounting Feet
Number Of Poles 3
Operating Temperature Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Product Description DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG
Product Keywords WEBREADY
Product Name DISCONNECT, UN-F, 100A, 4X, SS, LED, JOG
ProductLine HUBW
Series Circuit-Lock
Size Standard Sized Product
Special Features LED Indicators, Jog Switch
Standard cULus
Sub Brand InsightCircuit-Lock
Type Disconnect, Unfused
UNSPSC 39122233
UPC 78358564029
Voltage Rating 600 V
Wattage 60,000 W
