HUBW HBLDS10SSR

SLOPED DISCONNECT, 100A UNFUSED, 4X, SS

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
SLOPED DISCONNECT, 100A UNFUSED, 4X, SS

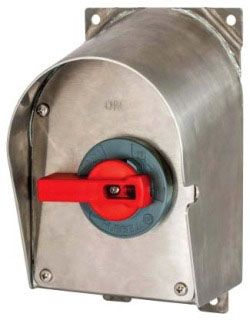

Mouse over image to zoom, click to enlarge

Description:
SLOPED DISCONNECT, 100A UNFUSED, 4X, SS

UPC:  78358554163

Part Number: HBLDS10SSR

UNSPSC: 39121521

Status:  UNKNOWN

Retail Price:  $2,683.00 / EA
Your Price:  $1,320.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS10SSR
Application Labelless
Base Price 0.0000
Connection Pressure Screw Terminals
CountryOfOrigin PL
Current Amperage Rating 100 A
Current Rating 100;100
DDCATEGORY 572
Description Long Disconnect Switch Sloped Enclosure, 100A 600V AC, Non-Fused, NEMA 4X
Description Marketing Copy NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements.
Description Short Disconnect Switch Sloped Enclosure, 100A
EU RoHS Indicator Contact Manufacturer
Enclosure Type Type 4X, IP69k
FEATURES Bullets Accepts up to 2 Auxiliary contacts;Certified by NSF for hygiene in food processing applications;Formed in nonporous 304 stainless steel;Highly visible red handle which meets OSHA Lockout/Tagout capabilities;IP69k and Type 4X,12K water ingress protection
FV Current Amperage Rating 100 A
Families 572
Family Description General Purpose Switches
InvoiceDescription SLOPED DISCONNECT, 100A UNFUSED, 4X, SS;100A SLOPED DISC SW
Mounting Screw Mount
Mounting Method Feet are fixed
Number Of Phases Three
Number Of Poles Three Pole
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75C,Min Continuous -40C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Power Rating 36000 W
Product Description SLOPED DISCONNECT, 100A UNFUSED, 4X, SS
Product Keywords WEBREADY
Product Name Disconnect Switches, Sloped Enclosure, 100A 600V AC, Non-Fused, NEMA 4X, Stainless Steel
ProductLine HUBW
Series Non-Fused
Size 11.41 in x 7.66 in x 6.1 in
Special Features Sloped Version
Standard UL508
Temperature Rating Minimum Continuous -40 Deg C without Impact
Terminals Terminal Screws
Type Of Motor Starter Disconnect Switches
UNSPSC 39121521
UPC 78358554163
Voltage Rating 600 V

Resources

CatalogNumber HBLDS10SSR
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
