HUBW HBLDS10SSRCP

SS DISC ,100A LED, 4X,LED, REP COVER

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
SS DISC ,100A LED, 4X,LED, REP COVER

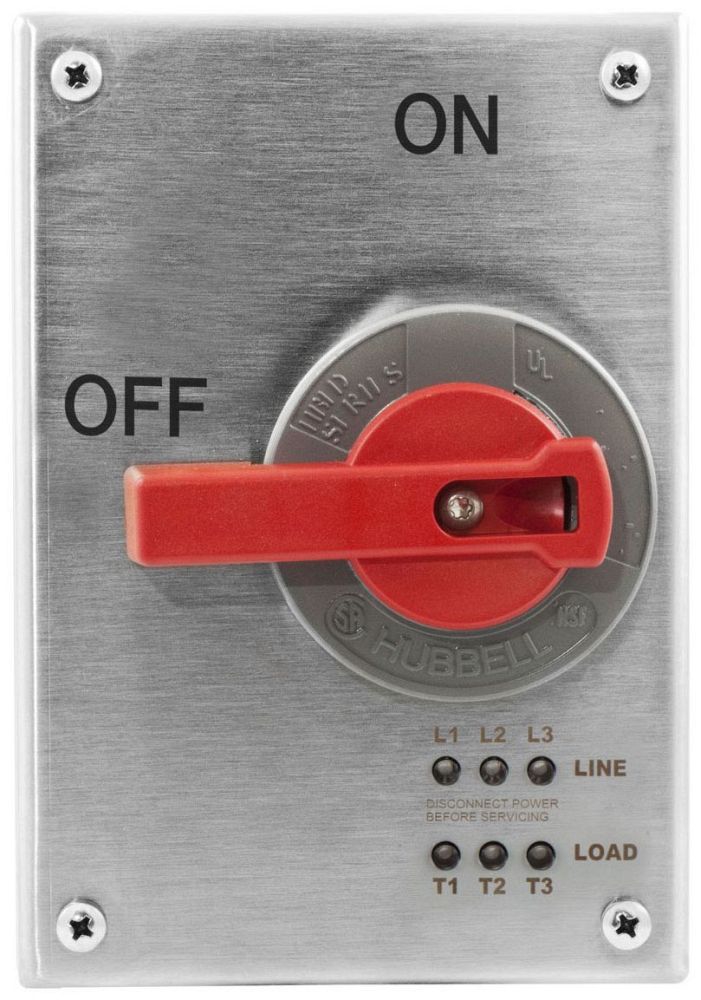

Mouse over image to zoom, click to enlarge

Description:
SS DISC ,100A LED, 4X,LED, REP COVER

UPC:  78358564046

Part Number: HBLDS10SSRCP

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $691.00 / EA
Your Price:  $340.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS10SSRCP
Action Snap
Actuator Lever
Amperage Rating 100 A
Application LED indicators / Labelless
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Catalog Number HBLDS10SSRCP
Connection Terminal Screws
Contact Configuration Two Position
Contact Rating 100A
CountryOfOrigin US
Current Amperage Rating 100 A
DDCATEGORY 1721
Description Long SS DISC ,100A LED, 4X,LED, REP COVER
Description Marketing Copy NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect? and meet these code requirements.
Description Short SS DISC ,100A LED, 4X,LED, REP COVER
EU RoHS Indicator Contact Manufacturer
Enclosure Stainless Steel
FEATURES Bullets Six highly visible integral phase identification LEDs for use on 3 Phase Y system;Secondary confirmation of isolation of power;Certified by NSF;Highly visible red handle meets OSHA LO/TO capabilities;Accepts up to 2 Auxiliary contacts
FV Current Amperage Rating 100 A
Families 1721
Family Description Fusible Rotary Safety Switches
InvoiceDescription SS DISC ,100A LED, 4X,LED, REP COVER;DIS-SW COVER
Material Stainless Steel
Mounting Screw Mount
Number Of Poles 3
Operating Temperature Max Continuous- 67 Degrees C, Minimum- -40 Without Impact
Product Description SS DISC ,100A LED, 4X,LED, REP COVER
Product Keywords WEBREADY
Product Name SS DISC ,100A LED, 4X,LED, REP COVER
ProductLine HUBW
Series Circuit-Lock
Size Standard Sized Product
Special Features LED Indicators
Standard cULus
Sub Brand InsightCircuit-Lock
Type Disconnect, Unfused
UNSPSC 39122205
UPC 78358564046
Voltage Rating 600 V
