| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBLDS20 |
| Additional Information | Handle Finish Red/Yellow |
| Amperage Rating | 200 A |
| Application | Labelless |
| Approval | UL 98 |
| Base Price | 0.0000 |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBLDS20 |
| Circuit Configuration | 1 or 3-Phase |
| Commerce Sector | Construction Materials |
| Commodity Code | 41520 |
| Commodity Description | Disconnect Motor Switches & Accessories |
| Conductor Material | Aluminum |
| CountryOfOrigin | FR |
| Current Amperage Rating | 200 A |
| Current Rating | 200 Ampere |
| DDCATEGORY | 1722 |

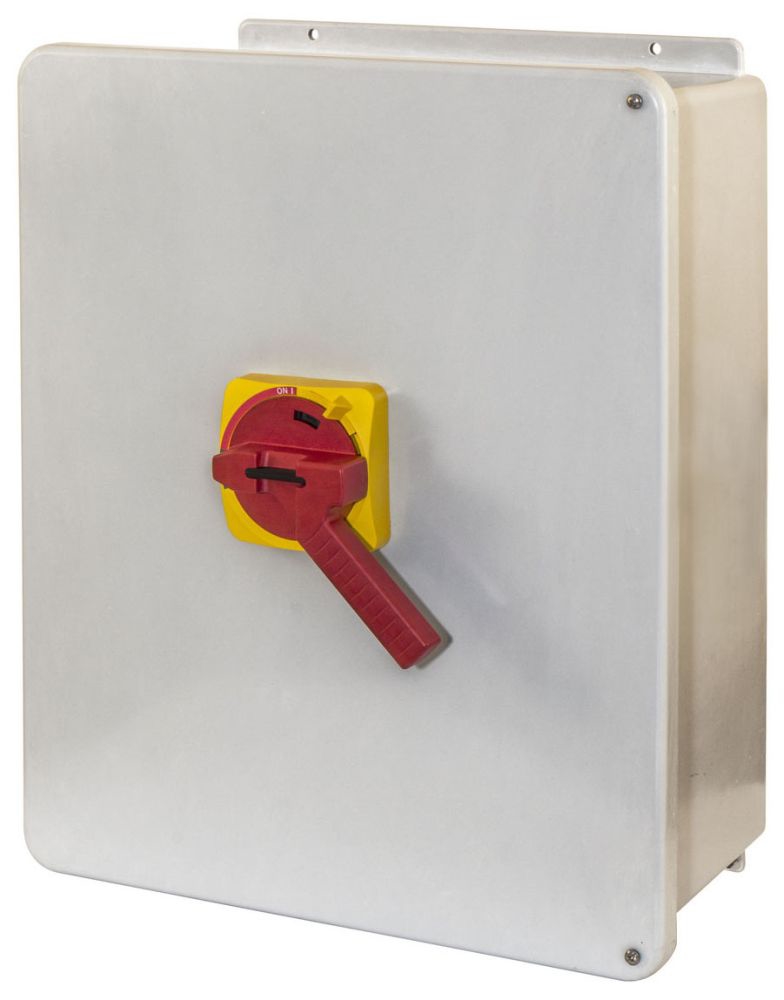

| Description Long | Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure |
| Description Marketing Copy | Hubbells 200A Disconnect Switches are the latest addition to the Circuit-Lock family of switched enclosures. The enclosures are designed to withstand harsh environments with exposure to water, chemicals, oils and frequent washdowns. Available in non-metallic or stainless steel, the enclosures are UL Listed Type 4X and 12. |
| Description Short | Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure |
| Directory | CIS |
| Enclosure Material | Flame Retardant Polyester |
| Enclosure Type | NEMA 4X/12 |
| FEATURES Bullets | OSHA Compliant Lockout/Tagout Handle;Type 4X, 12;Highly Visible Red Rotary Handle;Unable to Open the Cover when ON;Cover Locked when Energized |
| FV Current Amperage Rating | 200 A |
| Families | 1722 |
| Family Description | Non-Fusible Rotary Safety Switches |
| Fuse Type | Class J |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DISCONNECT, 200A UNFUSED, 4X;UNFUSED DIS-SW |
| Item Number | 58024 |
| Long Description | ENCLOSED DISCONNECT SWITCH, NON-FUSIBLE TYPE; 17.68 INCH W X 11.12 INCH D X 21.68 INCH H SIZE; ALUMINUM CONDUCTOR MATERIAL; FLAME RETARDANT POLYESTER ENCLOSURE MATERIAL; UL 98 APPROVAL; 600 VAC VOLTAGE RATING; 200 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Noun | * |
| Operator Type | Lockable Red Plastic Rotary Handle |
| Pallet Quantity | 9 |
| Power Rating | 1.5 HP at 120 VAC 1-Phase, 3 HP at 240 VAC 1-Phase, 7.5 HP at 240 VAC 3-Phase, 15 HP at 480/600 VAC 3-Phase |
| Product Description | DISCONNECT, 200A UNFUSED, 4X |
| Product Keywords | WEBREADY |
| Product Name | Disconnect Switches, 3-Pole, 200A 600VAC, Unfused, Non-Metallic NEMA 4X Enclosure |
| ProductLine | HUBW |
| Series | Non-Fused |
| Size | 17.68 Inch W x 11.12 Inch D x 21.68 Inch H |
| Type | Disconnect Switches;Non-Fusible |
| UNSPSC | 39122205 |
| UPC | 78358558024 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 VAC |
