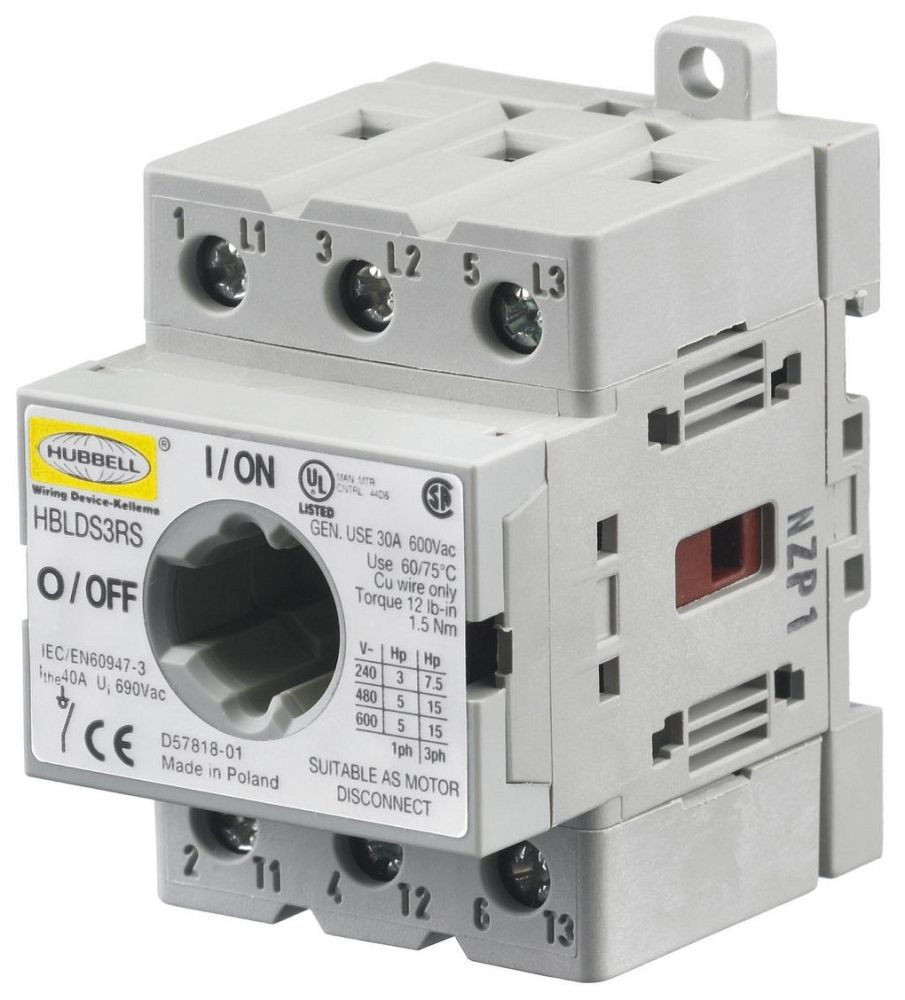

HUBW HBLDS33ACRS

REPLACEMENT SW. FOR HBLDS33ACNK

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
REPLACEMENT SW. FOR HBLDS33ACNK

Mouse over image to zoom, click to enlarge

Description:
REPLACEMENT SW. FOR HBLDS33ACNK

UPC:  78358539292

Part Number: HBLDS33ACRS

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $253.00 / EA
Your Price:  $155.27 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS33ACRS
Amperage Rating 30 A
Application For HBLDS33ACNK
Base Price 0.0000
Connection Terminal Screws
Contact Rating 30A
CountryOfOrigin DE
Current Amperage Rating 30 A
DDCATEGORY 1719
Description Long Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, For 30A 600V AC, Screw Terminals
Description Marketing Copy NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements.
Description Short Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, For 30A 600V AC, Screw Terminals
EU RoHS Indicator No
Environmental Conditions Indoor Dry unless protected by additional means
FEATURES Bullets Disconnect Switches;Industrial Grade;Replacement Switch;Three Pole
FV Current Amperage Rating 30 A
Families 1719
Family Description Non-Fusible Disconnect Safety Switches
Frequency Rating Maximum 60 Hz
Frequency Rating Minimum 60 Hz
Ingress Protection IP67
InvoiceDescription REPLACEMENT SW. FOR HBLDS33ACNK;DISCONNECT SW
Material Composite
Number Of Poles 3
Operating Temperature Maximum 167 F
Operating Temperature Minimum -40 F
Product Description REPLACEMENT SW. FOR HBLDS33ACNK
Product Keywords WEBREADY
Product Name Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, For 30A 600V AC, Screw Terminals
ProductLine HUBW
Series Fused;Non-Fused
Size Standard Sized
Special Features Standard Product
Standard UL 746C
Type Accessories
UNSPSC 39122205
UPC 78358539292

Resources

CatalogNumber HBLDS33ACRS
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
