| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBLDS3SSMQR2 |
| Application | Motor Starting w/o Overload Protection |
| Base Price | 0.0000 |
| Connection | Pressure Screw Terminals |
| CountryOfOrigin | PL |
| Current Rating | 30;30 |
| DDCATEGORY | 1719 |

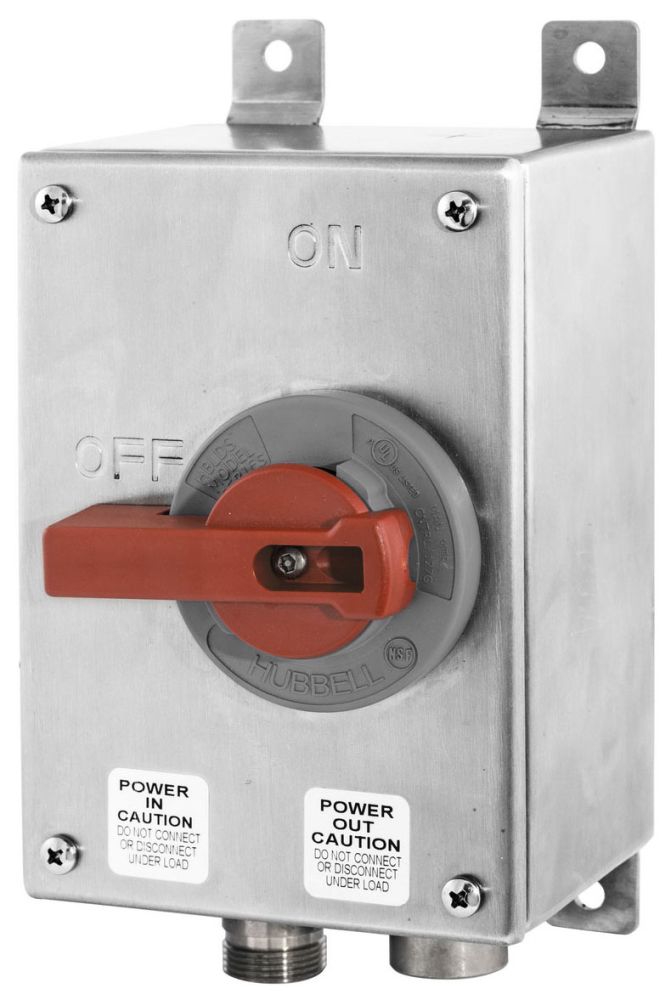

| Description Long | Disconnect Switches, Square top Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With 2) Pre-Wired LINKOSITY Receptacles |
| Description Short | Disconnect Switches, Square top Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With 2) Pre-Wired LINKOSITY Receptacles |
| EU RoHS Indicator | Contact Manufacturer |
| Enclosure Type | Type 4X |
| FEATURES Bullets | Cable Ratings: TC-ER, MTW, STOOW;Formed in nonporous 304 stainless steel;IP69k and Type 4X,12K water ingress protection;Labelless markings on the cover;Lockable Handle to Meet OSHA Lockout/Tagout Regulations |
| Families | 1719 |
| Family Description | Non-Fusible Disconnect Safety Switches |
| Horsepower Maximum | 15 |
| Ingress Protection | IP67 |
| InvoiceDescription | DISC,3P 30A,UNFUSED,N4X,SS,2 MTRQCK RCPT;100A DISCONN SW |
| Mounting | Screw Mount |
| Number Of Phases | Three |
| Number Of Poles | Three Pole |
| Performance | Electrical - Dielectric Voltage - 2,200V AC minimum for 1 minute;Electrical - Electrical Life - 6,000 cycles with load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max. continuous 75C, Min. continuous -40C;Mechanical - Impact Resistance - UL746C;Mechanical - Mechanical Life - 10,000 minimum cycles;Mechanical - Terminal Accommodations - 30A, #14 AWG Min. - #10 AWG Max;Mechanical - Terminal Torque - 30A, 20 inch pounds |
| Power Rating | 18000 W |
| Product Description | DISC,3P 30A,UNFUSED,N4X,SS,2 MTRQCK RCPT |
| Product Keywords | WEBREADY |
| Product Name | Disconnect Switches, Square top Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel, With 2) Pre-Wired LINKOSITY Receptacles |
| ProductLine | HUBW |
| Series | MotorQuick/LINKOSITY |
| Size | 8.5 in x 6 in x 4.12 in |
| Special Features | 2) MotorQuick Receptacles |
| Standard | Listed to UL 2238 and UL 50E;UL 508, Industrial Control Equipment File #E36355 |
| Temperature Rating | Minimum Continuous -40 Deg C without Impact |
| Terminals | Terminal Screws |
| Type Of Motor Starter | Disconnect Switches |
| UNSPSC | 39121521 |
| UPC | 78358537262 |
| Voltage Rating | 600 V |
