| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBLDS3SSR |
| Additional Information | Temperature Rating -40 to 75 Deg C |
| Application | Labelless |
| Approval | UL, CSA, NSF |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBLDS3SSR |
| Circuit Configuration | 3-Phase |
| Commerce Sector | Construction Materials |
| Commodity Code | 51100 |
| Commodity Description | General Purpose Switches |
| Connection | Pressure Screw Terminals |
| CountryOfOrigin | PL |
| Current Amperage Rating | 30 A |
| Current Rating | 30;30;30 Ampere |
| DDCATEGORY | 572 |

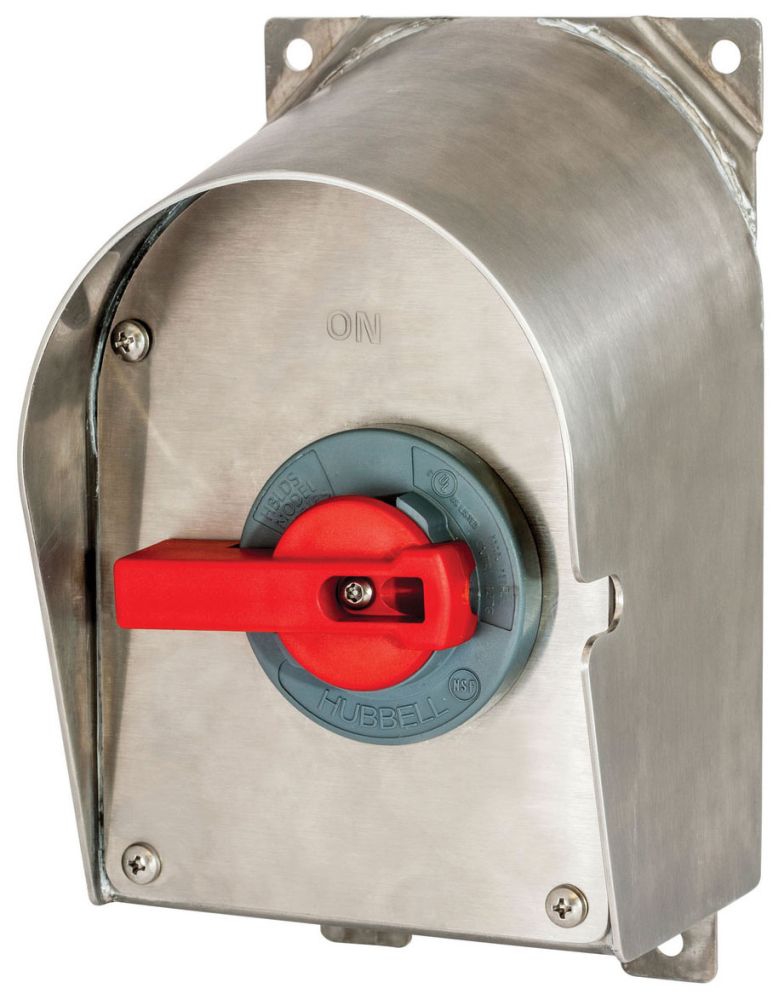

| Description Long | Disconnect Switches, Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel |
| Description Marketing Copy | NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements. |
| Description Short | Disconnect Switches, Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel |
| Directory | CIS |
| EU RoHS Indicator | Contact Manufacturer |
| Enclosure Material | Stainless Steel |
| Enclosure Type | Type 4X, IP69k;NEMA 4/4X/12, IP69 |
| FEATURES Bullets | Accepts up to 2 Auxiliary contacts;Certified by NSF for hygiene in food processing applications;Formed in nonporous 304 stainless steel;Highly visible red handle which meets OSHA Lockout/Tagout capabilities;IP69k and Type 4X,12K water ingress protection |
| FV Current Amperage Rating | 30 A |
| Families | 572 |
| Family Description | General Purpose Switches |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SLOPED DISCONNECT, 30A UNFUSED, 4X, SS;30A SLOPED DISC SW |
| Item Number | 54154 |
| Long Description | ENCLOSURE DISCONNECT SWITCH, NON-FUSIBLE TYPE; 5.41 INCH W X 4.5 INCH D X 8.6 INCH H SIZE; 3/4 INCH HUB SIZE; STAINLESS STEEL ENCLOSURE MATERIAL; UL, CSA, NSF APPROVAL; 600 V VOLTAGE RATING; 30 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Mounting | Screw Mount |
| Mounting Method | Feet are fixed |
| Noun | * |
| Number Of Phases | Three |
| Number Of Poles | 3 |
| Operator Type | Lockable Rotary Handle |
| Pallet Quantity | 100 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75C,Min Continuous -40C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Power Rating | 18000 W;1 HP at 120 VAC, 7.5 HP at 240 VAC, 15 HP at 480/600 VAC |
| Product Description | SLOPED DISCONNECT, 30A UNFUSED, 4X, SS |
| Product Keywords | WEBREADY |
| Product Name | Disconnect Switches, Sloped Enclosure, 30A 600V AC, Non-Fused, NEMA 4X, Stainless Steel |
| ProductLine | HUBW |
| Series | Non-Fused |
| Size | 8.6 in x 5.41 in x 4.92 in;5.41 Inch W x 4.5 Inch D x 8.6 Inch H |
| Special Features | Sloped Version |
| Standard | UL508 |
| Temperature Rating | Minimum Continuous -40 Deg C without Impact |
| Terminals | Terminal Screws |
| Type | Non-Fusible |
| Type Of Motor Starter | Disconnect Switches |
| UNSPSC | 39121521 |
| UPC | 78358554154 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600 V |
