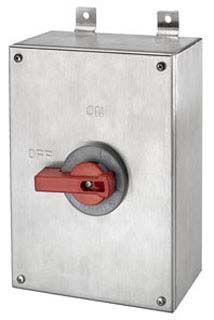

| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBLDS6SSAC |
| Action | Snap |
| Additional Information | Interrupt Rating 65 Kiloampere; Temperature Rating 75 Deg C; Includes Auxuliary Contact, 14 Gauge 304 Stainless Steel Base/Top, Valox Handle, 3/4 Inch Zinc Conduit Hub, Neoprene Enclosure Gasket/Shaft Seal, Stainless Steel Enclosure Screw; Application Ind |
| Amperage Rating | 60 A |
| Application | Labelless |
| Approval | UL, CSA, NSF |
| Base Price | 0.0000 |
| Brand Name | Circuit-Lock[R] |
| Catalog Number | HBLDS6SSAC |
| Commerce Sector | Construction Materials |
| Commodity Code | 31720 |
| Commodity Description | Non-Fusible Disconnect Safety Switches |
| Connection | Terminal Screws |
| Contact Configuration | Two Position |
| Contact Rating | 60A |
| CountryOfOrigin | PL |
| Current Amperage Rating | 60 A |
| Current Rating | 60 A;60 Ampere |
| DDCATEGORY | 1719 |
| Description Long | Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure, With Aux Contact |
| Description Marketing Copy | NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements. |
| Description Short | Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure, With Aux Contact |
| Directory | CIS |
| EU RoHS Indicator | Yes | |
| Enclosure | Type 4X, IP69k |
| Enclosure Material | Stainless Steel |
| Enclosure Type | NEMA 4/4X/12, IP69K |
| Environmental Conditions | NEMA 4X |
| FEATURES Bullets | Accepts up to 2 Auxiliary contacts;Certified by NSF for hygiene in food processing applications;Formed in nonporous 304 stainless steel;Highly visible red handle which meets OSHA Lockout/Tagout capabilities;IP69k and Type 4X,12K water ingress protection |
| FV Current Amperage Rating | 60 A |
| Families | 1719 |
| Family Description | Non-Fusible Disconnect Safety Switches |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 60 Hz |
| Fuse Type | Class J |
| Image Location | * Image |
| Industry | ELX |
| Ingress Protection | IP69K |
| InvoiceDescription | DISCONNECT, 60A UNFUSED, 4X, SS, W/AC;60A UNFUSED 4X SW |
| Item Number | 37257 |
| Long Description | ENCLOSED DISCONNECT SWITCH, NON-FUSIBLE TYPE; 7.66 INCH W X 6.1 INCH D X 11.41 INCH H SIZE; STAINLESS STEEL ENCLOSURE MATERIAL; UL, CSA, NSF APPROVAL; 120/200 TO 240/480/600 VAC VOLTAGE RATING; 60 AMPERE CURRENT RATING |
| MSDS Form Number | * |
| Material | Composite |
| Mounting | Mounting Feet |
| Mounting Method | Feet are fixed |
| Noun | * |
| Number Of Poles | 3 |
| Operating Cycles | 6,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Operator Type | Valox Shaft |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75C,Min Continuous -40C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Power Rating | 7.5 HP at 120 VAC 1-Phase, 15 HP at 200 to 240 VAC 1-Phase, 30 HP at 480 VAC 1-Phase, 30 HP at 200 to 240 VAC 3-Phase, 50 HP at 480/600 VAC 3-Phase |
| Product Description | DISCONNECT, 60A UNFUSED, 4X, SS, W/AC |
| Product Keywords | WEBREADY |
| Product Name | Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Stainless Steel, NEMA 4X Enclosure |
| ProductLine | HUBW |
| Series | Non-Fused |
| Size | 11.63 in x 7.3 in x 5.39 in;7.66 Inch W x 6.1 Inch D x 11.41 Inch H |
| Special Features | Standard Product with HBLAC1 Aux Contact |
| Standard | UL Listed |
| Standards RoHS Compliance Status | CM |
| Switch Type | Lever |
| Type | Disconnect Switches;Non-Fusible |
| UNSPSC | 39122205 |
| UPC | 78358537257 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 600;120/200 to 240/480/600 VAC |
| Wattage | 36000 W |
