HUBW HBLDS6SSRPAC

SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1

Mouse over image to zoom, click to enlarge

Description:
SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1

UPC:  78358564031

Part Number: HBLDS6SSRPAC

UNSPSC: 39122233

Status:  UNKNOWN

Retail Price:  $1,857.00 / EA
Your Price:  $1,136.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS6SSRPAC
Action Snap
Amperage Rating 60 A
Application LED indicators / Labelless
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Catalog Number HBLDS6SSRPAC
Connection Terminal Screws
Contact Configuration Two Position
Contact Rating 60A
CountryOfOrigin PL
Current Amperage Rating 60 A
DDCATEGORY 1721
Description Long SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1

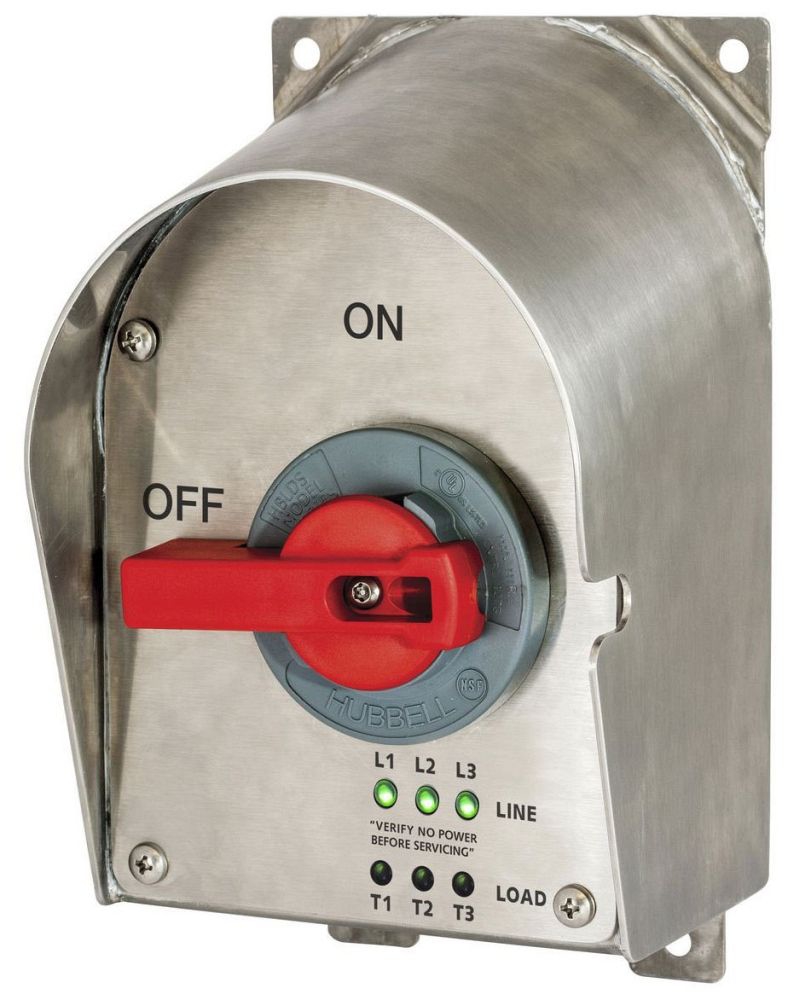

Description Marketing Copy Hubbells new 30A Circuit-Lock Disconnect with integral phase indication LEDs redefines the benchmark for safety by providing insight into the enclosure while in use. Six highly visible LEDs (3 line side/3 load side) display the electrical status of the switch by phase. This voltage detection feature significantly improves existing safety and maintenance procedures by visually providing critical information, such as a welded contact or dropped phase, to personnel prior to removing the enclosure cover. With an ever-growing focus on safety improvements, Hubbell inSIGHT TM disconnects provide a difference you literally can see.
Description Short SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1
EU RoHS Indicator Contact Manufacturer
Enclosure Stainless Steel
FEATURES Bullets Six highly visible integral phase identification LEDs for use on 3 Phase Y system;Secondary confirmation of isolation of power;Certified by NSF;Highly visible red handle meets OSHA LO/TO capabilities;15 degree sloped top support hygenic design
FV Current Amperage Rating 60 A
Families 1721
Family Description Fusible Rotary Safety Switches
Frequency Rating 60 Hz
InvoiceDescription SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1;60A DIS-SW
Material Stainless Steel
Product Description SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1
Product Keywords WEBREADY
Product Name SLOPED DISC ,60A UNFUSED, 4X,LED, HBLAC1
ProductLine HUBW
Series Circuit-Lock
Special Features LED Indicators, Auxiliary Contacts
Standard cULus
Sub Brand Circuit-Lock
Type Disconnect, Unfused
UNSPSC 39122233
UPC 78358564031

Resources

CatalogNumber HBLDS6SSRPAC
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
