HUBW HBLDS6SSRRCP

SS SLOPED DISC, 60A LED, 4X REP COVER

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS

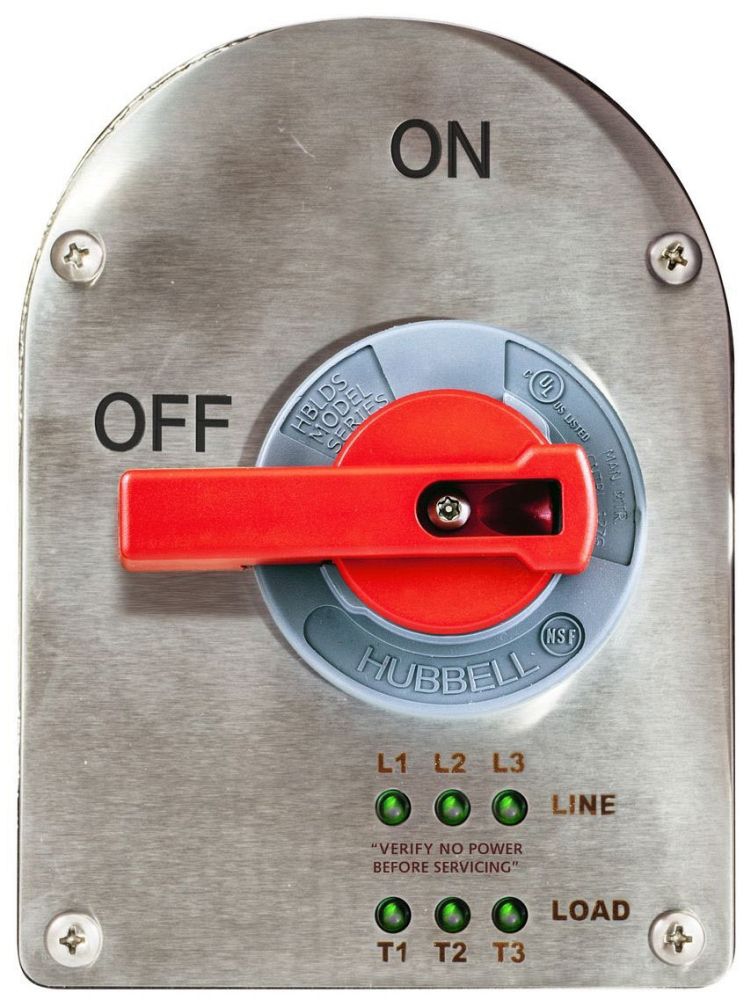

SS SLOPED DISC, 60A LED, 4X REP COVER

Mouse over image to zoom, click to enlarge

Description:
SS SLOPED DISC, 60A LED, 4X REP COVER

UPC:  78358564042

Part Number: HBLDS6SSRRCP

UNSPSC: 39122205

Status:  UNKNOWN

Retail Price:  $802.00 / EA
Your Price:  $394.67 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HBLDS6SSRRCP
Action Snap
Amperage Rating 60 A
Application LED indicators / Labelless
Base Price 0.0000
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Catalog Number HBLDS6SSRRCP
Connection Terminal Screws
Contact Configuration Two Position
Contact Rating 60A
CountryOfOrigin PR
Current Amperage Rating 60 A
DDCATEGORY 1721
Description Long SS SLOPED DISC, 60A LED, 4X REP COVER
Description Marketing Copy NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect? and meet these code requirements.
Description Short SS SLOPED DISC, 60A LED, 4X REP COVER
EU RoHS Indicator Contact Manufacturer
Enclosure Stainless Steel
FEATURES Bullets Six highly visible integral phase identification LEDs for use on 3 Phase Y system;Secondary confirmation of isolation of power;Certified by NSF;Highly visible red handle meets OSHA LO/TO capabilities;15 degree sloped top support hygenic design
FV Current Amperage Rating 60 A
Families 1721
Family Description Fusible Rotary Safety Switches
Frequency Rating 60 Hz
InvoiceDescription SS SLOPED DISC, 60A LED, 4X REP COVER;DIS-SW COVER
Material Stainless Steel
Product Description SS SLOPED DISC, 60A LED, 4X REP COVER
Product Keywords WEBREADY
Product Name SS SLOPED DISC, 60A LED, 4X REP COVER
ProductLine HUBW
Series Circuit-Lock
Special Features LED Indicators, Slope Top, Auxiliary Contacts
Standard cULus
Sub Brand Circuit-Lock
Type Disconnect, Unfused
UNSPSC 39122205
UPC 78358564042

Resources

CatalogNumber HBLDS6SSRRCP
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
