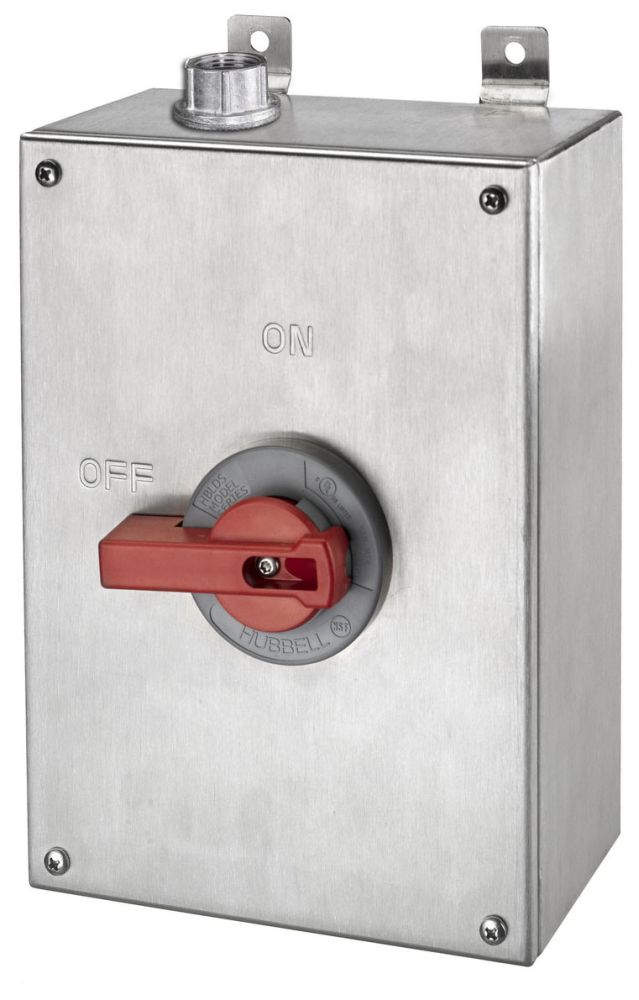

| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | HBLDS6SSVFD |
| Action | Snap |
| Amperage Rating | 60 A |
| Application | Labelless |
| Connection | Terminal Screws |
| Contact Rating | 10A 600V AC |
| CountryOfOrigin | PL |
| Current Amperage Rating | 60 A |
| Current Rating | 60 A |
| DDCATEGORY | 1719 |
| Description Long | Switches and Lighting Controls, Industrial Grade, Variable Frequency Drive, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure |
| Description Marketing Copy | NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motor and driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements. |
| Description Short | Switches and Lighting Controls, Industrial Grade, Variable Frequency Drive, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Gray, NEMA 4XEnclosure |
| EU RoHS Indicator | Contact Manufacturer |
| Enclosure | Type 4X, IP69k |
| Environmental Conditions | Indoor/Ourdoor |
| FEATURES Bullets | Internal frame automatically bonds all grounds;Molded-in conduit opening and field installed hub;Reversible interior accommodates top or bottom conduit opening |
| FV Current Amperage Rating | 60 A |
| Families | 1719 |
| Family Description | Non-Fusible Disconnect Safety Switches |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 60 Hz |
| InvoiceDescription | DISCONNECT, 60A UNFUSED, 4X, SS, W/AC2;60A DISCONN SW |
| Material | Composite |
| Mounting | Mounting Screws |
| Mounting Method | Feet are fixed |
| Number Of Poles | 2 |
| Operating Cycles | 10,000 |
| Operating Temperature Maximum | 167 F |
| Operating Temperature Minimum | -40 F |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75C,Min Continuous -40C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Stainless Steel - Feet are fixed;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions |
| Product Description | DISCONNECT, 60A UNFUSED, 4X, SS, W/AC2 |
| Product Keywords | WEBREADY |
| Product Name | Industrial Grade, Variable Frequency Drive, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, NEMA 4XEnclosure |
| ProductLine | HUBW |
| Series | Non-Fused |
| Size | 11.63 in x 7.3 in x 5.39 in |
| Special Features | With AC2 |
| Standard | UL Listed |
| Type | Disconnect Switches |
| UNSPSC | 39122205 |
| UPC | 78358537273 |
| Voltage Rating | 120 AC |
| Wattage | 36000 W |
