HUBW HXJ6W

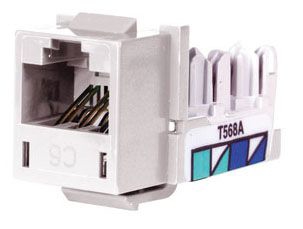

JACK, HXJ,CAT6,8POS,UNI A/B,WH

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
JACK, HXJ,CAT6,8POS,UNI A/B,WH

Mouse over image to zoom, click to enlarge

Description:
JACK, HXJ,CAT6,8POS,UNI A/B,WH

UPC:  66262082528

Part Number: HXJ6W

UNSPSC: 39121444

Status:  UNKNOWN

Retail Price:  $14.50 / EA
Your Price:  $11.52 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo HXJ6W
Additional Information RoHS Compliant; Overall Dimension 0.86 Inch x 0.67 Inch x 1.29 Inch; Contact Point Material Beryllium Copper; Withstand Voltage 1000 Volt AC 60 Hertz; Contact Resistance 100 Ohm; Temperature Rating -40 to 75 Deg C without Impact; Application IEEE 802.3ab
Application Telephone and Data Distribution Jack
Approval UL (Canada and US), CSA, ETLUS
Base Price 0.0000
Brand Name NEXTSPEED[R], XCELERATOR[TM]
Catalog Number HXJ6W
Category 6
Color White
Commerce Sector Construction Materials
Commodity Code 57210
Commodity Description Outlets, Jacks, & Plates
Configuration RJ45
Connection Insulation Displacement Connector
Contact Beryllium Copper
Contact Resistance 100 Ohm
CountryOfOrigin US
DDCATEGORY 1151
Directory CIS
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Families 1151
Family Description Outlets, Jacks, & Plates
Image Location * Image
Industry ELX
InvoiceDescription JACK, HXJ,CAT6,8POS,UNI A/B,WH;CAT6 8POS JACK
Item Number 82528
Long Description MODULAR JACK, MODULAR TYPE; HIGH IMPACT THERMOPLASTIC MATERIAL; WHITE COLOR; RJ45 CONFIGURATION; UL (CANADA AND US), CSA, ETLUS APPROVAL; KEYSTONE, SNAP-FIT MOUNTING; 6 CATEGORY; NEXTSPEED[R], XCELERATOR[TM] BRAND; ROHS COMPLIANT
MSDS Form Number *
Material High Impact Thermoplastic
Model HXJ6
Mounting Keystone;Keystone, Snap-Fit
Noun *
Product Description JACK, HXJ,CAT6,8POS,UNI A/B,WH
Product Keywords WEBREADY
Product Name RJ jack and module
ProductLine HUBW
Size Standard Sized Product
Special Features Standard Product
Standard ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component
Temperature Rating Maximum Per TIA
Temperature Rating Minimum Per TIA
Type Xcelerator Category 6, 5e, 3 and USOC Jacks;Modular
UNSPSC 39121444
UPC 66262082528
Vendor Name HUBBELL PREMISE W/D
Vendor Number 662620
Vendor Short Name HUB-P
Withstand Voltage 1000V RMS, 1414V DC

Resources

CatalogNumber HXJ6W
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
