| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | IG4700A |
| Additional Information | Wire Size 18 to 10 AWG (Solid/stranded Copper); Contact Material Brass; Temperature Rating -40 to 75 Deg C; Applicable Standard Federal Specification WC-596 |
| Amperage Rating | 15 A |
| Application | Heavy Duty Industrial |
| Approval | UL 498, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Hubbell Wiring Device-Kellems;Twist-Lock [R], SpikeShield [R] |
| Catalog Number | IG4700A |
| Color | Orange |
| Commerce Sector | Construction Materials |
| Commodity Code | 51200 |
| Commodity Description | Receptacles & Surge Protectors |
| Configuration | L5-15R |
| Connection | Screw Terminals |
| Constructional Feature | Corrosion Resistant |
| CountryOfOrigin | PR |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A;15 Amp |
| DDCATEGORY | 573 |

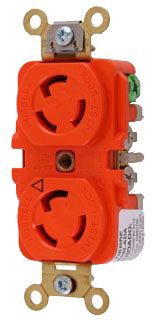

| Description Long | Locking Devices, Twist-Lock, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Orange. |
| Description Short | Locking Devices, Twist-Lock, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Orange |
| Dielectric Strength | Withstands 2,000V minimum |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Reinforced thermoplastic construction;Single piece, all brass contacts;Single point break-off tabs;Mounting strap tabs lock the body and base together |
| FV Voltage Rating Description | 125 V | |
| Families | 573 |
| Family Description | Receptacles & Surge Protectors |
| Ground Type | Isolated Ground |
| Horsepower Maximum | 0.5 |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | LKG DUP RCPT, IG, 15A 125V, L5-15R, OR;NEMA L5-15R ORG RCPT |
| Item Number | 00239 |
| Item Type | 15A Isolated Ground Duplex Receptacle |
| Long Description | LOCKING RECEPTACLE, DUPLEX TYPE; REINFORCED THERMOPLASTIC POLYESTER (BODY/FACE) MATERIAL; ORANGE COLOR; L5-15R CONFIGURATION; 3 WIRE(S); UL 498, CSA C22.2 APPROVAL; 125 VOLT AC VOLTAGE RATING; FLUSH MOUNTING; 15 AMP CURRENT RATING; ISOLATED GROUND |
| MSDS Form Number | * |
| Material | Thermoplastic;Reinforced Thermoplastic Polyester (Body/Face) |
| Material Mounting Hardware | Screw Mounting |
| Mounting | Screw Mount;Flush |
| NEMA Rating | L6-15R |
| Noun | * |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| OEM Brand Name | Hubbell Wiring Device-Kellems |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75C, Minimum -40C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 |
| Phase | 1 |
| Product Description | LKG DUP RCPT, IG, 15A 125V, L5-15R, OR |
| Product Keywords | WEBREADY |
| Product Name | Locking Devices, Twist-Lock, Isolated Ground Industrial, Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal, Orange |
| ProductLine | HUBW |
| Size | 3.29 in x 1.70 in x 1.17 in |
| Special Features | Isolated Ground |
| Standard | Listed to UL 498 |
| Sub Brand | Twist-Lock Devices |
| Type | Traditional Duplex;Duplex |
| UNSPSC | 39121406 |
| UPC | 78358500239 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
| Voltage Rating | 125 V;125 Volt AC |
| Voltage Rating Description | 125 V |
| Wattage | 1,875 W |
| Wire Size | #18 AWG to #10 AWG |
| Wiring | Back, Side |
