HUBW MB2003W

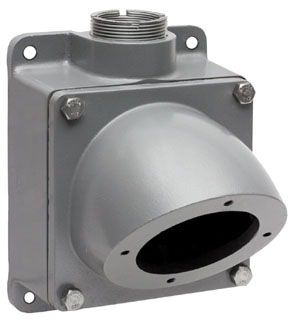

"PS, INS, 4WAY BOX, 200A, 2"" HUB, ALUM"

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
"PS, INS, 4WAY BOX, 200A, 2"" HUB, ALUM"

Mouse over image to zoom, click to enlarge

Description:
"PS, INS, 4WAY BOX, 200A, 2"" HUB, ALUM"

UPC:  78358501164

Part Number: MB2003W

UNSPSC: 39121332

Status:  UNKNOWN

Retail Price:  $747.00 / EA
Your Price:  $459.00 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo MB2003W
Application Metallic
Approval UL 1686, CSA
Base Price 0.0000
Body Material Metallic
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Cable Entry Through Hub
Catalog Number MB2003W
Color Gray
Commerce Sector Construction Materials
Commodity Code 51500
Commodity Description Pin & Sleeve Devices
Construction Cast
CountryOfOrigin CN
DDCATEGORY 576
Description Long "Heavy Duty Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, for 200A 2"" NPT Hub, Four Way Angled, Mounting Screws Included"
Description Marketing Copy Hubbell manufactures an extensive line of back boxes for use with UL 1686 Pin and Sleeve devices. Each back box is designed to give the user the maximum amount of wiring room while achieving grounding to metallic conduit.
Description Short "Insulgrip Back Box, for 200A 2"" NPT Hub, 4-Way Angled Cast Aluminum"
Device Rating 200 Ampere
Directory CIS
EU RoHS Indicator Yes
Families 576
Family Description Pin & Sleeve Devices
Hub Size 2 Inch NPT
Image Location * Image
Industry ELX
InvoiceDescription "PS, INS, 4WAY BOX, 200A, 2"" HUB, ALUM";200A 2NPT BACK BOX
Item Number 01164
Item Type Mounting Box
Knockouts "2"" NPT Hub"
Long Description BACK BOX, WITH ANGLE OPENING TYPE; IP67 PIN AND SLEEVE RECEPTACLE USED ON; 2 INCH NPT HUB SIZE; UL 1686, CSA APPROVAL; METALLIC BODY MATERIAL; 200 AMPERE DEVICE RATING; 4 MOUNTING LUG(S); MB MODEL
MSDS Form Number *
Material Aluminum
Material Mounting Hardware Mounting Screws
Model MB
Mounting Mounting Screws
Noun *
Number Of Mounting Lugs 4
Number Of Outlet Accepts 1-Device
OEM Brand Name Hubbell Wiring Device-Kellems
Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Operating Temperatures - Max. Continuous: 75 C;Min. Continuous: -40 C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
Product Description "PS, INS, 4WAY BOX, 200A, 2"" HUB, ALUM"
Product Keywords WEBREADY
Product Name "Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Back Box, For 200A 2"" NPT Hub, 4 Way Angled, Mounting Screws Included"
ProductLine HUBW
Series Back Boxes and Adapters
Size For 200 Amp Devices
Special Features Standard Product
Standard UL Listed
Sub Brand Insulgrip Pin and Sleeve
Temperature Range Limited By Device
Type Four-Way Back Box;With Angle Opening
UNSPSC 39121332
UPC 78358501164
Used On IP67 Pin and Sleeve Receptacle
Vendor Name HUBBELL WIRING DEVICE/KELLEMS
Vendor Number 783585
Vendor Short Name HUBW

Resources

CatalogNumber MB2003W
Full Image
Manufacturer Specification Sheet
MfrProductUrl

Package Information

SellPkgQty 1
