| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | PS0759NGY |
| Additional Information | Color Gray; Enclosure Rating NEMA 4/4x/12/13; Temperature Rating -30 to 225 Deg F; Flammability Rating UL 94 V-2 |
| Application | Fittings are to be used with PolyTuff I and PolyTuff II |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | PolyTuff [R] |
| Catalog Number | PS0759NGY |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Connection | Cap Nut |
| CountryOfOrigin | US |
| DDCATEGORY | 129 |

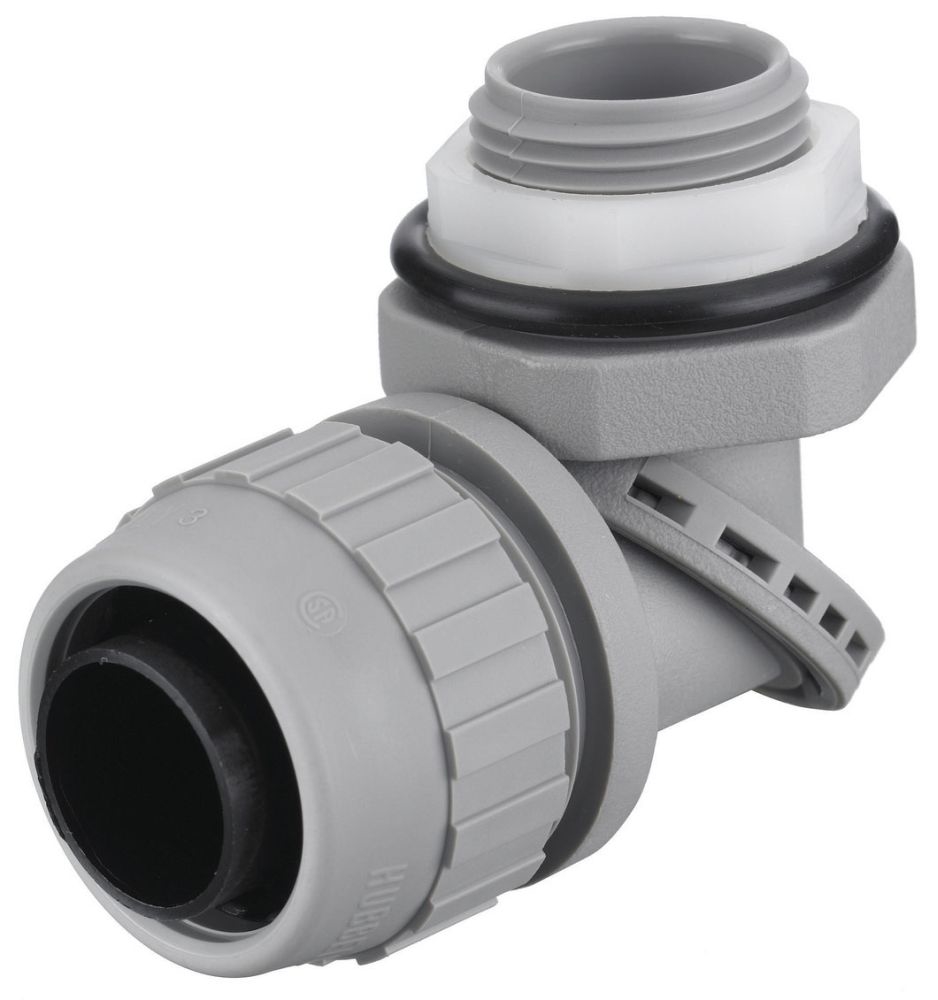

| Description Long | "Kellems Wire Management, Liquidtight System, SwivelLok Multi-Position Male Liquid Tight Connector, 3/4"", Non-Metallic, Gray" |
| Description Marketing Copy | "Liquidtight tubing is designed to house and permanently protect underground cable from moisture, grit, rodents and other environmental hazards that can damage the cable over time. The Kellems brands of liquidtight PolyTuff I conduit and PolyTuff II tubing feature non-metallic, PVC-based construction, avoiding the challenges of corrosion while providing high strength, superior flexibility and outstanding handleability. When compared to metals, they can be deployed in flexible directions, even accommodating tight turns. They can be cut cleanly with no damaging jagged edges, and help avoid costly fatigue and section separation issues. Sizes are available from ?"" to 2"" in diameter. Kellems liquidtight conduit pairs with nylon connectors that are completely non-conductive, corrosion resistant and easier to install than metallic liquidtight fittings. They feature a patented SwivelLok design that eliminates the need for separate straight, 45-degree and 90-degree fittings by providing a full range in one device. In addition, these Kellems non-metallic connectors have a unique design which allows UL 50 ratings of 3R, 4X, 12 and 13." |
| Description Short | "Kellems Wire Management, Liquidtight System, SwivelLok Multi-Position Male Liquid Tight Connector, 3/4"", Non-Metallic, Gray" |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Suitable for use in wet locations when a listed sealing ring is used between box and fitting |
| FEATURES Bullets | Neoprene O-ring provides liquidtight seal;Non integral ferrule provides conduit seal and pullout protection;Nylon compression nut has a tapered dome to tighten ferrule onto conduit;Swiveled to any position from straight to 90 |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Smooth |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "SWIVEL MALE L/T CONN, 3/4"", NM, GY";3/4 SWVL M L/T CONN |
| Item Number | 33915 |
| Long Description | LIQUIDTIGHT CONDUIT CONNECTOR, MULTI-POSITION MALE TYPE; NYLON (BODY, COMPRESSION NUT), NEOPRENE (SEALING RING, O-RING) MATERIAL; NON-METALLIC LIQUIDTIGHT CONDUIT USED ON; UL, CSA APPROVAL; 3/4 INCH TRADE SIZE; POLYTUFF [R] BRAND; COLOR GRAY |
| MSDS Form Number | * |
| Material | Nylon;Nylon (Body, Compression Nut), Neoprene (Sealing Ring, O-Ring) |
| Mounting | Between Enclosure and Conduit |
| NEMA Rating | 12;13;4X |
| Noun | * |
| Pallet Quantity | 3640 |
| Performance | Environmental - Flammability - UL 94X-2;Environmental - Operating Temperature - 30F to +225F (34C to +107C) |
| Product Description | "SWIVEL MALE L/T CONN, 3/4"", NM, GY" |
| Product Keywords | WEBREADY |
| Product Name | "Kellems Wire Management, Liquidtight System, SwivelLok Multi-Position Male Liquid Tight Connector, 3/4"", Non-Metallic, Gray" |
| Product Type | PolyTuff SwivelLok Fittings |
| ProductLine | HUBW |
| Size | 3/4 in |
| Special Features | Standard Product |
| Standard | CSA Certified;UL Listed:UL50 Type 4X, 12 and 13 |
| Standards RoHS Compliance Status | CM |
| Temperature Rating Maximum | 225.000000000000000 F |
| Temperature Rating Minimum | -40.000000000000000 F |
| Trade Size | 3/4 Inch |
| Type | PolyTuff SwivelLok Non-Metallic Liquidtight Fittings;Multi-Position Male |
| UNSPSC | 39121420 |
| UPC | 78358533915 |
| Used On | Non-Metallic Liquidtight Conduit |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
