| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | RC101W |
| Action | Snap Switch |
| Actuator | Toggle |
| Additional Information | Temperature Rating -20 to 60 Deg C |
| Amperage Rating | 15 A |
| Application | Residential |
| Approval | UL, CSA |
| Brand Name | TradeSELECT [R] |
| Catalog Number | RC101W |
| Color | White |
| Commerce Sector | Construction Materials |
| Commodity Code | 51600 |
| Commodity Description | Combination Devices |
| Connection | Terminal Screws |
| Contact Configuration | Two Position |
| Contact Rating | 15A |
| CountryOfOrigin | CN |
| Current Amperage Rating | 15 A |
| Current Rating | 15 A |
| DDCATEGORY | 577 |

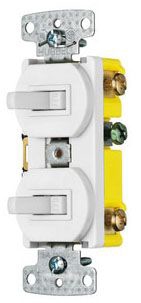

| Description Long | Two Single-Pole Toggle Combination Device, Residential, 15A 120V AC, Self Grounding, Side Wired |
| Description Short | Two Single-Pole Toggle Combination Device 15A |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| FEATURES Bullets | Elongated strap with continuous plaster ears;Quiet snap action mechanism;Self-grounding staple is standard |
| FV Current Amperage Rating | 15 A |
| FV Voltage Rating Description | 120 VAC |
| Families | 577 |
| Family Description | Combination Devices |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | COMBO, 2) 15A SP TOG, WH;15A SP TOG WH SWITCH |
| Item Number | 10979 |
| Long Description | COMBINATION SWITCH, DUPLEX TYPE; WHITE COLOR; UL, CSA APPROVAL; SIDE WIRING; NO WALL PLATE INCLUDED; 120 VOLT AC 15 AMP 1-POLE WITH SELF-GROUNDING TOGGLE SWITCH 1 TYPE; 120 VOLT AC 15 AMP 1-POLE WITH SELF-GROUNDING TOGGLE SWITCH 2 TYPE |
| MSDS Form Number | * |
| Material Mounting Hardware | Mounting Screws |
| Model | RC101 |
| Mounting | Mounting Screws |
| Noun | * |
| Number Of Poles | 1;2) 1 |
| Operating Cycles | 30,000 |
| Operating Temperature Maximum | 140 F |
| Operating Temperature Minimum | -4 F |
| Pallet Quantity | 6750 |
| Performance | Environmental - Operating temperature - -20C to 60C |
| Product Description | COMBO, 2) 15A SP TOG, WH |
| Product Keywords | WEBREADY |
| Product Name | Switches and Lighting Controls, Combination Devices, Residential Grade, 2) Single Pole Toggles, 15A 120V AC, Self Grounding, Side Wired, White |
| ProductLine | HUBW |
| Size | Standard Sized Product |
| Special Features | Standard Product |
| Standard | UL Listed |
| Switch 1 Type | 120 Volt AC 15 Amp 1-Pole with Self-Grounding Toggle |
| Switch 2 Type | 120 Volt AC 15 Amp 1-Pole with Self-Grounding Toggle |
| Type | 2) Switches;Duplex |
| UNSPSC | 39122231 |
| UPC | 88377810979 |
| Vendor Name | HUBBELL WIRING SYSTEMS |
| Vendor Number | 883778 |
| Vendor Short Name | HWS |
| Voltage Rating | 120 VAC |
| Voltage Rating Description | 120 VAC |
| Wall Plate Included | No |
| Wattage | 1800 W |
| Wiring | Side |
