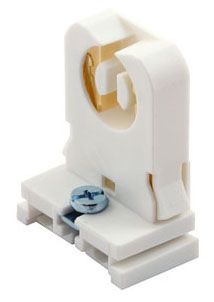

HUBW RL325

FL LAMPHLDR, PED TYPE, BIPIN, LOWPRO

Page Loading...
HUBBELL WIRING DEVICES/KELLEMS
FL LAMPHLDR, PED TYPE, BIPIN, LOWPRO

Mouse over image to zoom, click to enlarge

Description:
FL LAMPHLDR, PED TYPE, BIPIN, LOWPRO

UPC:  88377811234

Part Number: RL325

UNSPSC: 39111803

Status:  UNKNOWN

Retail Price:  $8.55 / EA
Your Price:  $4.20 / EA


Quantity  EA

Specifications

Manufacturer Name HUBBELL WIRING DEVICES/KELLEMS
MfgPartNo RL325
Additional Information Contact Material Brass
Amperage Rating 1.1 A
Application Medium B-Pin, T8 and T12
Approval UL, CSA
Base Price 0.0000
Body Material Plastic
Brand ID WIRING DEVICE-KELLEMS
Brand Name Hubbell Wiring Device-Kellems
Carton Quantity 10
Catalog Number RL325
Color White
Commerce Sector Construction Materials
Commodity Code 72840
Commodity Description Linear Fluorescent Lampholders
Connection Screw Terminals
CountryOfOrigin CN
Current Amperage Rating 1.1 A
Current Rating 1.1 A
DDCATEGORY 574
Description Long Fluorescent Lamp Holder, Bi-Pin, Pedestal Type, Low Profile
Description Short Fluorescent Lamp Holder, Bi-Pin, Pedestal Type, Low Profile
Directory CIS
EU RoHS Indicator Yes
Families 574
Family Description Plugs,Conn,Inlets,Outlets,Lampholdr
Frequency Rating 60 Hz
Image Location * Image
Industry ELX
InvoiceDescription FL LAMPHLDR, PED TYPE, BIPIN, LOWPRO;BIPIN LOWPRO LAMP HLDR
Item Number 11234
Item Type Fluorescent Lampholders
LAMP WATTAGE 660 Watt
Lamp Base Medium Bi-Pin
Lamp Size Medium B-Pin, T8 and T12
Lamp Type T8/T12 Fluorescent
Long Description LAMP HOLDER, PEDESTAL, LOW PROFILE TYPE; UL, CSA APPROVAL; 600 VOLT VOLTAGE RATING; SLIDE-ON/SNAP-IN WITH CAPTIVE NUT MOUNTING; PLASTIC BODY MATERIAL; T8/T12 FLUORESCENT LAMP TYPE; 660 WATT LAMP WATTAGE; 18 AWG, QUICK WIRE TERMINAL TYPE
MSDS Form Number *
Material Composite
Material Mounting Hardware Slide On, Snap-In With Captive Nut
Mounting Slide On, Snap-In With Captive Nut;Slide-On/Snap-In with Captive Nut
Noun *
OEM Brand Name Hubbell Wiring Device-Kellems
Product Description FL LAMPHLDR, PED TYPE, BIPIN, LOWPRO
Product Keywords WEBREADY
Product Name Lamp Holders and Sockets, Fluorescent Lamp Holder, Bi-Pin, Pedestal Type, Low Profile
ProductLine HUBW
Series Lampholders
Special Features Standard Product
Standard UL Listed
Sub Brand Lighting Control
Terminal Type 18 AWG, Quick Wire
Type Medium Bi-Pin, Fluorescent;Pedestal, Low Profile
UNSPSC 39111803
UPC 88377811234
Vendor Name HUBBELL WIRING SYSTEMS
Vendor Number 883778
Vendor Short Name HWS
Voltage Rating 600V AC kV;600 Volt
