| Manufacturer Name | HUBBELL WIRING DEVICES/KELLEMS |
| MfgPartNo | SEC50BA |
| Additional Information | Enclosure Rating IP66; Temperature Rating -22 to 225 Deg F |
| Application | Straight Male Connector;Hazardous Location |
| Approval | UL 514B, CSA |
| Base Price | 0.0000 |
| Catalog Number | SEC50BA |
| Color | Black |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 0.17-0.45 in (4.3-11.4 mm) |
| Cord Diameter | 0.17-0.45 in |
| Cord Size | 0.17 to 0.45 Inch |
| CountryOfOrigin | US |
| DDCATEGORY | 130 |
| Degree Of Protection IP | IP66 |
| Description Long | "Kellems Wire Management, Cord Connectors, European Style, .17-.45"", 1/2"", Black" |
| Description Short | "Kellems Wire Management, Cord Connectors, European Style, .17-.45"", 1/2"", Black" |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| FEATURES Bullets | Connector body is a one-piece design with machined threads;Low profile |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "CORD CONN, EURO, .17""-.45"", 1/2"" NPT, BK";1/2NPT EURO CORD CONN |
| Item Number | 01812 |

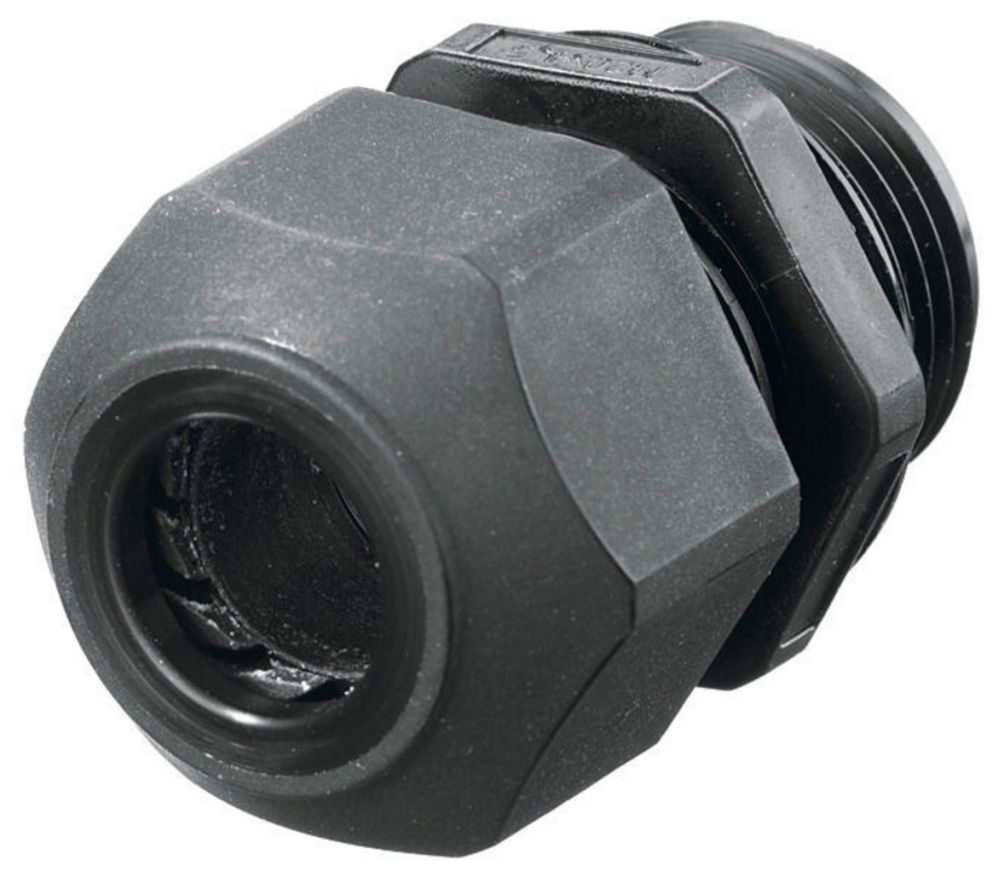

| Long Description | CORD CONNECTOR, STRAIGHT MALE TYPE; BLACK NYLON MATERIAL; 0.98 INCH DIAMETER X 1.7 INCH LENGTH SIZE; UL 514B, CSA APPROVAL; HAZARDOUS LOCATION APPLICATION; 1/2 INCH THREADED THREAD SIZE; 0.17 TO 0.45 INCH CORD SIZE; ENCLOSURE RATING IP66 |
| MSDS Form Number | * |
| Material | Black Nylon |
| Material Mounting Hardware | Locknut or Tapped Opening |
| Material Quality | Non-Metallic |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | IP66 |
| Noun | * |
| Number Of Conductors | Single |
| Operating Temperature Maximum | 225 F |
| Operating Temperature Minimum | -22 F |
| Pallet Quantity | 10800 |
| Performance | Environmental - Flammability - UL 94V-2;Environmental - Operating Temperatures - -22F to 225F (-30C to 107C);Environmental - Protection Class - IP66 Suitability |
| Product Description | "CORD CONN, EURO, .17""-.45"", 1/2"" NPT, BK" |
| Product Keywords | WEBREADY |
| Product Name | "Kellems Wire Management, Cord Connectors, European Style, .17-.45"", 1/2"", Black" |
| ProductLine | HUBW |
| Series | Low Profile NPT |
| Size | "1/2"" NPT" IN;0.98 Inch Diameter x 1.7 Inch Length |
| Special Features | Standard Product |
| Standard | UL Listed |
| Standards RoHS Compliance Status | CM |
| Thread Size | 1/2 Inch Threaded |
| Type | Connector;Straight Male |
| UNSPSC | 39121431 |
| UPC | 78358501812 |
| Vendor Name | HUBBELL WIRING DEVICE/KELLEMS |
| Vendor Number | 783585 |
| Vendor Short Name | HUBW |
